MICRONEDatasheet (PDF)

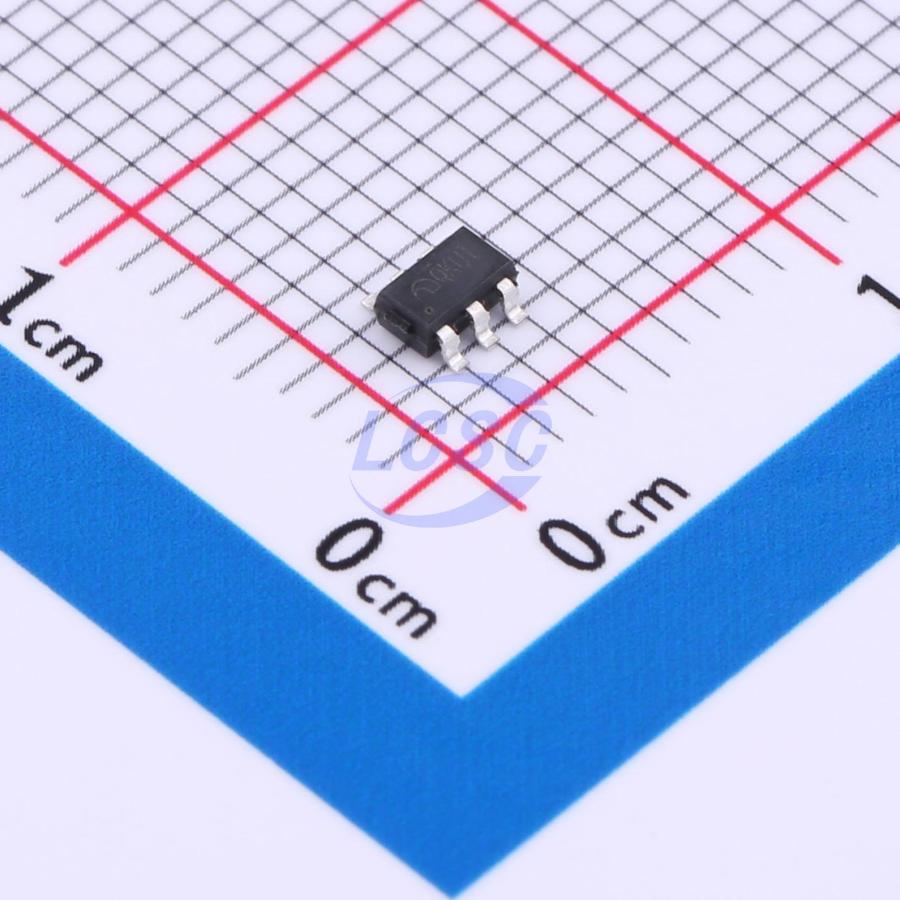

ME3121AM6G
Buck Switching Regulator IC Adjustable 0.6V~12V 1 Output 1A SOT-23-6
SOT-23-6RoHSActive
40V Input 1A Load Synchronous Buck DC-DC Converter
- Manufacturer
- MICRONE
- Manufacturer part #
- ME3121AM6G
- Store part #
- C2932938
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,790 in stock
#C2932938
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.16 | ₹155.80 |
| 50+ | ₹24.75 | ₹1,237.50 |
| 150+ | ₹22.01 | ₹3,301.50 |
| 500+ | ₹18.59 | ₹9,295.00 |
| 3,000+ | ₹16.99 | ₹50,970.00 |
| 6,000+ | ₹16.07 | ₹96,420.00 |
5 × ₹31.16
₹155.80
excl. GST
₹183.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME3121AM6G
₹155.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.7V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~12V
- Output Current
- 1A
- Quiescent Current
- 120uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
ME3121 is a high-efficiency synchronous rectification buck DC-DC converter IC with an input voltage up to 40V. It integrates two low on-resistance NMOSFET power switches — low-side switch RDS(on) of 170mΩ and high-side switch RDS(on) of 410mΩ — supporting up to 1A load current. Under light load, the IC operates in PFM mode; under heavy load, it operates in quasi-PWM mode with continuous current at a switching frequency of 1MHz. The IC employs an adaptive constant on-time control architecture for fast load transient response.
Applications
- Set-top box
- LCD TV
- DSL modem
- Digital TV
Key features
- Input voltage range: 4.7V ~ 40V
- Shutdown current: 8uA
- Quiescent current: 120uA
- On-resistance: low-side 170mΩ, high-side 410mΩ
- Switching frequency: 1MHz
- Reference voltage: 0.6V ± 2%
- Cycle-by-cycle current limiting: peak current limit 1.9A, valley current limit 1.4A
- Output short-circuit protection: hiccup mode
- Over-temperature protection: 160°C
