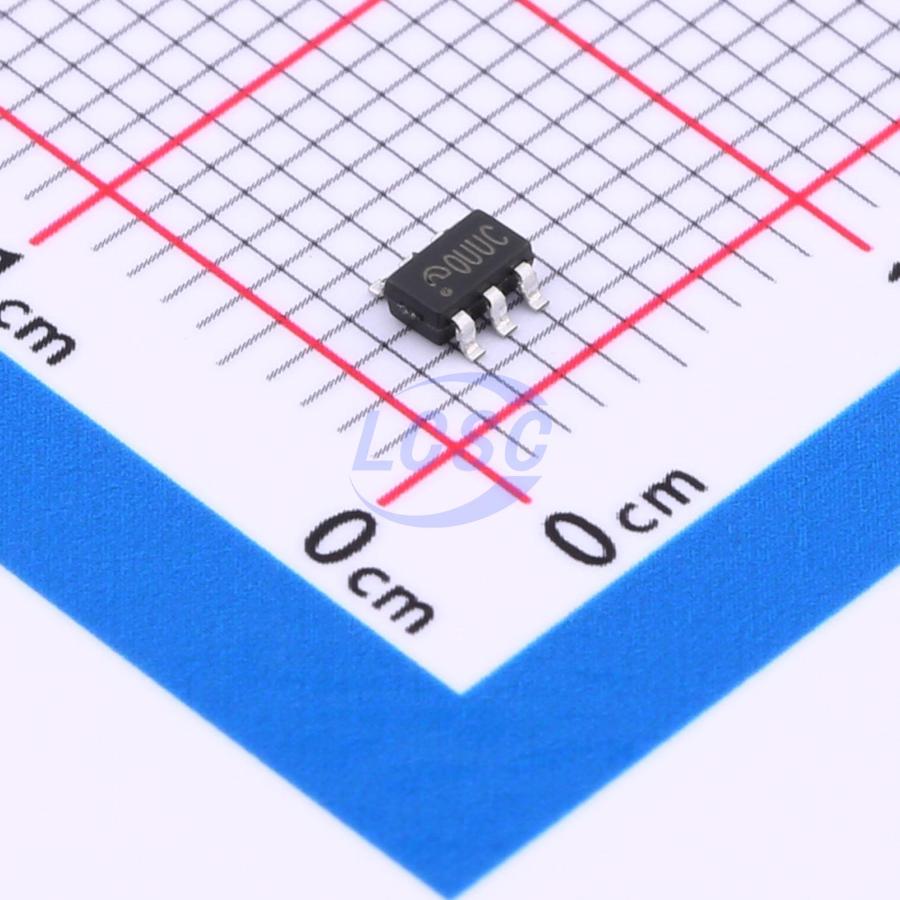

ME4315AM6G-2
Voltage Reference IC 1.21V~1.222V ±1% SOT-23-6
SOT-23-6RoHSActive
Constant Voltage and Constant Current Controller
- Manufacturer
- MICRONE
- Manufacturer part #
- ME4315AM6G-2
- Store part #
- C2926917
- Package / case
- SOT-23-6
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C2926917
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.82 | ₹79.10 |
| 50+ | ₹12.66 | ₹633.00 |
| 150+ | ₹11.09 | ₹1,663.50 |
| 500+ | ₹9.91 | ₹4,955.00 |
| 3,000+ | ₹8.22 | ₹24,660.00 |
| 6,000+ | ₹7.74 | ₹46,440.00 |
5 × ₹15.82
₹79.10
excl. GST
₹93.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME4315AM6G-2
₹79.10 for 5 + GST
Specifications
- Output Voltage
- 1.21V~1.222V
- Quiescent Current
- 850uA
- Tolerance
- ±1%
- Voltage - Supply
- 3V~36V
- Operating Temperature
- 0℃~+85℃
- Features
- Multi-channel reference output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
Applications
- Power adapter
- Battery charger
Key features
- Highly integrated solution designed for CV/CC SMPS applications
- Integrates a 1.21±1% voltage reference, a current sensing circuit, and two op-amps
- Voltage reference and one op-amp suited for power adapters and battery chargers
- Second low-voltage reference and op-amp serve as ideal current limiters for output current sensing
- 36V high input/output voltage rating eliminates the need for voltage-dropping Zener diodes in many applications, reducing system cost
- CV/CC control
- Precise internal voltage reference
- Minimal external components
- Easy compensation
- Wide operating voltage range: 3~36V
- Low operating current
- Few peripheral components, low overall system cost
