MICRONEDatasheet (PDF)

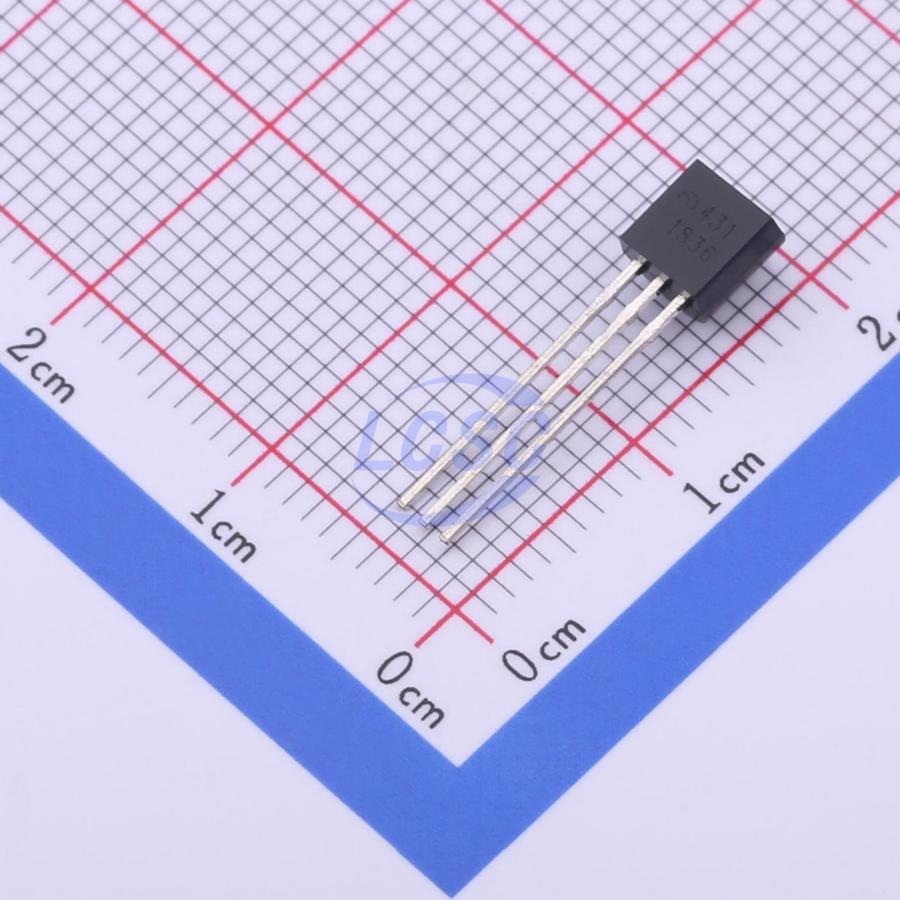

ME431ATG
2.5V~36V ±0.4% 40V 100mA Adjustable TO-92-3 Voltage Reference
TO-92-3RoHSActive
Adjustable Precision Shunt Regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME431ATG
- Store part #
- C428905
- Package / case
- TO-92-3
- Category
- Voltage Reference
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C428905
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.02 | ₹60.20 |
| 100+ | ₹4.76 | ₹476.00 |
| 300+ | ₹4.13 | ₹1,239.00 |
| 1,000+ | ₹3.66 | ₹3,660.00 |
| 5,000+ | ₹3.28 | ₹16,400.00 |
| 10,000+ | ₹3.10 | ₹31,000.00 |
10 × ₹6.02
₹60.20
excl. GST
₹71.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
ME431ATG
₹60.20 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.4%
- Voltage - Supply
- 40V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.211 g
Overview
The ME431 series ICs are three-terminal adjustable shunt regulators with guaranteed thermal stability over a full operation range. These ICs feature sharp turn-on characteristics, low temperature coefficient and low output impedance, which make them ideal substitutes for Zener diodes in applications such as switching power supply, charger and other adjustable regulators.
Applications
- Charger
- Voltage Adapter
- Switching Power Supply
- Graphic Card
- Precision Voltage Reference
Key features
- Programmable Precise Output Voltage from 2.5V to 36V
- Very Accurate Reference Voltage: Typical 0.15%
- High Stability under Capacitive Load
- Low Temperature Deviation: Typical 4.5mV
- Low Equivalent Full-range Temperature Coefficient with 20PPM/℃ Typical
- Low Dynamic Output Resistance: Typical 0.2Ω
- Sink Current Capacity from 1mA to 100 mA
- Low Output Noise
- Wide Operating Range of -40 to 150 °C
- TO-92, SOT23-3, SOT23 package
