MICRONEDatasheet (PDF)

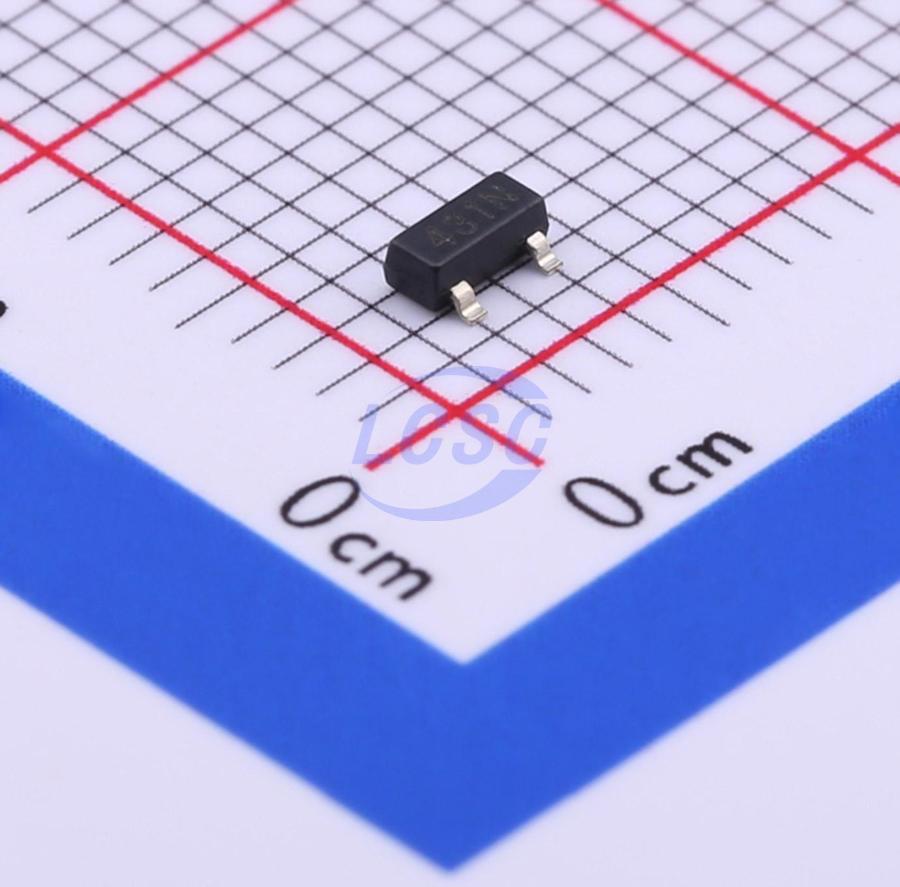

ME431NAXG
2.5V~36V ±0.4% 2.5V~36V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
Adjustable Precision Shunt Regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME431NAXG
- Store part #
- C427585
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,040 in stock
#C427585
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.80 | ₹96.00 |
| 200+ | ₹3.69 | ₹738.00 |
| 600+ | ₹3.08 | ₹1,848.00 |
| 3,000+ | ₹2.71 | ₹8,130.00 |
| 9,000+ | ₹2.38 | ₹21,420.00 |
| 21,000+ | ₹2.21 | ₹46,410.00 |
20 × ₹4.80
₹96.00
excl. GST
₹113.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME431NAXG
₹96.00 for 20 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.4%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.017 g
Overview
The ME431 series ICs are three-terminal adjustable shunt regulators with guaranteed thermal stability over a full operation range. These ICs feature sharp turn-on characteristics, low temperature coefficient and low output impedance, which make them ideal substitutes for Zener diodes in applications such as switching power supply, charger and other adjustable regulators. The ME431 voltage type is 40V. The output voltage can be set to any value between V_REF (2.5V) and the corresponding maximum cathode voltage. The ME431 precision reference is offered in two band gap tolerance: 0.4% and 1.0%.
Applications
- Charger
- Voltage Adapter
- Switching Power Supply
- Graphic Card
- Precision Voltage Reference
Key features
- Programmable Precise Output Voltage from 2.5V to 36V
- Very Accurate Reference Voltage: Typical 0.15%
- High Stability under Capacitive Load
- Low Temperature Deviation: Typical 4.5mV
- Low Equivalent Full-range Temperature Coefficient with 20PPM/℃ Typical
- Low Dynamic Output Resistance: Typical 0.2Ω
- Sink Current Capacity from 1mA to 100 mA
- Low Output Noise
- Wide Operating Range of -40 to 150 ℃
