MICRONEDatasheet (PDF)

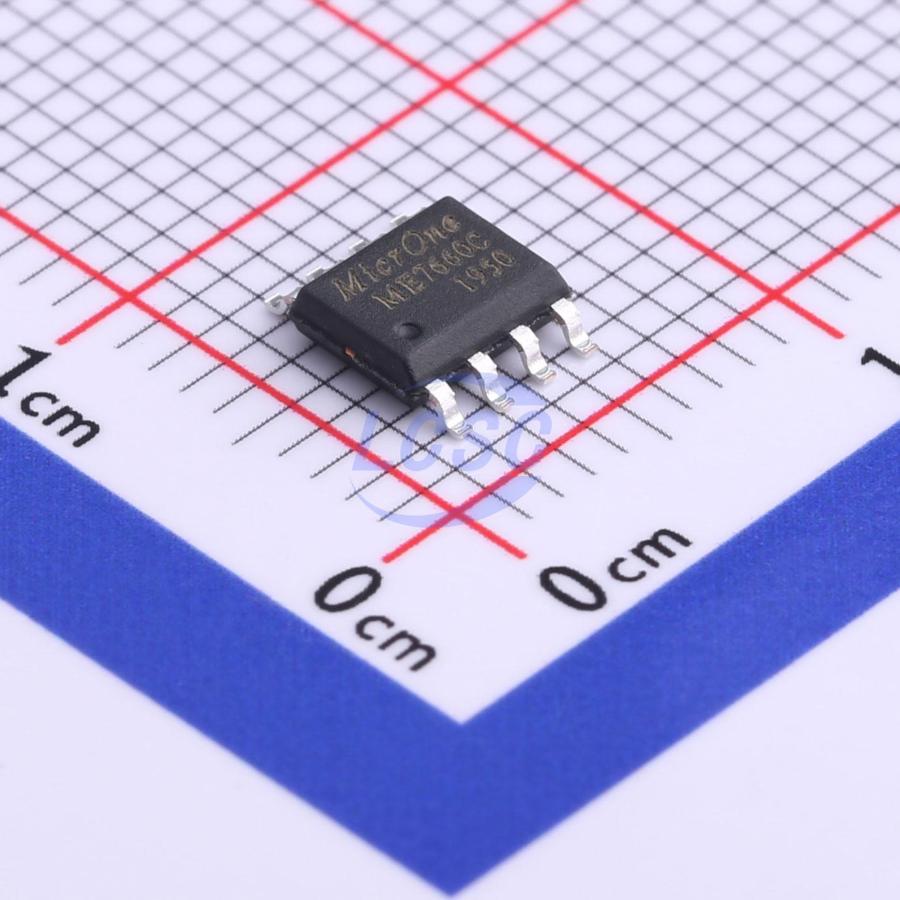

ME7660CS1G
Inverted 10kHz -10V~-2.5V SOP-8 Voltage Regulators - DC DC Switching Regulators
SOP-8RoHSActive
Charge Pump DC-DC Voltage Converter
- Manufacturer
- MICRONE
- Manufacturer part #
- ME7660CS1G
- Store part #
- C88402
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,475 in stock
#C88402
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.94 | ₹224.70 |
| 50+ | ₹35.11 | ₹1,755.50 |
| 150+ | ₹30.89 | ₹4,633.50 |
| 500+ | ₹25.63 | ₹12,815.00 |
| 3,000+ | ₹22.31 | ₹66,930.00 |
| 6,000+ | ₹20.90 | ₹1,25,400.00 |
5 × ₹44.94
₹224.70
excl. GST
₹265.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME7660CS1G
₹224.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Inverted
- Frequency - Switching
- 10kHz
- Features
- Cascade support
- Operating Voltage
- 2.5V~10V
- Output Voltage
- -10V~-2.5V
- Energy Efficiency
- 98%
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
ME7660C is a charge pump dc-to-dc voltage converter using AL-gate CMOS technology and optimization design. It converts a +2.5V to +10V input to a corresponding -2.5V to -10V output using only two external capacitors, eliminating inductors and their associated cost, size and EMI. The on-board oscillator operates at a nominal frequency of 10KHz. Operation below 10 KHz (for lower supply current applications) is possible by connecting an external capacitor from OSC to ground.
Applications
- LCD Display Module
- Specially designed LCD display module
- Instrument product
Key features
- Converts +5V Logic supply to ±5V
- Wide input voltage range: 2.5V~10V
- Efficient voltage conversion: 99.9%
- Good power efficiency: 98%
- Low power supply: 40uA @5V input
- Easy to use: only two external capacitors required
- Compatible with RS232 negative power supply standard
- High ESD protection: up to 3kV
- No Dx diode needed for high voltage operation
- Package: SOP8, DIP8
