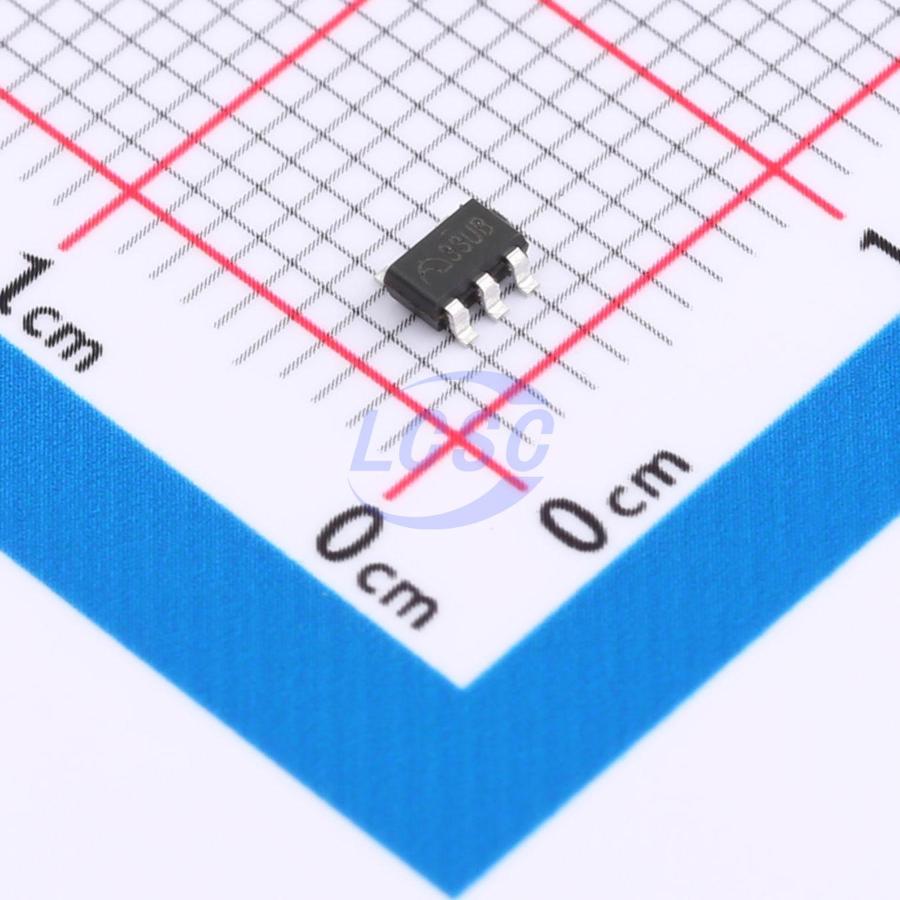

MEL7136BM5G-8001
1 1A 2.7V~18V SOT-23-5 LED Drivers ICs
Linear Adjustable Constant Current LED Driver
- Manufacturer
- MICRONE
- Manufacturer part #
- MEL7136BM5G-8001
- Store part #
- C2835807
- Package / case
- SOT-23-5
- Category
- LED Drivers ICs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,080 in stock
#C2835807
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.80 | ₹59.00 |
| 50+ | ₹9.34 | ₹467.00 |
| 150+ | ₹8.10 | ₹1,215.00 |
| 500+ | ₹7.17 | ₹3,585.00 |
| 3,000+ | ₹6.43 | ₹19,290.00 |
| 6,000+ | ₹6.06 | ₹36,360.00 |
5 × ₹11.80
₹59.00
excl. GST
₹69.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MEL7136BM5G-8001
₹59.00 for 5 + GST
Specifications
- Features
- Built-in soft-start;Over-Temperature Protection (OTP)
- Switch Tube (Built-In/External)
- External
- Operating temperature
- -40℃~+125℃
- Number of Channels
- 1
- Output Current
- 1A
- Voltage - Input(DC)
- 2.7V~18V
- Constant Current Accuracy
- 5%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
MEL7136A is a LED constant current driver featuring low quiescent current and low dropout voltage. Output current is adjustable from 10mA to 1A via an external resistor. MEL7136B is a controller-only device that requires an external NMOS transistor, making it suitable for applications demanding high output current. The output current of MEL7136B can be regulated through an external DC control voltage or PWM control. A single external resistor is sufficient to implement constant current LED driving. The driver also provides soft-start, thermal protection, and undervoltage protection. The EXT pin supports current and voltage expansion — connecting an external NMOS or NPN transistor to this pin extends both the current and voltage range.
Applications
- Power LED driver and controller
- Low voltage and light load (below 1A)
- High voltage applications
- Low voltage and heavy load (above 1A)
- Low voltage applications
- Adjustable output current applications
