MSKSEMIDatasheet (PDF)

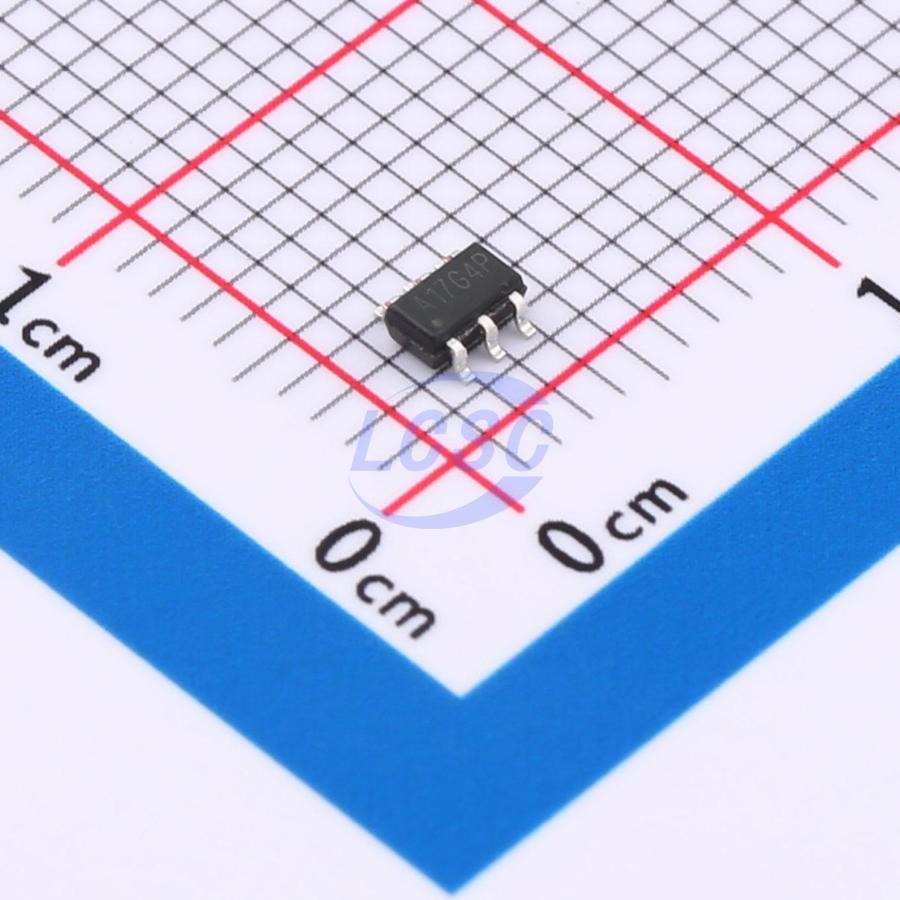

MFP6291LR-G1
1.2MHz Boost Adjustable 600mV~20V 2.5A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High-Efficiency DC-DC Converter
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MFP6291LR-G1
- Store part #
- C30197559
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,385 in stock
#C30197559
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.74 | ₹58.70 |
| 50+ | ₹9.43 | ₹471.50 |
| 150+ | ₹8.28 | ₹1,242.00 |
| 500+ | ₹7.42 | ₹3,710.00 |
| 3,000+ | ₹5.99 | ₹17,970.00 |
| 6,000+ | ₹5.65 | ₹33,900.00 |
5 × ₹11.74
₹58.70
excl. GST
₹69.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MFP6291LR-G1
₹58.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.2MHz
- Number of Outputs
- 1
- Function
- Boost
- Features
- Adjustable current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.2V~16V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~20V
- Output Current
- 2.5A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The MFP6291LR-G1 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MFP6291LR-G1 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life. The MFP6291LR-G1 features automatic shifting to pulse frequency modulation mode at light loads. The MFP6291LR-G1 includes under-voltage lockout, current limiting, and thermal overoad protection to prevent damage in the event of an output overload. The MFP6291LR-G1 is available in a small 6-pin SOT-23 package.
Applications
- Battery-Powered Equipment
- Set-Top Boxed LCD Bais Supply
- DSL and Cable Modems and Routers
- Networking cards powered from PCl or PCI express slots
Key features
- Integrated 80mΩ Power MOSFET
- 2.2V to 16V Input Voltage
- 1.2MHz Fixed Switching Frequency
- Adjustable Over Current Protection: 0.5A ~ 2.5A
- Internal 2.5A Switch Current Limit(OC pin floating)
- Adjustable Output Voltage
- Internal Compensation
- Over Voltage Protection
- Up to 20V Output Voltage
- Automatic Pulse Frequency Modulation Mode at Light Loads
- Up to 93% Efficiency
- Available in a 6-Pin SOT23-6 Package
