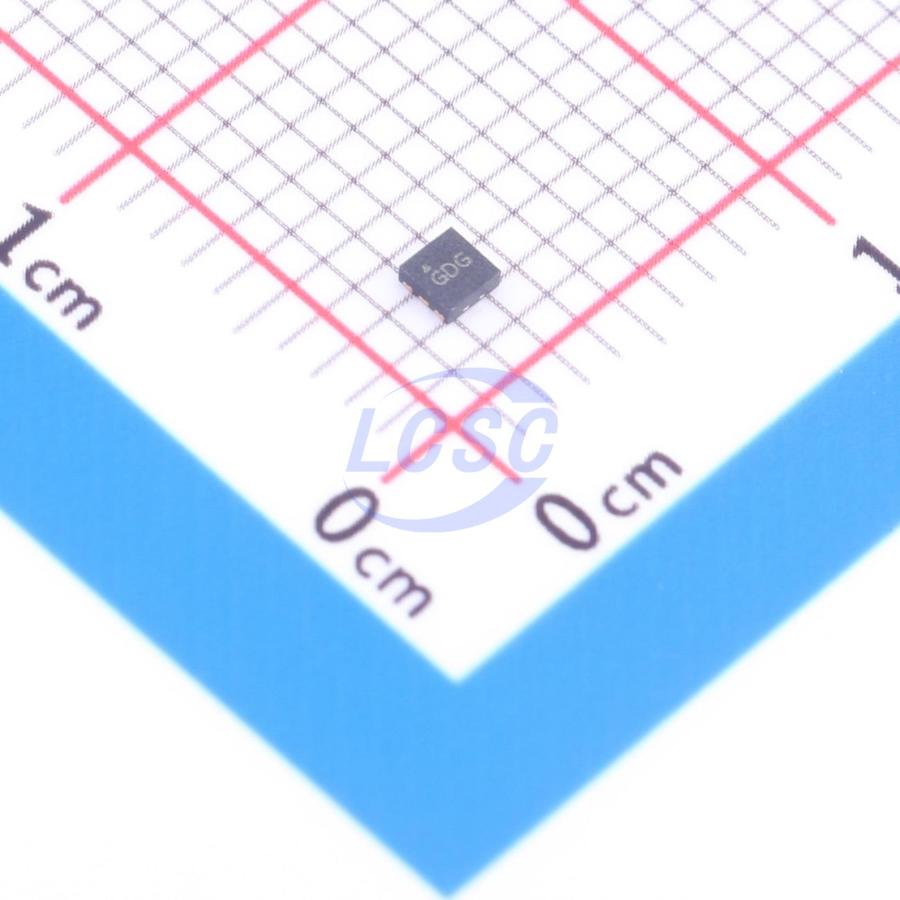

MIC23030-GYMT-TR

A high-efficiency, 8 MHz, 400 mA synchronous buck regulator with HyperLight Load mode. HyperLight Load provides very high efficiency at light loads and ultra-fast transient response that is perfectly suited for supplying processor core voltages. An additional benefit of this proprietary architecture is the very low output ripple voltage throughout the entire load range with the use of small output capacitors. The tiny 1.6 mm × 1.6 mm TDFN package saves precious board space and requires only three external components. Designed for use with a very small inductor, down to 0.47 μH, and an output capacitor as small as 2.2 μF that enables a sub 1 mm height. Has a very low quiescent current of 21 μA and achieves as high as 83% efficiency at 1 mA. At higher loads, it provides a constant switching frequency around 8 MHz while achieving peak efficiencies up to 91%. Available in a 6-pin 1.6 mm × 1.6 mm TDFN package with an operating junction temperature range of -40°C to +125°C.

Applications

• Mobile Handsets
• Portable Media/MP3 Players
• Portable Navigation Devices (GPS)
• WiFi/WiMax/WiBro Modules
• Digital Cameras
• Wireless LAN Cards
• USB-Powered Devices
• Portable Applications

Key features

• Input Voltage: 2.7V to 5.5V
• 400 mA Output Current
• Up to 91% Efficiency and 83% at 1 mA
• 21 μA Typical Quiescent Current
• 8 MHz PWM Operation in Continuous Mode
• Ultra-Fast Transient Response
• Low Voltage Output Ripple - 14 mVPP Ripple in HyperLight Load Mode - 5 mV Output Voltage Ripple in Full PWM Mode
• Fully Integrated MOSFET Switches
• 0.01 μA Shutdown Current
• Thermal Shutdown and Current-Limit Protection
• Fixed and Adjustable Output Voltage Options Available
• 1.6 mm × 1.6 mm 6-Lead TDFN Package
• -40°C to +125°C Junction Temperature Range
