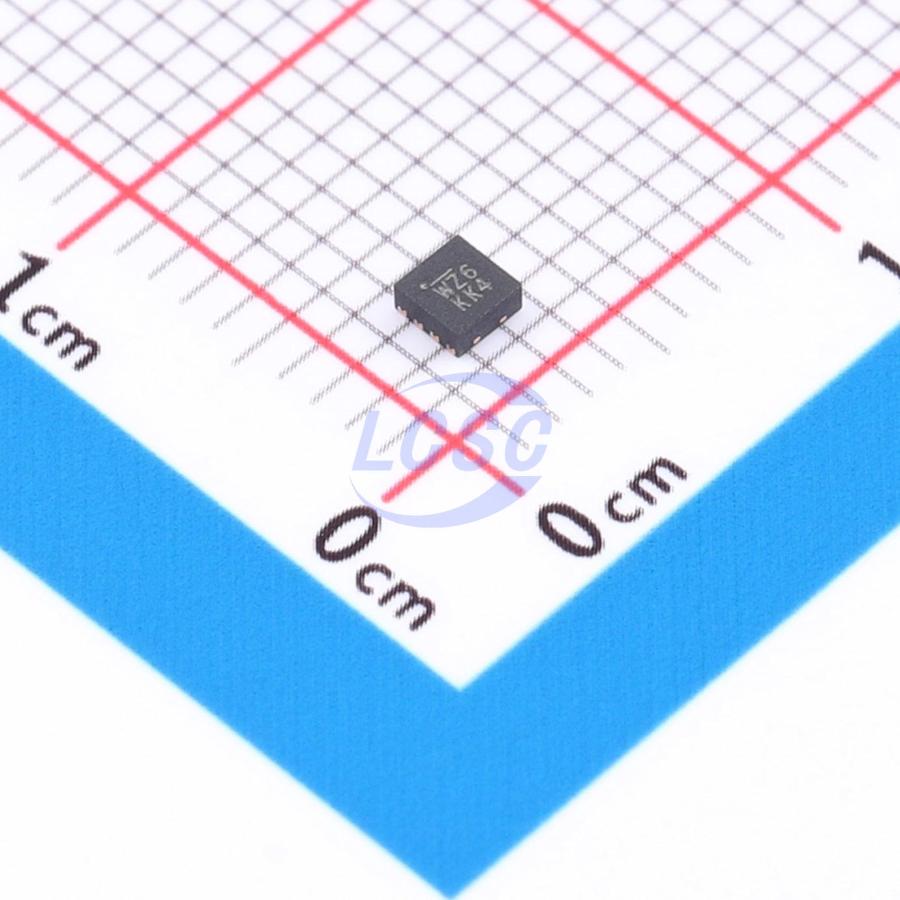

MIC2606YML-TR

The MIC2605/6 is a 1.2MHz/2MHz, PWM DC/DC boost switching regulator available in a 2mm x 2mm MLF package. High power density is achieved with the MIC2605/6’s internal 40V/0.5A switch and schottky diode, allowing it to power large loads in a tiny footprint. The MIC2605/6 implements constant frequency 1.2MHz/2MHz PWM current mode control. The MIC2605/6 offers internal compensation that offers excellent transient response and output regulation performance. The high frequency operation saves board space by allowing small, low-profile external components. The fixed frequency PWM scheme also reduces spurious switching noise and ripple to the input power source. The MIC2605/6 is available in an 8-pin 2mm x 2mm MLF leadless package. This package has an output overvoltage protection feature. The MIC2605/6 has an operating junction temperature range of -40°C to +125°C.

Applications

• TV-tuners
• Broadband communications
• TFT-LCD bias supplies
• Bias supply
• Positive output regulators
• SEPIC converters
• DSL applications
• Local boost regulators

Key features

• Wide input voltage range: 4.5V to 20V
• Output voltage adjustable to 40V
• 0.5A switch current and schottky diode
• MIC2605 operates at 1.2MHz
• MIC2606 operates at 2MHz
• Programmable soft start
• Stable with small size ceramic capacitors
• High efficiency
• Low input and output ripple
• <10μA shutdown current
• UVLO
• Output over-voltage and over-temperature protection
• 8-pin 2mm x 2mm MLF package
• –40°C to +125°C junction temperature range
