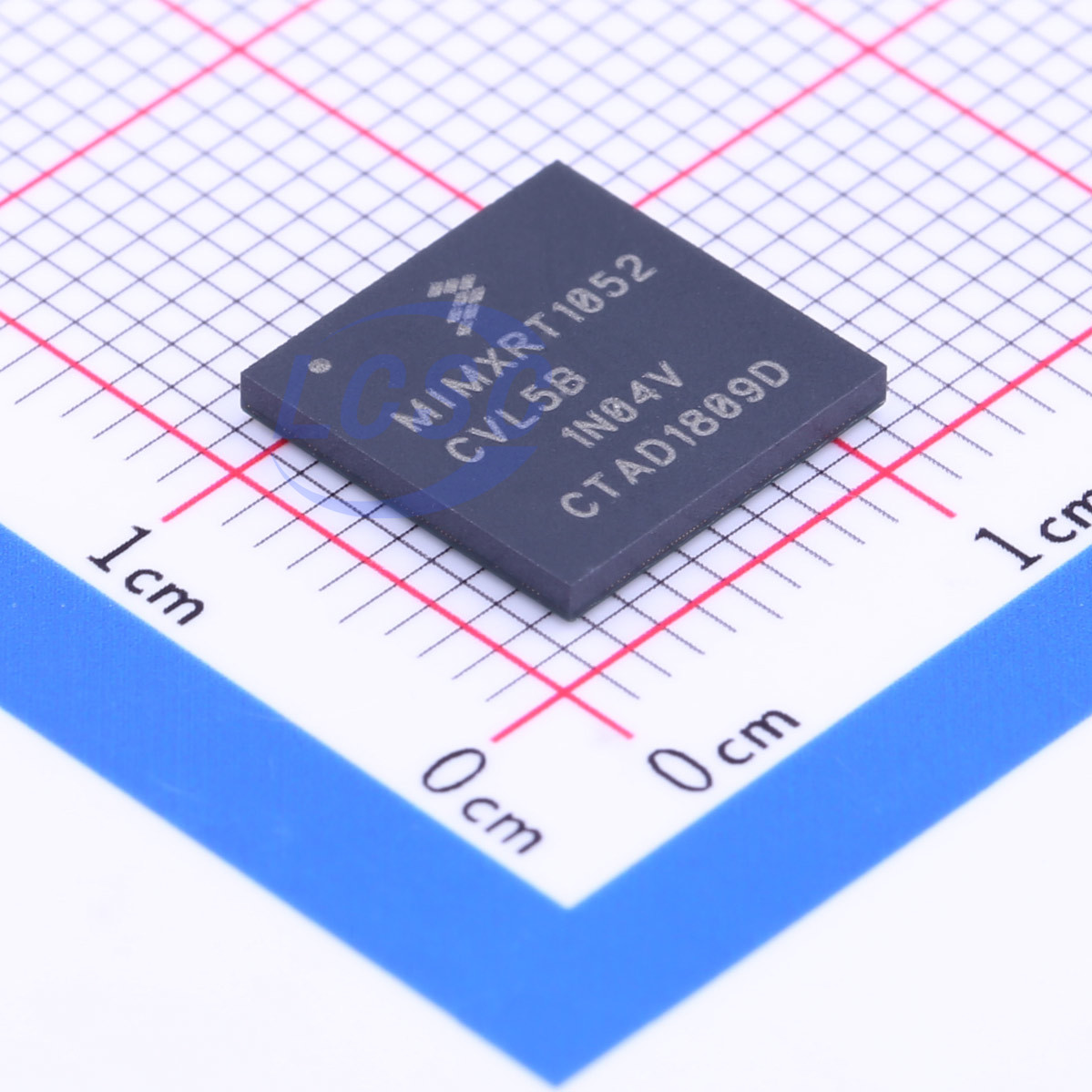

MIMXRT1052CVL5B

The i.MX RT1050 is a new processor family featuring NXP's advanced implementation of the Arm Cortex® - M7 core, which operates at speeds up to 528 MHz to provide high CPU performance and best real - time response. The i.MX RT1050 processor has 512 KB on - chip RAM, which can be flexibly configured as TCM or general - purpose on - chip RAM. The i.MX RT1050 integrates advanced power management module with DCDC and LDO that reduces complexity of external power supply and simplifies power sequencing. The i.MX RT1050 also provides various memory interfaces, including SDRAM, RAW NAND FLASH, NOR FLASH, SD/eMMC, Quad SPI, and a wide range of other interfaces for connecting peripherals, such as WLAN, Bluetooth, GPS, displays, and camera sensors. The i.MX RT1050 also has rich audio and video features, including LCD display, basic 2D graphics, camera interface, SPDIF, and I2S audio interface. i.MX RT1050 has analog interfaces, such as ADC, ACMP, and TSC.

Applications

• Industrial Human Machine Interfaces (HMI)
• Motor Control
• Home Appliance

Key features

• Supports single Arm Cortex - M7 Core with: 32 KB L1 Instruction Cache, 32 KB L1 Data Cache, Full featured Floating Point Unit (FPU) with support of the VFPv5 architecture, Support the Armv7 - M Thumb instruction set, Integrated MPU, up to 16 individual protection regions, Up to 512 KB I - TCM and D - TCM in total, Frequency of 528 MHz Cortex M7 Core, CoreSightTM components integration for debug
• Boot ROM (96 KB)
• On - chip RAM (512 KB), Configurable RAM size up to 512 KB shared with M7 TCM
• External memory interfaces: 8/16 - bit SDRAM, up to SDRAM - 166; 8/16 - bit SLC NAND FLASH, with ECC handled in software; SD/eMMC; SPI NOR/NAND FLASH; Parallel NOR FLASH with XIP support; Single/Dual channel Quad SPI FLASH with XIP support
• Timers and PWMs: Two General Programmable Timers (GPT), 4 - channel generic 32 - bit resolution timer, Each support standard capture and compare operation; Four Periodical Interrupt Timer (PIT), Generic 16 - bit resolution timer, Periodical interrupt generation; Four Quad Timers (QTimer), 4 - channel generic 16 - bit resolution timer for each, Each support standard capture and compare operation, Quadrature decoder integrated; Four FlexPWMs, Up to 8 individual PWM channels for each, 16 - bit resolution PWM suitable for Motor Control applications; Four Quadrature Encoder/Decoders
• Display Interface: Parallel RGB LCD interface, Support 8/16/24 bit interface, Support up to 1366 x 768 WXGA resolution, Support Index color with 256 entry x 24 bit color LUT, Smart LCD display with 8/16 - bit MPU/8080 interface
• Audio: S/PDIF input and output; Three synchronous audio interface (SAI) modules supporting I2S, AC97, TDM, and codec/DSP interfaces; MQS interface for medium quality audio via GPIO pads
• Generic 2D graphics engine: BitBlit, Flexible image composition options - alpha, chroma key; Image rotation (90°, 180°, 270°); Porter - Daff operation; Image size; Color space conversion; Multiple pixel format support (RGB, YUV444, YUV422, YUV420, YUV400); Standard 2D - DMA operation
• Camera sensors: Support 24 - bit, 16 - bit, and 8 - bit CSI input
• Connectivity: Two USB 2.0 OTG controllers with integrated PHY interfaces; Two Ultra Secure Digital Host Controller (uSDHC) interfaces, MMC 4.5 compliance with HS200 support up to 200 MB/sec, SD/SDIO 3.0 compliance with 200 MHz SDR signaling to support up to 100 MB/sec, Support for SDXC (extended capacity); One 10/100 M Ethernet controller with support for IEEE1588; Eight universal asynchronous receiver/transmitter (UARTs) modules; Four I2C modules; Four SPI modules; Two FlexCAN modules
• GPIO and Pin Multiplexing: General - purpose input/output (GPIO) modules with interrupt capability; Input/output multiplexing controller (IOMUXC) to provide centralized pad control; Two FlexIOs
• Full PMIC integration. On - chip DCDC and LDO; Temperature sensor with programmable trip points; GPC hardware power management controller
