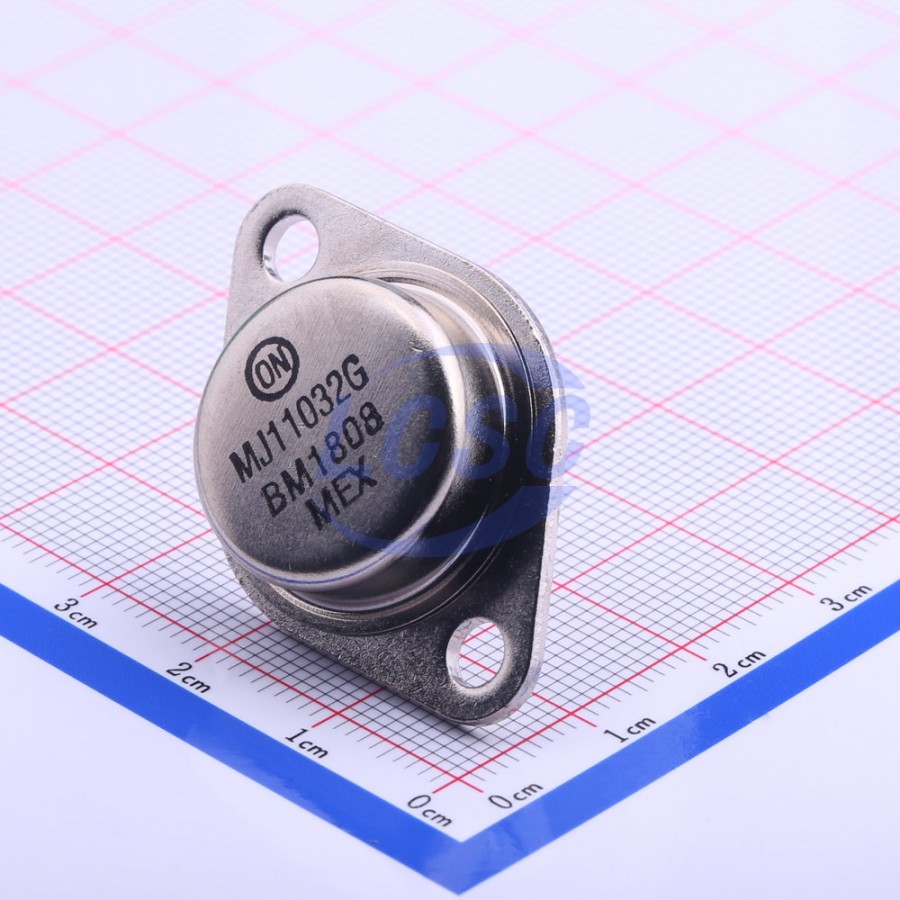

MJ11032G
120V 1000 50A NPN TO-204(TO-3) Single Bipolar Transistors RoHS
TO-204(TO-3)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- MJ11032G
- Store part #
- C2732
- Package / case
- TO-204(TO-3)
- Category
- Single Bipolar Transistors
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C2732
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,922.46 | ₹1,922.46 |
| 10+ | ₹1,696.22 | ₹16,962.20 |
| 30+ | ₹1,414.49 | ₹42,434.70 |
| 100+ | ₹1,298.99 | ₹1,29,899.00 |
1 × ₹1,922.46
₹1,922.46
excl. GST
₹2,268.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tray
MJ11032G
₹1,922.46 for 1 + GST
Specifications
- Vbe Saturation(VBE(sat))
- 4.5V
- Operating Temperature
- -55℃~+200℃@(Tj)
- Collector - Emitter Voltage VCEO
- 120V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 1000
- Pd - Power Dissipation
- 300W
- Current - Collector(Ic)
- 50A
- type
- NPN
- Vce Saturation(VCE(sat))
- 3.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 100 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 14 g
Overview
High-current complementary silicon power transistors for use as output devices in complementary general-purpose amplifier applications.
Key features
- High DC current gain — h_FE min. 1000 at I_C = 25 A DC
- h_FE min. 400 at I_C = 50 A DC
- Characterized to 100 A (pulsed)
- Diode protection to rated I_C
- Monolithic construction with built-in base-emitter shunt resistor
- Junction temperature up to +200°C
- Available in lead-free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MJ11032#C480234SPTECH · TO-3 | SPTECH | TO-3 | 11 | ₹869.69 · 11 in stock | View |
 | MJ11032G-JSM#C18221459JSMSEMI · TO-3 | JSMSEMI | TO-3 | 158 | ₹320.02 · 158 in stock | View |
| NTE2349#C6622515NTE Electronics · TO-3 | NTE Electronics | TO-3 | On request | ₹5,214.45 · 0 in stock | View | |
| MJ10021#C6666351NTE Electronics · TO-3 | NTE Electronics | TO-3 | On request | ₹5,284.42 · 0 in stock | View | |
| NTE99#C6345978NTE Electronics · TO-3 | NTE Electronics | TO-3 | On request | ₹8,895.06 · 0 in stock | View | |
