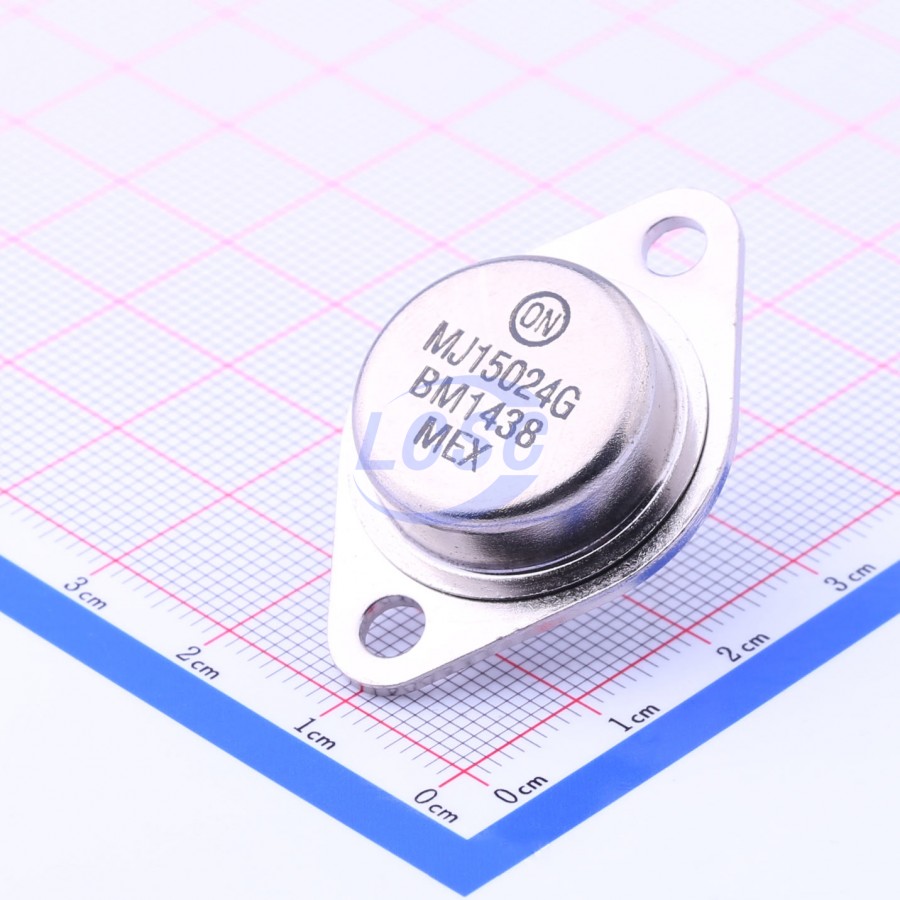

MJ15024G
Bipolar (BJT) Transistor NPN 250V 16A 4MHz 250W Through Hole TO-204
TO-204ROHS3 CompliantActive
TRANS NPN 250V 16A TO-204
- Manufacturer
- onsemi
- Manufacturer part #
- MJ15024G
- Store part #
- C2730
- Package / case
- TO-204
- Category
- Single Bipolar Transistors
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
521 in stock
#C2730
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹803.51 | ₹803.51 |
| 10+ | ₹685.74 | ₹6,857.40 |
| 30+ | ₹613.90 | ₹18,417.00 |
| 100+ | ₹553.60 | ₹55,360.00 |
1 × ₹803.51
₹803.51
excl. GST
₹948.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tray
MJ15024G
₹803.51 for 1 + GST
Specifications
- Operating Temperature
- -65℃~+200℃
- Current - Collector Cutoff
- 250uA
- Transition frequency(fT)
- 4MHz
- Collector - Emitter Voltage VCEO
- 250V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 15
- Pd - Power Dissipation
- 250W
- Current - Collector(Ic)
- 16A
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 100 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 13 g
Overview
The MJ15022 and MJ15024 are power transistors designed for high power audio, disk head positioners and other linear applications.
Applications
- high power audio
- disk head positioners
- other linear applications
Key features
- High Safe Operating Area
- High DC Current Gain
- These Devices are Pb-Free and are RoHS Compliant
- Complementary to MJ15023 (PNP), MJ15025 (PNP)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NTE388#C6943827NTE Electronics · TO-3 | NTE Electronics | TO-3 | On request | ₹4,906.54 · 0 in stock | View | |
| JANTXV2N6676#C17409322MICROCHIP · TO-204AD(TO-3) | MICROCHIP | TO-204AD(TO-3) | On request | ₹60,627.32 · 0 in stock | View | |
| 2N6676#C7174820MICROCHIP · TO-204AD(TO-3) | MICROCHIP | TO-204AD(TO-3) | On request | ₹44,797.38 · 0 in stock | View | |
