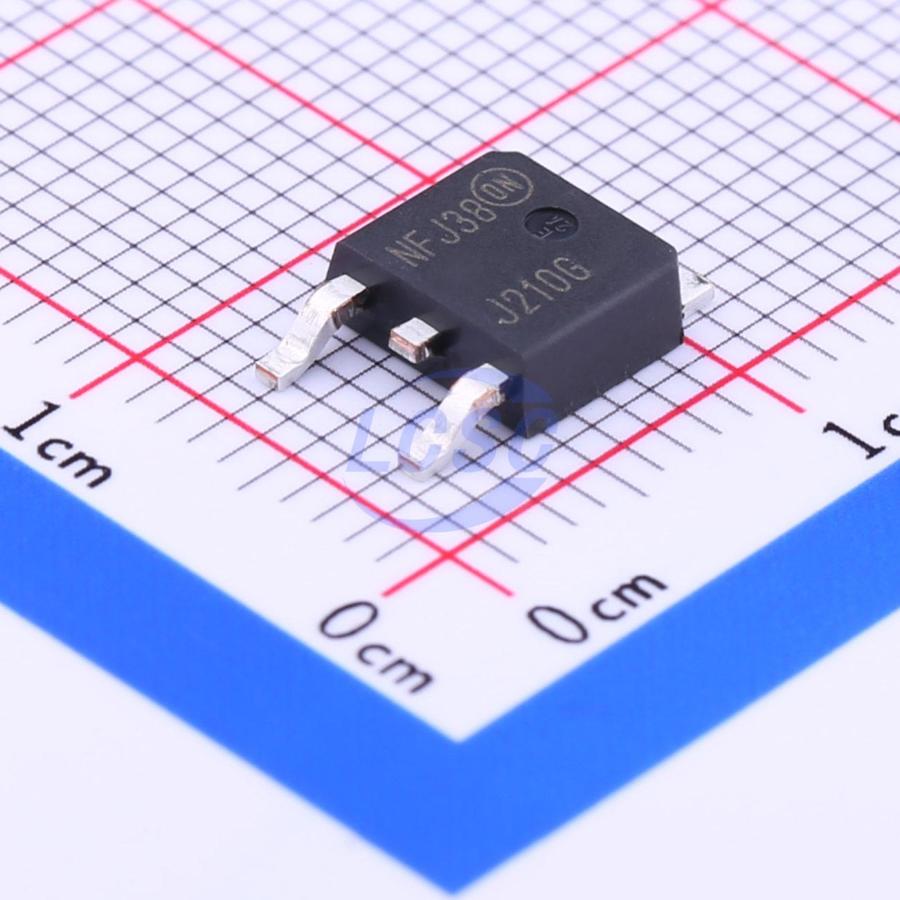

MJD210T4G
Bipolar (BJT) Transistor PNP 25V 5A 65MHz 12.5W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
TRANS PNP 25V 5A TO-252(DPAK)
- Manufacturer
- onsemi
- Manufacturer part #
- MJD210T4G
- Store part #
- C233745
- Package / case
- TO-252(DPAK)
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
498 in stock
#C233745
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.61 | ₹68.61 |
| 10+ | ₹53.79 | ₹537.90 |
| 30+ | ₹47.26 | ₹1,417.80 |
| 100+ | ₹39.43 | ₹3,943.00 |
| 500+ | ₹35.72 | ₹17,860.00 |
| 1,000+ | ₹33.76 | ₹33,760.00 |
1 × ₹68.61
₹68.61
excl. GST
₹80.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MJD210T4G
₹68.61 for 1 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Current - Collector Cutoff
- 100uA
- Transition frequency(fT)
- 65MHz
- Collector - Emitter Voltage VCEO
- 25V
- Emitter-Base Voltage VEBO
- 8V
- DC Current Gain
- 70
- Pd - Power Dissipation
- 12.5W
- Current - Collector(Ic)
- 5A
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 300mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.438 g
Overview
Designed for low voltage, low−power, high−gain audio amplifier applications.
Key features
- High DC Current Gain
- Lead Formed for Surface Mount Applications in Plastic Sleeves (No Suffix)
- Low Collector−Emitter Saturation Voltage
- High Current−Gain − Bandwidth Product
- Annular Construction for Low Leakage
- Epoxy Meets UL 94 V−0 @ 0.125 in
- NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MJD210G#C233691onsemi · DPAK | onsemi | DPAK | 152 | ₹73.84 · 152 in stock | View |
 | MJD210RLG#C233744onsemi · DPAK | onsemi | DPAK | 622 | ₹60.90 · 622 in stock | View |
 | MSJ8P08FD#C55042347MASPOWER · TO-252 | MASPOWER | TO-252 | 50 | ₹73.94 · 50 in stock | View |
| MJD41C#C50229548DDF · TO-252 | DDF | TO-252 | On request | ₹21.01 · 0 in stock | View | |
| 2SB1412-R-TP#C3198539MCC · DPAK | MCC | DPAK | On request | ₹56.02 · 0 in stock | View | |
