onsemi

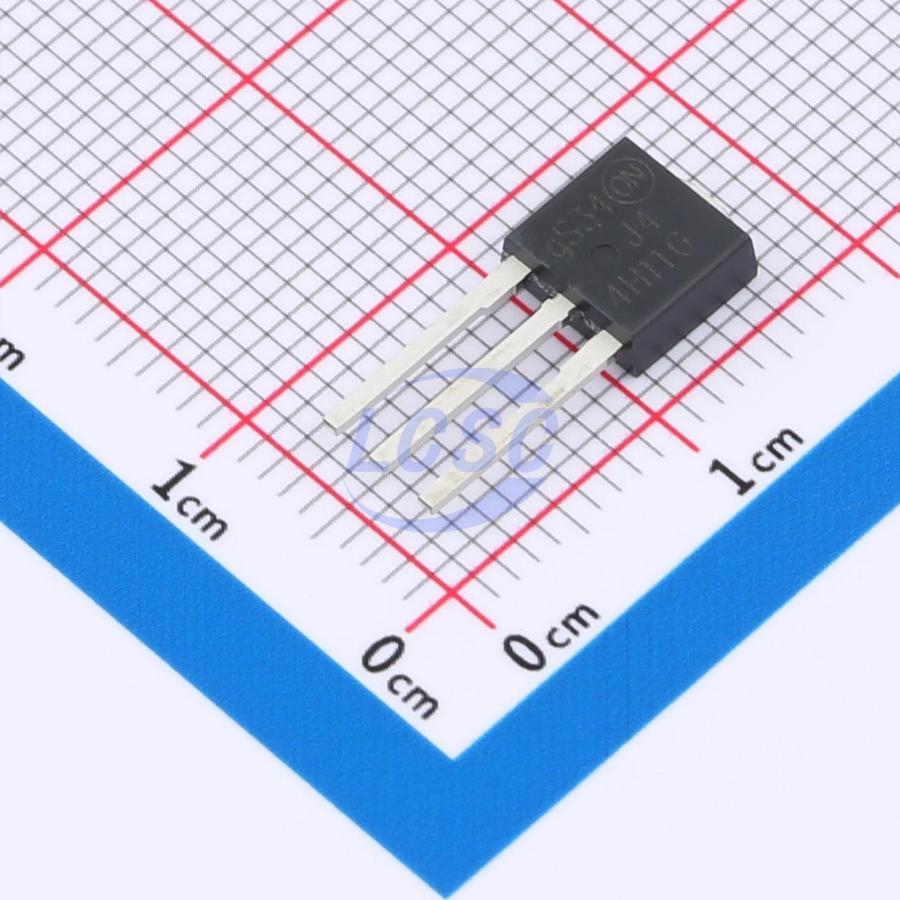

MJD44H11-1G

Bipolar (BJT) Transistor NPN 80V 8A 85MHz 20W Through Hole TO-251(IPAK)

TO-251(IPAK)ROHS3 CompliantActive

TRANS NPN 80V 8A TO-251(IPAK)

Manufacturer: onsemi
Manufacturer part #: MJD44H11-1G
Store part #: C5439
Package / case: TO-251(IPAK)
Category: Single Bipolar Transistors
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,168 in stock

#C5439

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹80.33	₹80.33
10+	₹64.44	₹644.40
30+	₹56.61	₹1,698.30
75+	₹48.77	₹3,657.75
525+	₹44.20	₹23,205.00
975+	₹41.81	₹40,764.75

Quantity (min 1)

1 × ₹80.33

₹80.33

excl. GST

₹94.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 75 per tube

MJD44H11-1G

₹80.33 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 1uA
Transition frequency(fT): 85MHz
Collector - Emitter Voltage VCEO: 80V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 60
Current - Collector(Ic): 8A
Pd - Power Dissipation: 20W
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 1V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 75 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.81 g

Overview

Designed for general purpose power and switching such as output or driver stages in applications such as switching regulators, converters, and power amplifiers.

Applications

switching regulators
converters
power amplifiers

Key features

Lead Formed for Surface Mount Application in Plastic Sleeves (No Suffix)
Straight Lead Version in Plastic Sleeves (“−1” Suffix)
Electrically Similar to Popular D44H/D45H Series
Low Collector Emitter Saturation Voltage
Fast Switching Speeds
Complementary Pairs Simplifies Designs
Epoxy Meets UL 94 V-0 @ 0.125 in
NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
These Devices are Pb-Free and are RoHS Compliant
