onsemi

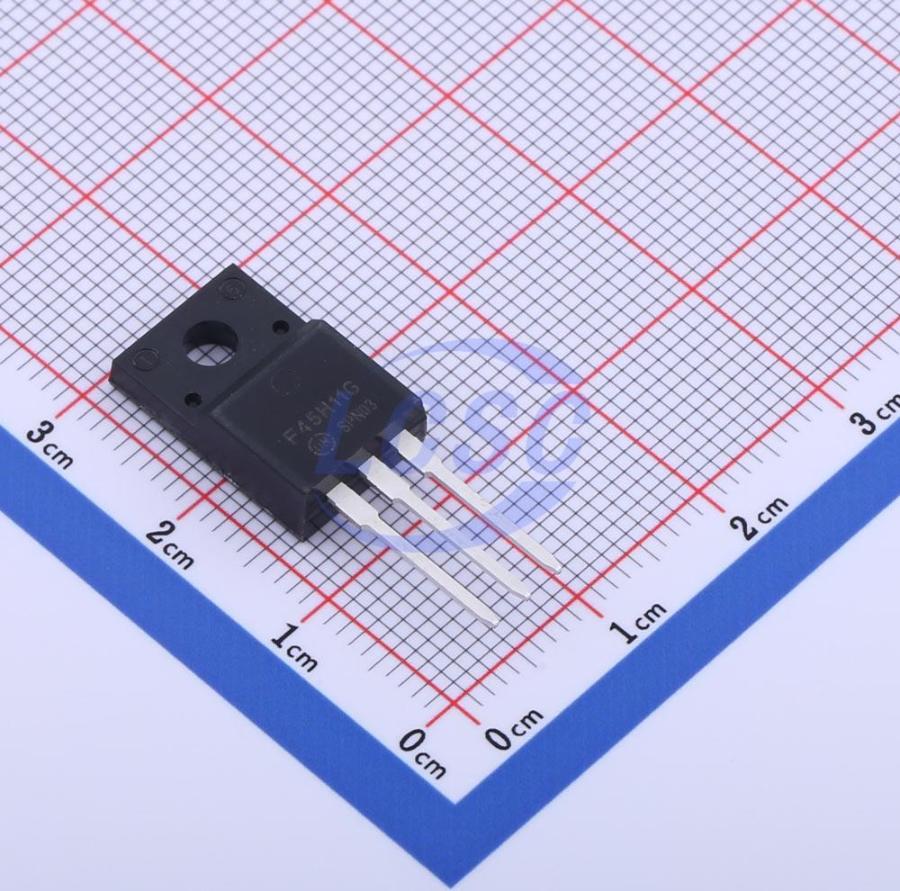

MJF45H11G

Bipolar (BJT) Transistor PNP 80V 10A 40MHz 36W Through Hole TO-220FP-3

TO-220FP-3ROHS3 CompliantActive

TRANS PNP 80V 10A TO-220FP-3

Manufacturer: onsemi
Manufacturer part #: MJF45H11G
Store part #: C897099
Package / case: TO-220FP-3
Category: Single Bipolar Transistors
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C897099

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹228.16	₹228.16
10+	₹189.49	₹1,894.90
50+	₹168.42	₹8,421.00
100+	₹144.29	₹14,429.00
500+	₹133.65	₹66,825.00
1,000+	₹128.86	₹1,28,860.00

Quantity (min 1)

1 × ₹228.16

₹228.16

excl. GST

₹269.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

MJF45H11G

₹228.16 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 1uA
Transition frequency(fT): 40MHz
Collector - Emitter Voltage VCEO: 80V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 40
Pd - Power Dissipation: 36W
Current - Collector(Ic): 10A
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 1V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 2.22 g

Overview

Complementary power transistors are for general purpose power amplification and switching such as output or driver stages in applications such as switching regulators, converters and power amplifiers.

Key features

Low Collector−Emitter Saturation Voltage - VCE(sat)=1.0 V (Max) @8.0 A
Fast Switching Speeds
Complementary Pairs Simplifies Designs
Pb−Free Packages are Available
