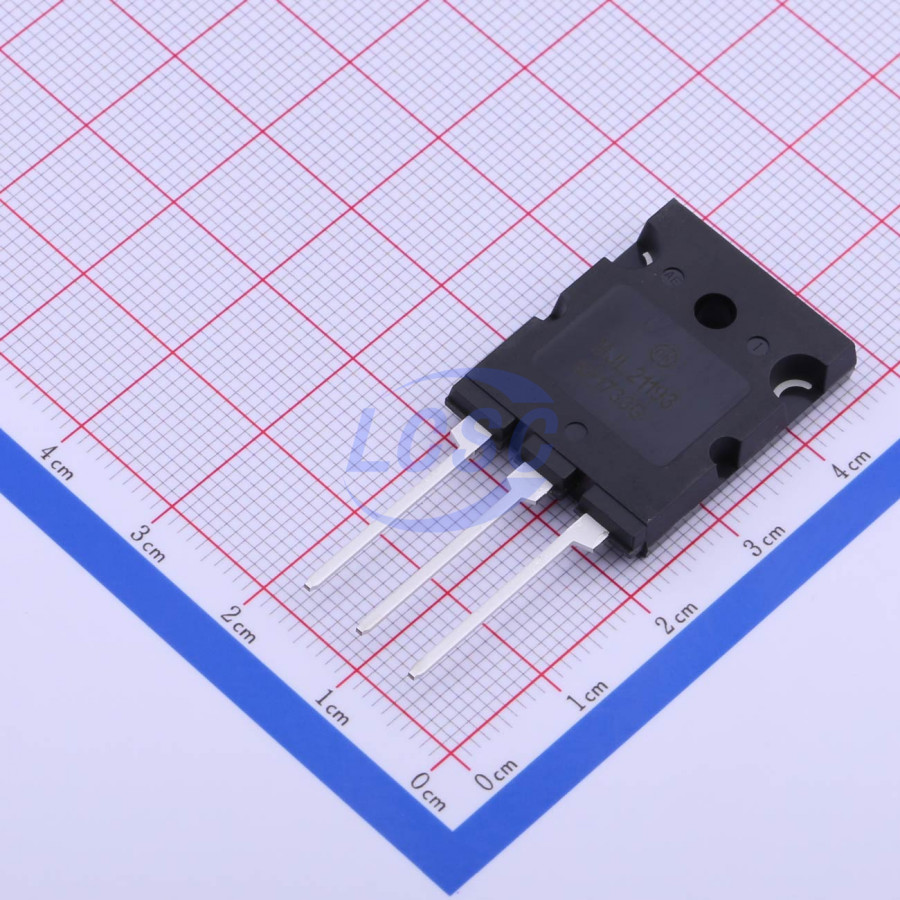

MJL21193G
Bipolar (BJT) Transistor PNP 250V 16A 4MHz 200W Through Hole TO-264-3
TO-264-3ROHS3 CompliantActive
TRANS PNP 250V 16A TO-264-3
- Manufacturer
- onsemi
- Manufacturer part #
- MJL21193G
- Store part #
- C328032
- Package / case
- TO-264-3
- Category
- Single Bipolar Transistors
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
729 in stock
#C328032
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹498.24 | ₹498.24 |
| 10+ | ₹422.66 | ₹4,226.60 |
| 25+ | ₹377.70 | ₹9,442.50 |
| 100+ | ₹332.09 | ₹33,209.00 |
| 500+ | ₹311.24 | ₹1,55,620.00 |
| 1,000+ | ₹301.68 | ₹3,01,680.00 |
1 × ₹498.24
₹498.24
excl. GST
₹587.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
MJL21193G
₹498.24 for 1 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Current - Collector Cutoff
- 100uA
- Transition frequency(fT)
- 4MHz
- Collector - Emitter Voltage VCEO
- 250V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 25
- Pd - Power Dissipation
- 200W
- Current - Collector(Ic)
- 16A
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 1.4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 12.2 g
Overview
The MJL21193 and MJL21194 utilize Perforated Emitter technology and are specifically designed for high power audio output, disk head positioners and linear applications.
Applications
- high power audio output
- disk head positioners
- linear applications
Key features
- Total Harmonic Distortion Characterized
- High DC Current Gain
- Excellent Gain Linearity
- High SOA
- These Devices are Pb−Free and are RoHS Compliant
