TDKDatasheet (PDF)

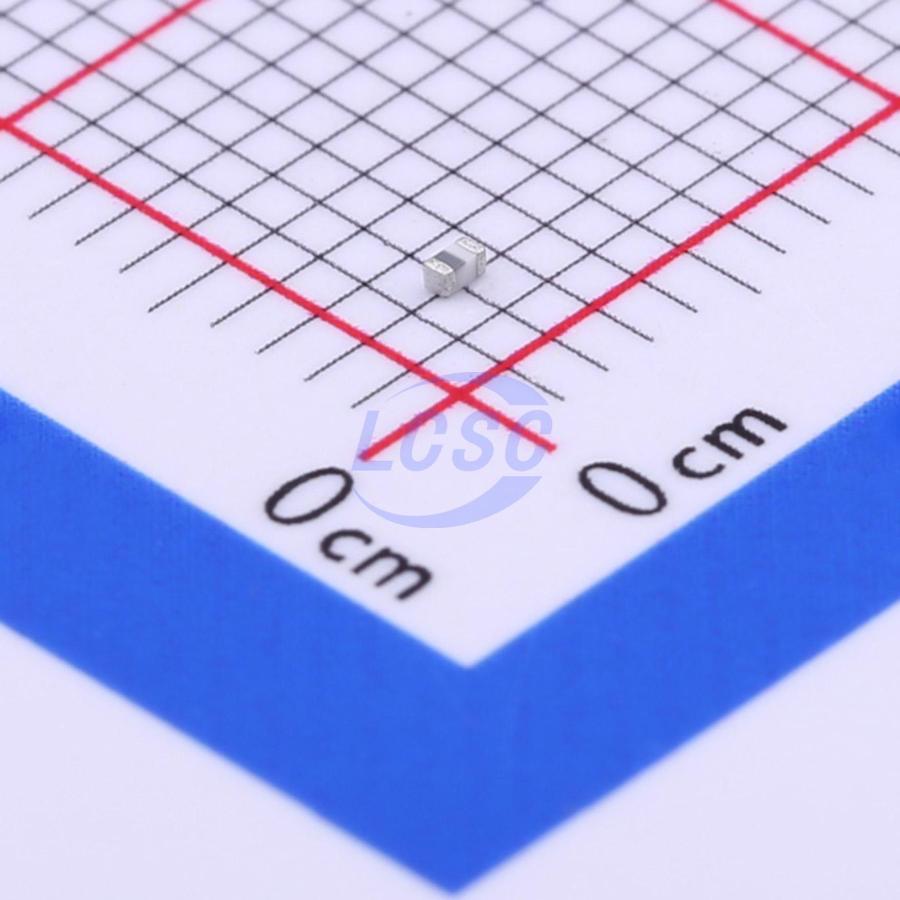

MLG1005S3N0BTD25
3nH Multilayer Inductor 800mA 90mΩ Standard AEC-Q200
0402ROHS3 CompliantActive
FIXED IND 3nH 800mA 90mΩ 0402
- Manufacturer
- TDK
- Manufacturer part #
- MLG1005S3N0BTD25
- Store part #
- C404620
- Package / case
- 0402
- Category
- Fixed Inductors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C404620
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.72 | ₹86.00 |
| 500+ | ₹1.35 | ₹675.00 |
| 1,500+ | ₹1.15 | ₹1,725.00 |
| 10,000+ | ₹1.03 | ₹10,300.00 |
| 20,000+ | ₹0.9261 | ₹18,522.00 |
| 50,000+ | ₹0.8732 | ₹43,660.00 |
50 × ₹1.72
₹86.00
excl. GST
₹101.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
MLG1005S3N0BTD25
₹86.00 for 50 + GST
Specifications
- Current Rating
- 800mA
- Inductance
- 3nH
- Frequency - Self Resonant
- 5.5GHz
- DC Resistance(DCR)
- 90mΩ
- Type
- Multilayer inductor
- Q @ Frequency
- 7@100MHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.012 g
Overview
Applications
- High-frequency circuits in automotive equipment, smartphones, tablet terminals, high-frequency modules, Bluetooth, WLAN, UWB, tuners, and other mobile communications applications
- Application Guide: Automotive Infotainment Systems
Key features
- Advanced monolithic construction, manufactured through sintering of multilayer ceramics and high-frequency conductive materials.
- Operating temperature range: -55°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MLG1005S3N0BT000#C275284TDK · 0402 | TDK | 0402 | 14,480 | ₹1.40 · 14,480 in stock | View |
 | MLG1005S3N0ST000#C76773TDK · 0402 | TDK | 0402 | 10,870 | ₹1.05 · 10,870 in stock | View |
 | LQG15HN3N0S02D#C185483muRata · 0402 | muRata | 0402 | 9,140 | ₹2.88 · 9,140 in stock | View |
 | LQG15HS3N0S02D#C19898muRata · 0402 | muRata | 0402 | 99,920 | ₹3.25 · 99,920 in stock | View |
 | LQG15HS3N0B02D#C3910378muRata · 0402 | muRata | 0402 | 17,520 | ₹4.83 · 17,520 in stock | View |
