TDKDatasheet (PDF)

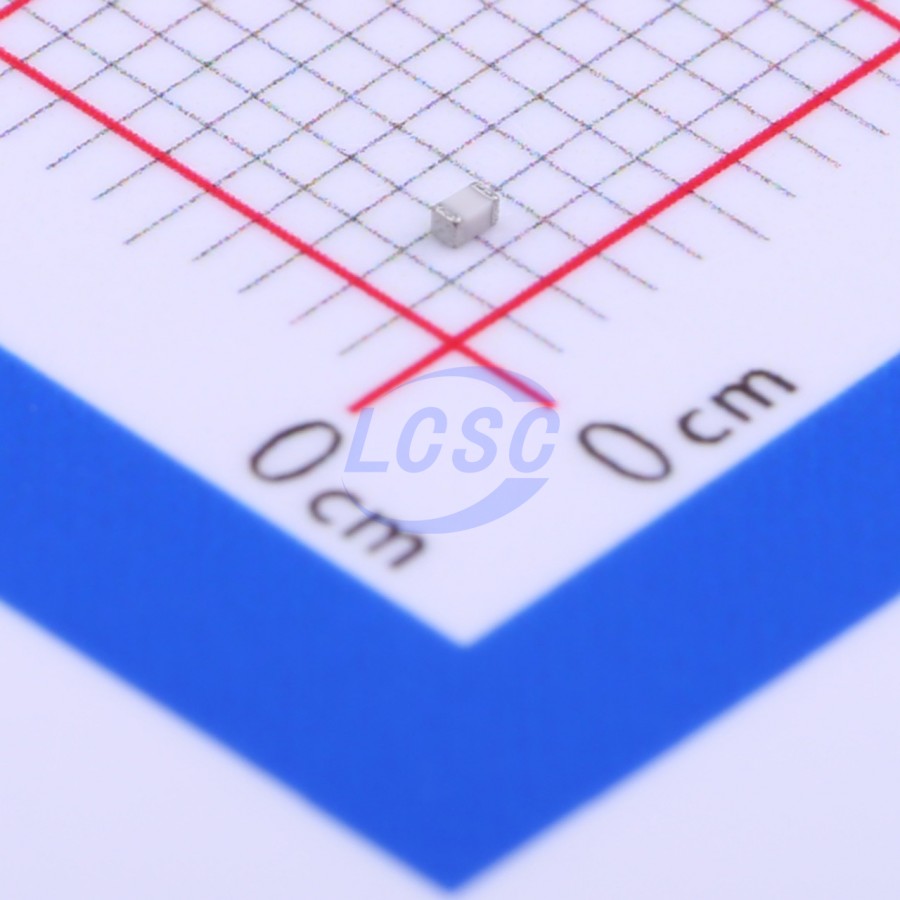

MLK1005S82NJT000
150mA 82nH ±5% 1.39Ω 0402 Fixed Inductors RoHS
0402ROHS3 CompliantDiscontinued
FIXED IND 82nH 150mA 1.39Ω 0402
- Manufacturer
- TDK
- Manufacturer part #
- MLK1005S82NJT000
- Store part #
- C275332
- Package / case
- 0402
- Category
- Fixed Inductors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,050 in stock
#C275332
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.15 | ₹57.50 |
| 500+ | ₹0.8996 | ₹449.80 |
| 1,500+ | ₹0.7673 | ₹1,150.95 |
| 10,000+ | ₹0.688 | ₹6,880.00 |
| 20,000+ | ₹0.6218 | ₹12,436.00 |
| 50,000+ | ₹0.5821 | ₹29,105.00 |
50 × ₹1.15
₹57.50
excl. GST
₹67.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
MLK1005S82NJT000
₹57.50 for 50 + GST
Specifications
- Current Rating
- 150mA
- Inductance
- 82nH
- Tolerance
- ±5%
- Frequency - Self Resonant
- 1.3GHz
- DC Resistance(DCR)
- 1.39Ω
- Q @ Frequency
- 6@100MHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.012 g
Overview
Applications
- Smartphones, tablets, high-frequency modules (power amplifiers, voltage-controlled oscillators, front-end modules, etc.), Bluetooth, WLAN, UWB, tuners, and other high-frequency circuits in the mobile communications industry
- Application Guide: Smartphones/Tablets
Key features
- By adopting a gigahertz spiral laminated structure, a higher self-resonant frequency than MLG structure can be achieved while limiting Q factor degradation in the GHz band.
- Formed as a monolithic structure using ceramic and high-frequency conductive materials through multilayer and sintering processes; non-directional.
- Operating temperature range: -55°C ~ +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CLH1005T-82NJ-S-NP#C180939Chilisin · 0402 | Chilisin | 0402 | 3,460 | ₹0.5557 · 3,460 in stock | View |
 | LQG15HZ82NJ02D#C521063muRata · 0402 | muRata | 0402 | 2,940 | ₹4.37 · 2,940 in stock | View |
 | LQG15HS82NJ02D#C98002muRata · 0402 | muRata | 0402 | 16,300 | ₹3.76 · 16,300 in stock | View |
 | MLG1005S82NJT000#C275301TDK · 0402 | TDK | 0402 | 930 | ₹1.08 · 930 in stock | View |
 | SCC1005C82NJSP#C219552Sunltech · 0402 | Sunltech | 0402 | 6,400 | ₹0.635 · 6,400 in stock | View |
