MSKSEMIDatasheet (PDF)

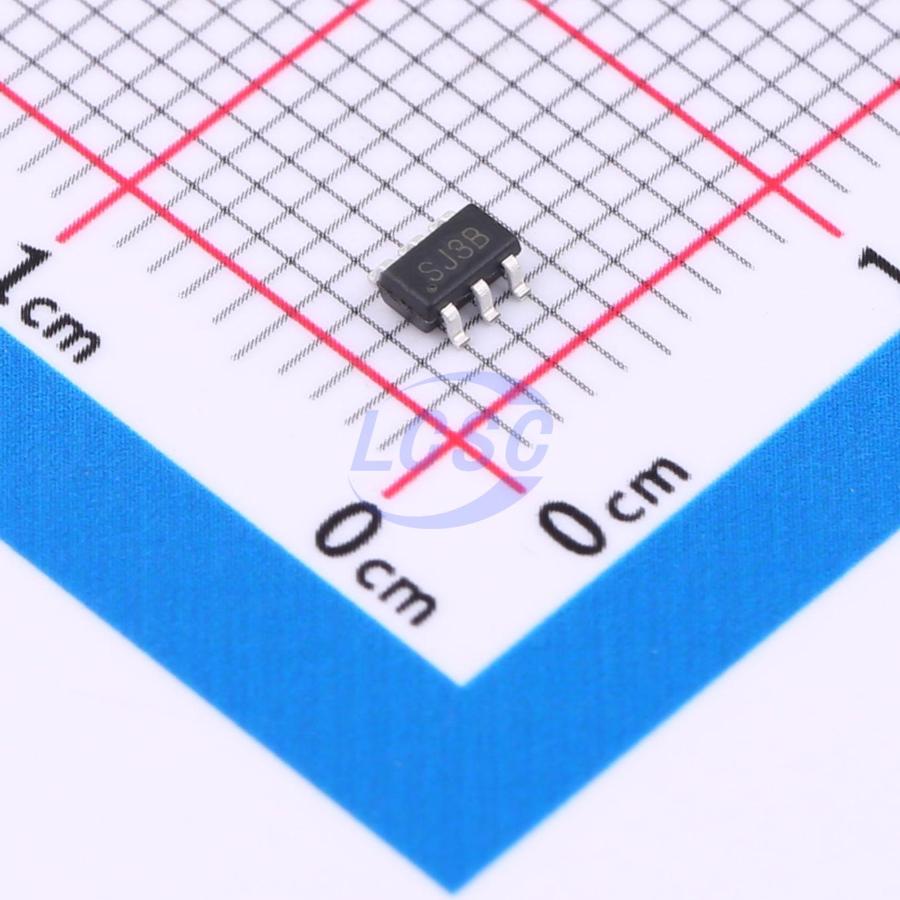

MLMR14203XMKX/NOPB
Buck Switching Regulator IC Adjustable 600mA SOT-23-6
SOT-23-6RoHSActive
Single-chip step-down switching mode converter
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MLMR14203XMKX/NOPB
- Store part #
- C42403109
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,285 in stock
#C42403109
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.62 | ₹178.10 |
| 50+ | ₹27.97 | ₹1,398.50 |
| 150+ | ₹24.69 | ₹3,703.50 |
| 500+ | ₹20.60 | ₹10,300.00 |
| 3,000+ | ₹18.79 | ₹56,370.00 |
| 6,000+ | ₹17.69 | ₹1,06,140.00 |
5 × ₹35.62
₹178.10
excl. GST
₹210.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MLMR14203XMKX/NOPB
₹178.10 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+85℃@(TA)
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 2MHz
- Features
- Cycle-by-cycle current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~50V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The MMLMR14203XMKX/NOPB is a monolithic, step- down, switch mode converter with a built- in power MOSFET. Capable of delivering up to 600mA of output current over a wide input supply range with excellent load and line regulation. At light loads, the regulator operates in low frequency to maintain high efficiency and low output ripple. The minimum input voltage may be as low as 4.5V and the maximum up to 50V, with even higher transient voltages. Fault condition protections include cycle- by- cycle current limiting and thermal shutdown. The MMLMR14203XMKX/NOPB requires a minimal number of readily- available external components. The MMLMR14203XMKX/NOPB is available in a SOT23- 6 package.
Applications
- Power Meters
- Distributed Power Systems
- Battery Chargers
- Pre- Regulator for Linear Regulators
- WLED Drivers
Key features
- Wide 4.5V to 50V Operating input Range
- 600mA Continuous Output Current
- 2MHz Switching Frequency
- Built- in Over Current Limit
- Internal Soft start
- 900mΩ Low RDS(ON) Internal Power MOSFETs
- Output Adjustable from 0.795V
- Integrated internal compensation
- Thermal Shutdown
- Short- circuit protection
- Available in SOT23- 6 Package
- -25°C to +85°C Temperature Range
