TDKDatasheet (PDF)

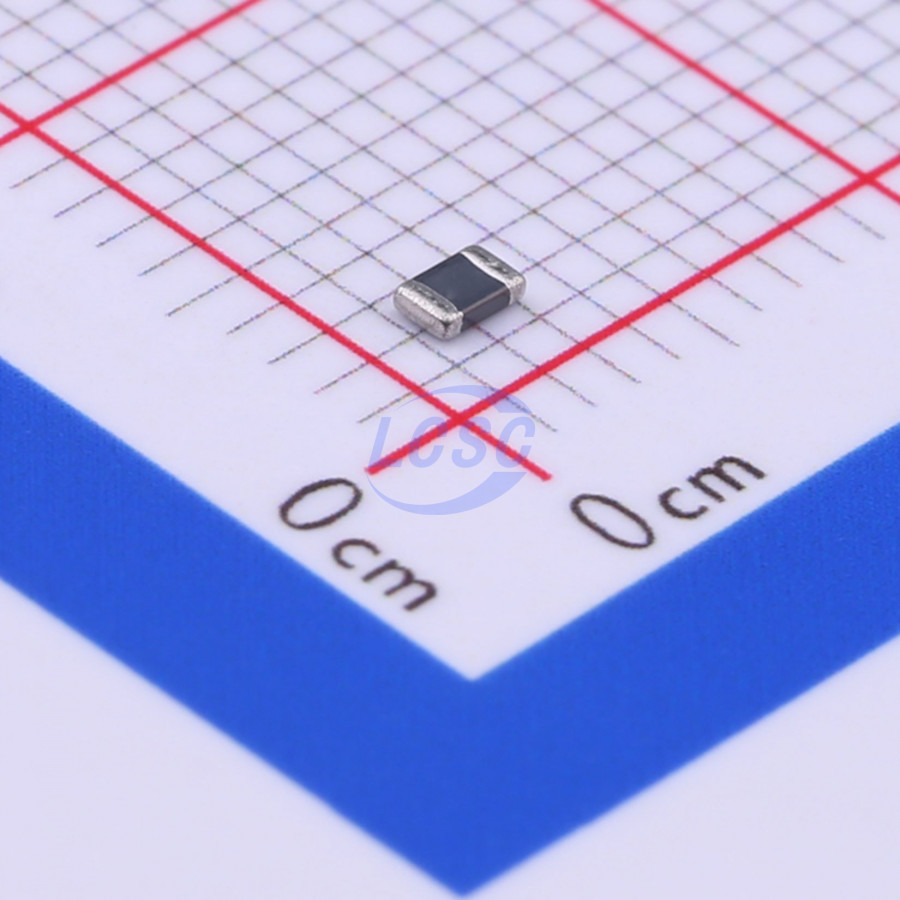

MLP2012S2R2TT0S1
600mA 2.2uH ±20% 429mΩ Multilayer inductor 0805 Fixed Inductors RoHS
0805ROHS3 CompliantActive
FIXED IND 2.2uH 600mA 330mΩ 0805
- Manufacturer
- TDK
- Manufacturer part #
- MLP2012S2R2TT0S1
- Store part #
- C383373
- Package / case
- 0805
- Category
- Fixed Inductors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C383373
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.08 | ₹70.40 |
| 50+ | ₹11.27 | ₹563.50 |
| 150+ | ₹9.86 | ₹1,479.00 |
| 500+ | ₹8.80 | ₹4,400.00 |
| 2,500+ | ₹7.95 | ₹19,875.00 |
| 4,000+ | ₹7.54 | ₹30,160.00 |
5 × ₹14.08
₹70.40
excl. GST
₹83.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MLP2012S2R2TT0S1
₹70.40 for 5 + GST
Specifications
- Current Rating
- 600mA
- Inductance
- 2.2uH
- Tolerance
- ±20%
- DC Resistance(DCR)
- 429mΩ
- Type
- Multilayer inductor
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
Applications
- Smartphones, tablets, digital cameras, camcorders, hard disk drives, power modules, etc.
Key features
- Low-loss magnetic material for low-loss inductors in power circuits.
- Multiple product types with various characteristics beyond inductance value, suited for different applications.
- Type H: Uses low-loss material with low DCR.
- Optimal when heavy-load power efficiency is critical.
- Type V: Like Type H, uses low-loss magnetic material with excellent DC superimposition characteristics.
- Optimal when light-load power efficiency is critical.
- Type S: Standard product series covering a wide range of inductance values and various sizes.
- Operating temperature range: -40°C ~ +125°C (including self-temperature rise)
