MindMotion Microelectronics

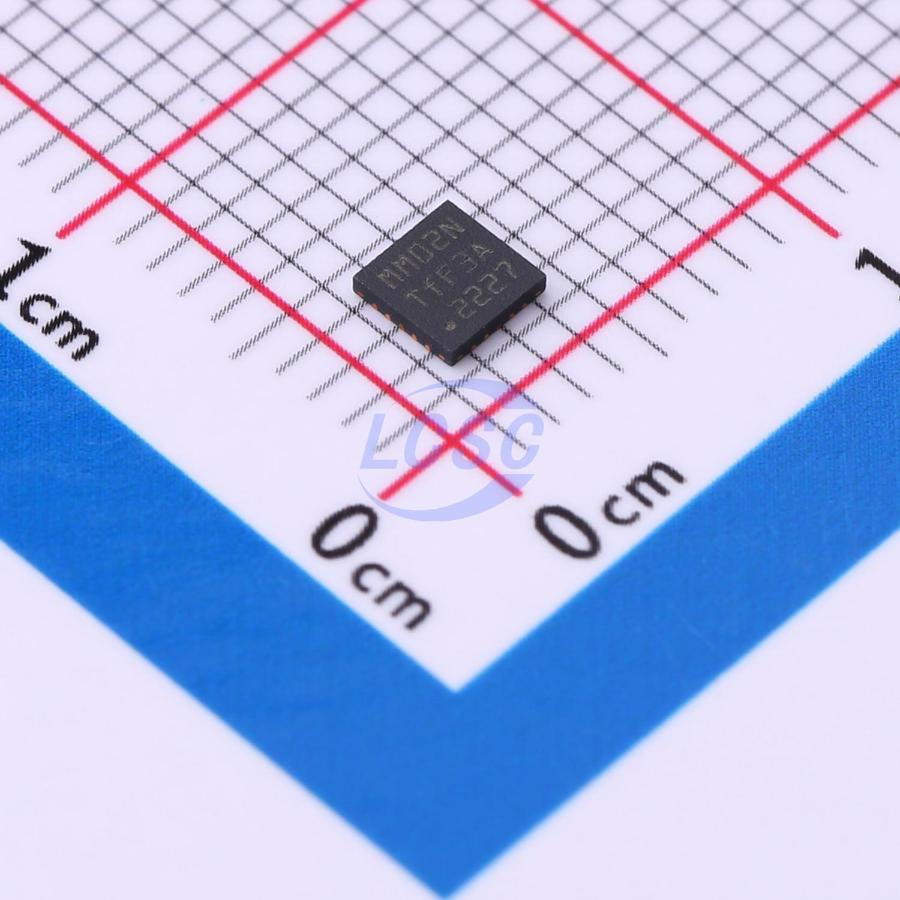

MM32F0020B1N

ARM Cortex-M0 32 Bit 48MHz QFN-20-EP(3x3) Microcontrollers RoHS

QFN-20-EP(3x3)ROHS CompliantActive

Manufacturer: MindMotion Microelectronics
Manufacturer part #: MM32F0020B1N
Store part #: C3821134
Package / case: QFN-20-EP(3x3)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,780 in stock

#C3821134

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹65.40	₹65.40
10+	₹51.07	₹510.70
30+	₹44.98	₹1,349.40
100+	₹37.37	₹3,737.00
500+	₹33.90	₹16,950.00
1,000+	₹31.95	₹31,950.00

Quantity (min 1)

1 × ₹65.40

₹65.40

excl. GST

₹77.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MM32F0020B1N

₹65.40 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 18
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2V~5.5V
Program Memory Type: FLASH
Program Storage Size: 32KB
CPU Core: ARM Cortex-M0
Core Size: 32 Bit
CPU Maximum Speed: 48MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.1 g

Overview

The MM32F0020 microcontroller is built around an Arm Cortex-M0 core, with a maximum operating frequency of 48MHz. It features 32KB of high-speed flash memory and integrates a rich set of I/O ports and peripheral modules. This product includes 1 x 12-bit ADC, 1 x 16-bit advanced timer, 1 x 16-bit general-purpose timer, and 1 x 16-bit basic timer, along with standard communication interfaces: 1 x I2C, 1 x SPI or I2S, and 2 x UART. The operating voltage range is 2.0V ~ 5.5V, with operating temperature ranges (ambient) of -40℃ ~ +85℃ for the industrial grade and -40℃ ~ +105℃ for the extended industrial grade (suffix V). Multiple built-in power-saving modes ensure the requirements of low-power applications are met. The product is available in QFN20 and TSSOP20 package options.

Applications

Charger
Communication Module
Toy
Fan
Battery Management
Smoke Detector
8/16-bit MCU Upgrade

Key features

32-bit Arm Cortex-M0 core
Operating frequency up to 48MHz
Up to 32KB Flash memory
Up to 2KB SRAM
Boot loader supporting in-system programming (ISP) of on-chip Flash
2.0V ~ 5.5V supply voltage
Power-on/power-down reset (POR/PDR), programmable voltage detector (PVD)
External 4 ~ 24MHz high-speed crystal oscillator
Factory-trimmed 8MHz high-speed RC oscillator
PLL supporting CPU operation up to 48MHz with multiple clock division modes
Embedded 40kHz low-speed oscillator
Multiple low-power modes: Sleep, Stop, Deep Stop, and Standby
1× 16-bit 4-channel advanced control timer (TIM1) with 4-channel PWM output, dead-time generation, and emergency stop
1× 16-bit general-purpose timer (TIM3) with up to 4 input capture/output compare channels, usable for IR control decoding
1× 16-bit basic timer (TIM14) with 1 input capture/output compare channel
2× watchdog timers (independent IWDG and window WWWDG)
1× SysTick timer: 24-bit down counter
Up to 18 fast I/O ports
All I/O ports mappable to 16 external interrupts
All ports support input/output signals not exceeding VDD
2× UART interfaces
1× I2C interface
1× SPI interface (2× I2S interfaces)
1× 12-bit ADC, 1μS conversion time, up to 8 external input channels, 1 internal input channel
Conversion range: 0 ~ VDDA
Configurable sampling time and resolution
On-chip voltage sensor
CRC calculation unit
96-bit chip ID (UID)
Serial Wire Debug (SWD) interface
Available in QFN20 and TSSOP20 packages
