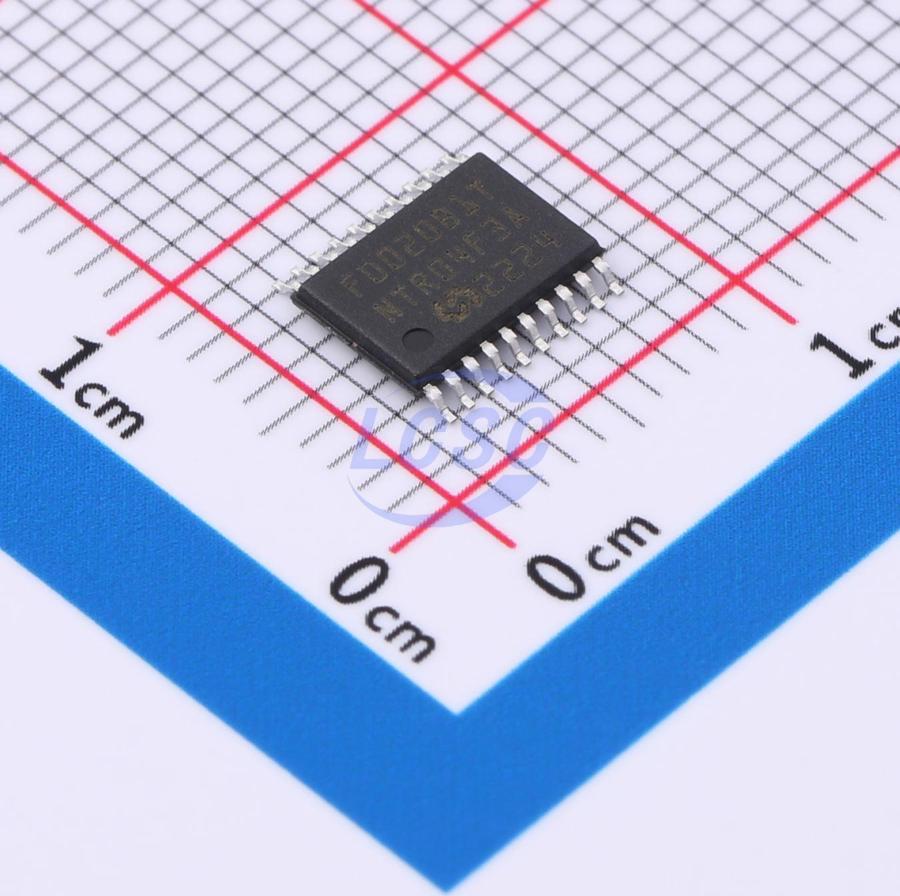

MM32F0020B1T

The MM32F0020 microcontroller is built around an Arm Cortex-M0 core, with a maximum operating frequency of 48MHz. It features 32KB of high-speed flash memory and integrates a rich set of I/O ports and peripheral modules. This product includes 1 x 12-bit ADC, 1 x 16-bit advanced timer, 1 x 16-bit general-purpose timer, and 1 x 16-bit basic timer, along with standard communication interfaces: 1 x I2C, 1 x SPI or I2S, and 2 x UART. The operating voltage range is 2.0V ~ 5.5V, with operating temperature ranges (ambient) of -40℃ ~ +85℃ for the industrial grade and -40℃ ~ +105℃ for the extended industrial grade (suffix V). Multiple built-in power-saving modes ensure the requirements of low-power applications are met. The product is available in QFN20 and TSSOP20 package options.

Applications

• Charger
• Communication Module
• Toy
• Fan
• Battery Management
• Smoke Detector
• 8/16-bit MCU Upgrade

Key features

• 32-bit Arm Cortex-M0 core
• Operating frequency up to 48MHz
• Up to 32KB Flash memory
• Up to 2KB SRAM
• Boot loader supporting in-system programming (ISP) of on-chip Flash
• 2.0V ~ 5.5V supply voltage
• Power-on/power-down reset (POR/PDR), programmable voltage detector (PVD)
• External 4 ~ 24MHz high-speed crystal oscillator
• Factory-trimmed 8MHz high-speed RC oscillator
• PLL supporting CPU operation up to 48MHz with multiple clock division modes
• Embedded 40kHz low-speed oscillator
• Multiple low-power modes: Sleep, Stop, Deep Stop, and Standby
• 1× 16-bit 4-channel advanced control timer (TIM1) with 4-channel PWM output, dead-time generation, and emergency stop
• 1× 16-bit general-purpose timer (TIM3) with up to 4 input capture/output compare channels, usable for IR control decoding
• 1× 16-bit basic timer (TIM14) with 1 input capture/output compare channel
• 2× watchdog timers (independent IWDG and window WWWDG)
• 1× SysTick timer: 24-bit down counter
• Up to 18 fast I/O ports
• All I/O ports mappable to 16 external interrupts
• All ports support input/output signals not exceeding VDD
• 2× UART interfaces
• 1× I2C interface
• 1× SPI interface (2× I2S interfaces)
• 1× 12-bit ADC, 1μS conversion time, up to 8 external input channels, 1 internal input channel
• Conversion range: 0 ~ VDDA
• Configurable sampling time and resolution
• On-chip voltage sensor
• CRC calculation unit
• 96-bit chip ID (UID)
• Serial Wire Debug (SWD) interface
• Available in QFN20 and TSSOP20 packages
