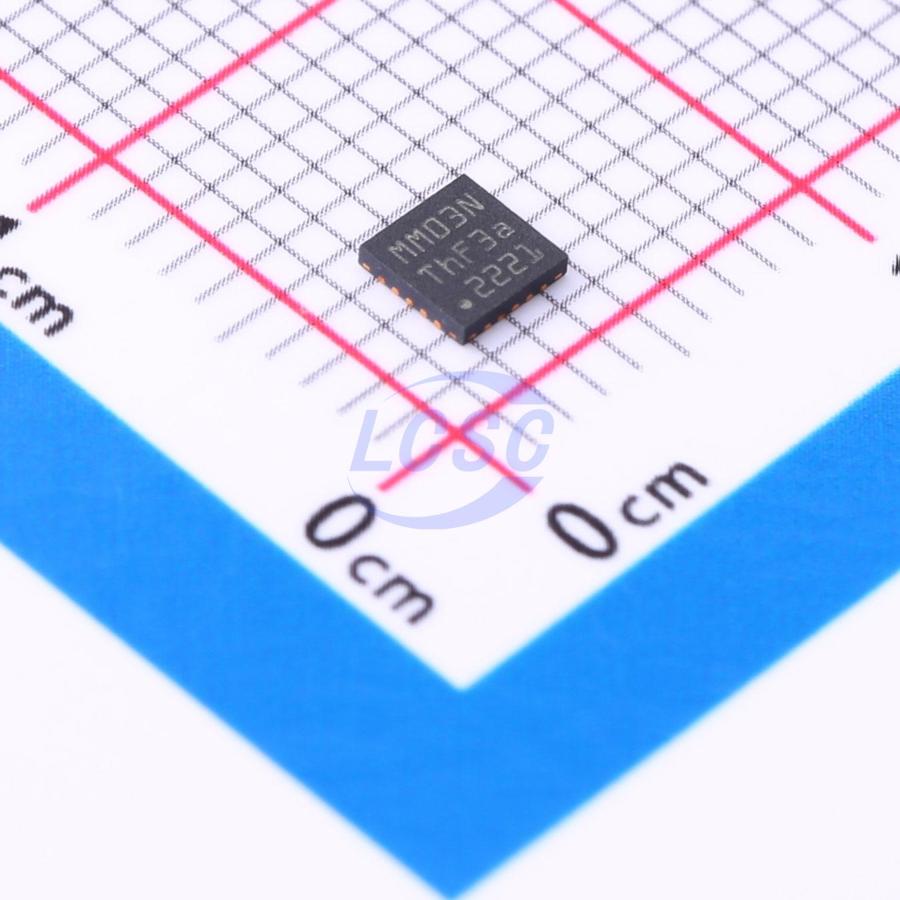

MM32F0040B1N

The MM32F0040 microcontroller is based on the Arm Cortex-M0 core, operating at up to 72MHz. It integrates 32KB of high-speed flash memory along with a rich set of I/O ports and peripheral modules. The product includes 1 x 12-bit ADC, 1 x comparator, 1 x 16-bit advanced timer, 1 x 16-bit and 1 x 32-bit general-purpose timer, 3 x 16-bit basic timers, and standard communication interfaces: 1 x I2C, 1 x SPI or I2S, and 3 x UART. The product series operates at 2.0V ~ 5.5V, with an ambient operating temperature range of -40℃ ~ +85℃ for the industrial grade and -40℃ ~ +105℃ for the extended industrial grade (suffix V). Multiple built-in low-power operating modes meet the requirements of low-power applications. This rich peripheral configuration makes the microcontroller suitable for a wide range of applications. The product is available in QFN20 and TSSOP20 packages.

Key features

• 32-bit Arm Cortex-M0 core
• Operating frequency up to 72MHz
• Up to 32KB Flash memory
• Up to 4KB SRAM
• Boot loader supporting in-system programming (ISP) of on-chip Flash
• 2.0V ~ 5.5V supply voltage
• Power-on/power-down reset (POR/PDR), programmable voltage detector (PVD)
• External 4 ~ 24MHz high-speed crystal oscillator
• Built-in factory-trimmed 8MHz high-speed RC oscillator
• PLL supporting CPU operation up to 72MHz with multiple clock division modes
• Built-in 40kHz low-speed oscillator
• Multiple low-power modes including: sleep, stop, deep stop, and standby
• 1× 5-channel DMA controller supporting peripherals including timers, ADC, UART, I2C, and SPI
• 1× 16-bit 4-channel advanced control timer (TIM1) with 4-channel PWM output, dead-time generation, and emergency stop
• 1× 16-bit general-purpose timer (TIM3) and 1× 32-bit general-purpose timer (TIM2) with up to 4 input capture/output compare channels, usable for IR control decoding
• 3× 16-bit basic timers (TIM14/TIM16/TIM17) with 1 input capture/output compare channel, 1 complementary output pair, dead-time generation, emergency stop, and modulator gate for IR control
• 2× watchdog timers (independent IWDG and windowed WWDG)
• 1× SysTick timer: 24-bit down counter
• Up to 40 fast I/O ports
• All I/O ports mappable to 16 external interrupts
• All ports support input/output signals not exceeding VDD
• Up to 5 communication interfaces
• 3× UART interfaces
• 1× I2C interface
• 1× SPI interface (2× I2S interfaces)
• 1× 12-bit ADC, 1μs conversion time, up to 9 external input channels, 2 internal input channels
• Conversion range: 0 ~ VDDA
• Configurable sampling time and resolution
• On-chip temperature sensor
• On-chip voltage sensor
• 1× high-speed analog comparator
• 32-bit hardware divider
• CRC calculation unit
• 96-bit chip unique ID (UID)
• Serial wire debug (SWD) interface
• Available in QFN20 and TSSOP20 packages
