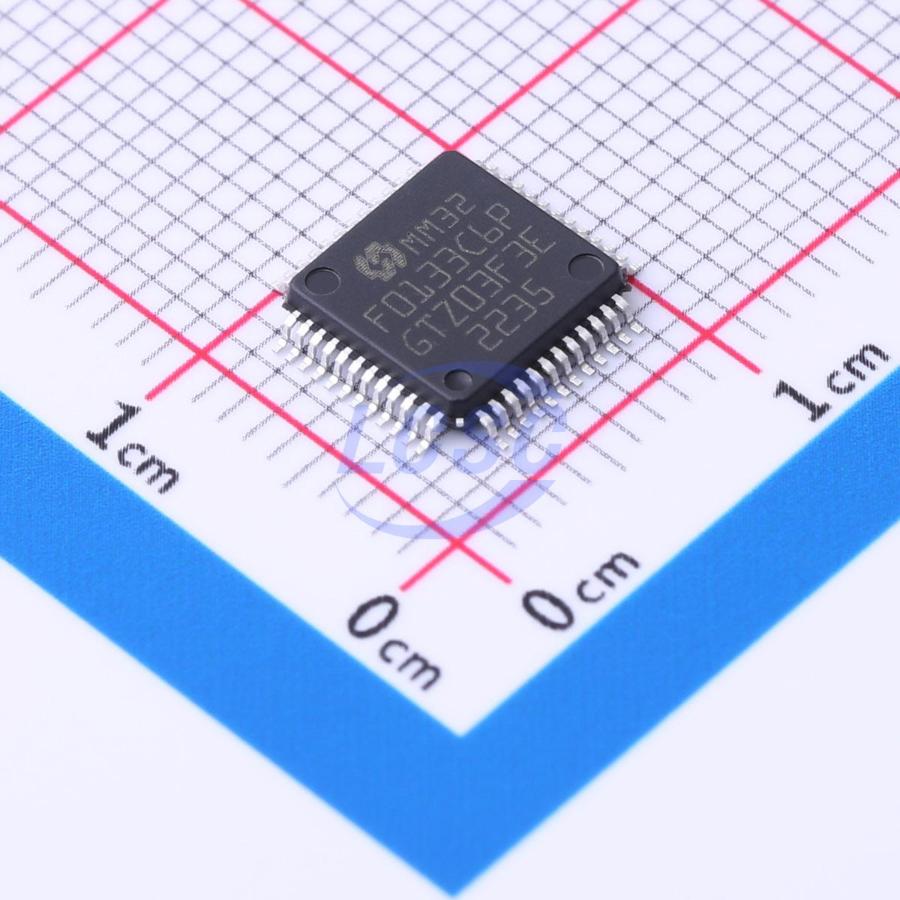

MM32F0133C6P

This microcontroller is based on a high-performance Arm Cortex-M0 core, featuring a 32-bit architecture with a maximum operating frequency of 72MHz, integrated high-speed memory, and a rich set of enhanced I/O ports and peripherals. Peripherals include one 12-bit ADC, two comparators, multiple general-purpose and advanced timers, and standard communication interfaces such as I2C, SPI, UART, USB, and CAN. The operating voltage ranges from 2.0V to 5.5V, with an extended operating temperature range (-40℃ to 85℃ industrial grade or -40℃ to 105℃ extended industrial grade), and supports multiple low-power modes for energy-efficient applications. The series is available in five package options: LQFP64, LQFP48, LQFP32, QFN32, and QFN28.

Applications

• Motor drive and application control
• Medical and handheld devices
• PC gaming peripherals and GPS platforms
• Industrial applications
• Alarm systems, video intercom, and HVAC systems

Key features

• 32-bit Arm Cortex-M0 processor core, up to 72MHz operating frequency
• Up to 64KB flash program memory and up to 16KB SRAM
• 2.0V~5.5V supply voltage, integrated POR/PDR and PVD
• External 2~24MHz high-speed crystal oscillator, built-in factory-trimmed 48MHz high-speed oscillator, built-in 40kHz low-speed oscillator, and PLL
• Sleep, stop, and standby low-power modes
• Integrated 1× 12-bit ADC, 1μs conversion time, up to 10 external input channels, conversion range 0~VDDA
• Integrated 2 comparators
• Integrated 5-channel DMA controller, supporting Timer, UART, I2C, SPI, USB, and ADC peripherals
• Up to 56 fast I/O ports, all I/O pins mappable to 16 external interrupts
• Up to 10 timers, including advanced control timer, general-purpose timer, basic timer, watchdog timer, and SysTick timer
• Integrated 1× RTC
• Serial Wire Debug (SWD) interface support
• Up to 7 communication interfaces: 2× UART, 1× I2C, 2× SPI, 1× CAN, and 1× USB device interface
• 96-bit unique chip ID (UID)
