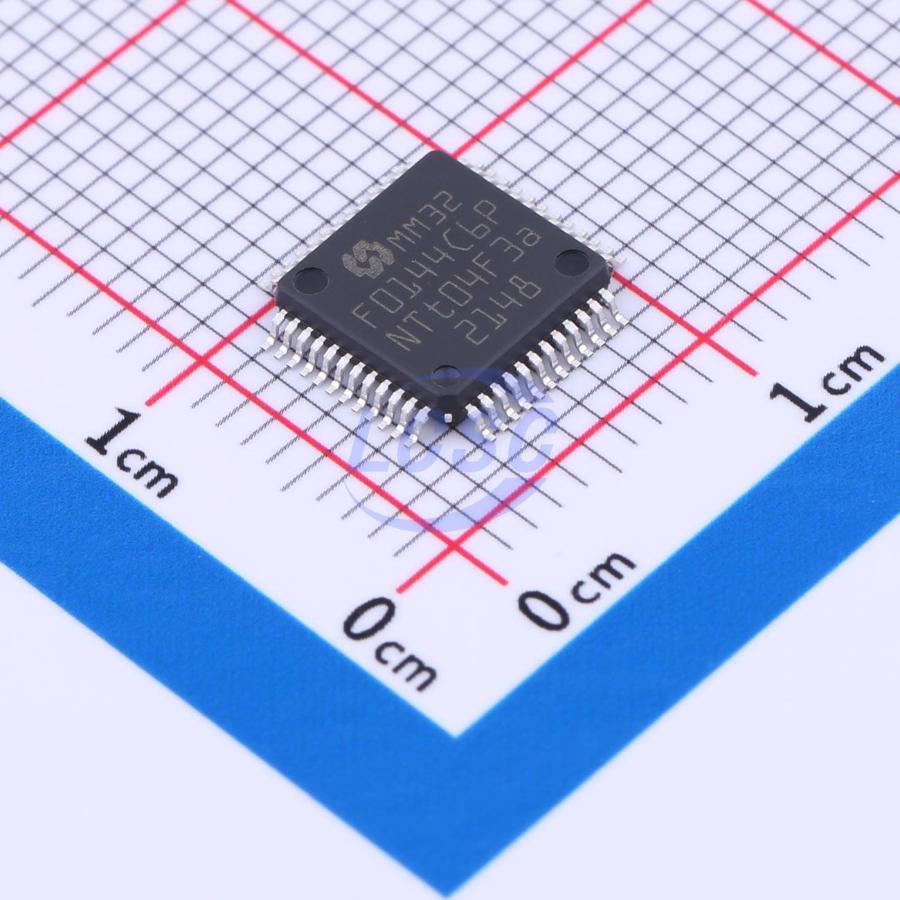

MM32F0144C6P

The MM32F0140 microcontroller features an Arm Cortex®-M0 core with a maximum operating frequency of 72MHz. It integrates 64KB of high-speed flash memory along with extensive I/O ports and peripheral modules, including: one 12-bit ADC, one comparator, one 16-bit advanced timer, one 16-bit and one 32-bit general-purpose timer, three 16-bit basic timers, and standard communication interfaces: one I2C, two SPI/I2S, three UART, and one FlexCAN. The product family operates at 2.0V~5.5V, with an ambient temperature range of -40°C~+85°C (industrial grade) and -40°C~+105°C (extended industrial grade, suffix V). Multiple built-in low-power modes meet the requirements of power-sensitive applications. This rich peripheral set makes the microcontroller suitable for a wide range of applications. The product is available in LQFP48, LQFP32, QFN32, and TSSOP20 packages.

Applications

• Industrial IoT devices
• PC peripherals
• Electronic door lock control
• Medical and healthcare devices
• Handheld devices
• Motor control
• Elevator call panels
• Gaming and entertainment

Key features

• Core & System: 32-bit Arm® Cortex®-M0, operating frequency up to 72MHz
• Memory: Up to 64KB Flash, up to 8KB SRAM, bootloader supports in-system programming (ISP) of on-chip Flash
• Clock, Reset & Power Management: 2.0V~5.5V supply voltage, power-on/power-down reset (POR/PDR), programmable voltage detector (PVD), external 4~24MHz high-speed crystal oscillator, factory-trimmed internal 8MHz high-speed RC oscillator, PLL supports CPU up to 72MHz, multiple clock divider modes, internal 40KHz low-speed oscillator
• Low Power: Multiple low-power modes including Sleep, Stop, Deep Stop, and Standby
• 1× 5-channel DMA controller supporting timers, ADC, UART, I2C, SPI, and FlexCAN
• 9 Timers: 1× 16-bit 4-channel advanced control timer (TIM1) with 4-channel PWM output, dead-time generation and break function; 1× 16-bit general-purpose timer (TIM3) and 1× 32-bit general-purpose timer (TIM2) with up to 4 input capture/output compare channels, usable for IR control decoding; 3× 16-bit basic timers (TIM14/TIM16/TIM17) with 1 input capture/output compare and 1 complementary output pair, dead-time generation, break function, and modulator gate for IR control; 2× watchdog timers (independent IWDG and windowed WWDG); 1× SysTick timer: 24-bit down-counter
• Up to 40 fast I/O ports: all I/O pins mappable to 16 external interrupts; all ports support input/output voltages up to VDD
• Up to 7 communication interfaces: 3× UART, 1× I2C, 2× SPI (2× I2S), 1× FlexCAN supporting CAN 2.0B
• 1× 12-bit ADC, 1μs conversion time, up to 13 external input channels, 2 internal input channels, conversion range: 0~V(DDA), configurable sampling time and resolution, on-chip temperature sensor, on-chip voltage sensor
• 1× high-speed analog comparator
• 32-bit hardware divider
• CRC calculation unit
• 96-bit unique device ID (UID)
• Debug: Serial Wire Debug (SWD) interface
• Available in LQFP48, LQFP32, QFN32, and TSSOP20 packages
