NexperiaDatasheet (PDF)

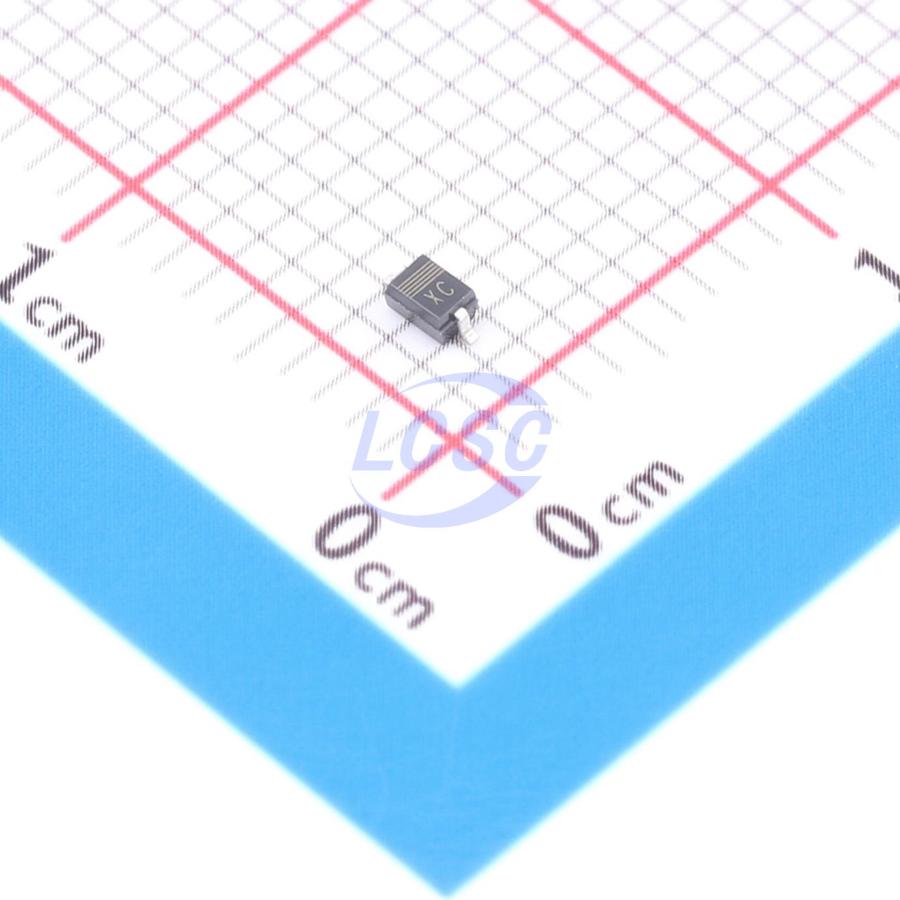

MM3Z20VT1GX
1 Independent 18.86V~21.08V 20V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- MM3Z20VT1GX
- Store part #
- C3729595
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
185 in stock
#C3729595
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.54 | ₹87.70 |
| 50+ | ₹17.12 | ₹856.00 |
| 150+ | ₹16.83 | ₹2,524.50 |
| 500+ | ₹16.55 | ₹8,275.00 |
5 × ₹17.54
₹87.70
excl. GST
₹103.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM3Z20VT1GX
₹87.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@15V
- Zener Voltage(Range)
- 18.86V~21.08V
- Zener Voltage(Nom)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
General- purpose Zener diodes in a very small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Tolerance series: Approximately ± 5%
- Wide working voltage range: nominal 2.4V to 75V
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SZMM3Z20VT1GX#C3739059Nexperia · SOD-323 | Nexperia | SOD-323 | 87,040 | ₹4.87 · 87,040 in stock | View |
 | BZX384-C20,115#C454979Nexperia · SOD-323 | Nexperia | SOD-323 | 46,080 | ₹3.76 · 46,080 in stock | View |
 | BZT52C20SQ#C20600049YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 1,320 | ₹4.67 · 1,320 in stock | View |
 | MM3Z20#C2832611CBI · SOD-323 | CBI | SOD-323 | 1,500 | ₹2.02 · 1,500 in stock | View |
 | MM3Z20W#C2856988JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 3,000 | ₹2.73 · 3,000 in stock | View |
