NexperiaDatasheet (PDF)

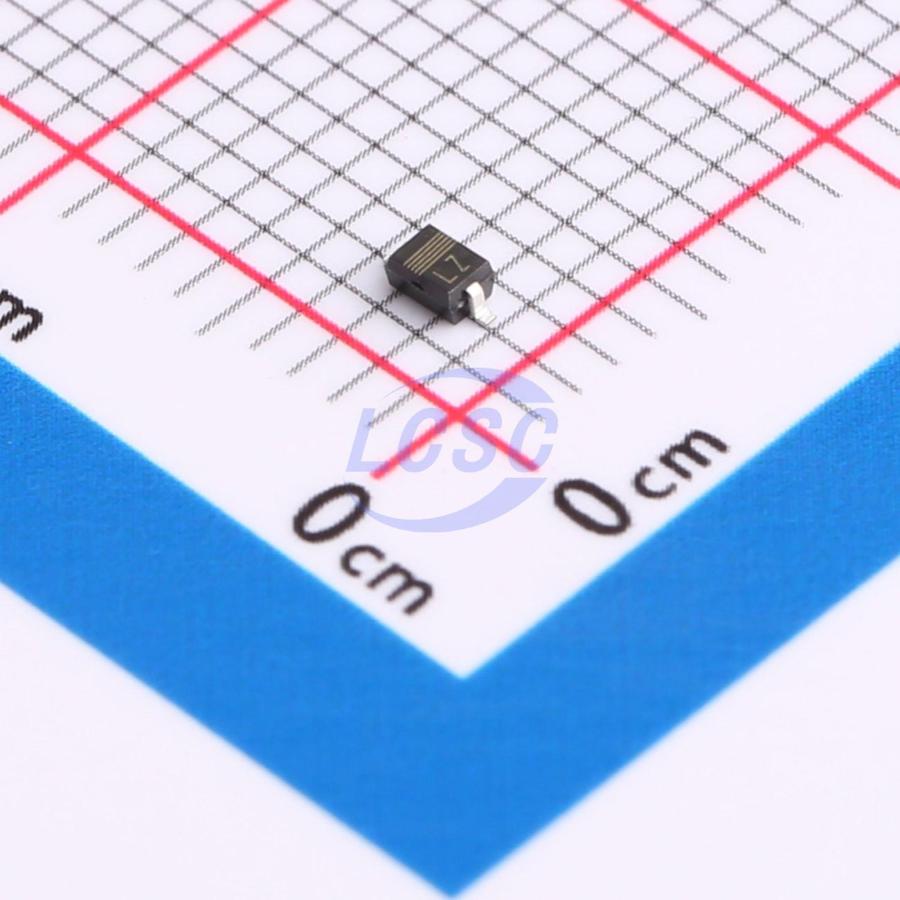

MM3Z8V2T1GX
Zener Diode 8.2V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 8.2V 300mW SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- MM3Z8V2T1GX
- Store part #
- C3739309
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
940 in stock
#C3739309
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.16 | ₹103.20 |
| 200+ | ₹4.06 | ₹812.00 |
| 600+ | ₹3.47 | ₹2,082.00 |
| 3,000+ | ₹3.10 | ₹9,300.00 |
| 9,000+ | ₹2.79 | ₹25,110.00 |
| 21,000+ | ₹2.62 | ₹55,020.00 |
20 × ₹5.16
₹103.20
excl. GST
₹121.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM3Z8V2T1GX
₹103.20 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 500nA@5V
- Zener Voltage(Range)
- 7.76V~8.64V
- Zener Voltage(Nom)
- 8.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.098 g
Overview
General- purpose Zener diodes in a very small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Tolerance series: Approximately ± 5%
- Wide working voltage range: nominal 2.4V to 75V
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SZMM3Z8V2T1GX#C3737310Nexperia · SOD-323 | Nexperia | SOD-323 | 6,000 | ₹6.62 · 6,000 in stock | View |
 | MM3Z8V2#C118606ST(Semtech) · SOD-323 | ST(Semtech) | SOD-323 | 1,550 | ₹2.47 · 1,550 in stock | View |
 | MM3Z8V2W#C2856979JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 2,850 | ₹2.87 · 2,850 in stock | View |
 | MM3Z8V2W#C3019198Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 1,400 | ₹1.84 · 1,400 in stock | View |
 | MM3Z8V2#C401092Jingdao Microelectronics · SOD-323 | Jingdao Microelectronics | SOD-323 | 1,100 | ₹1.87 · 1,100 in stock | View |
