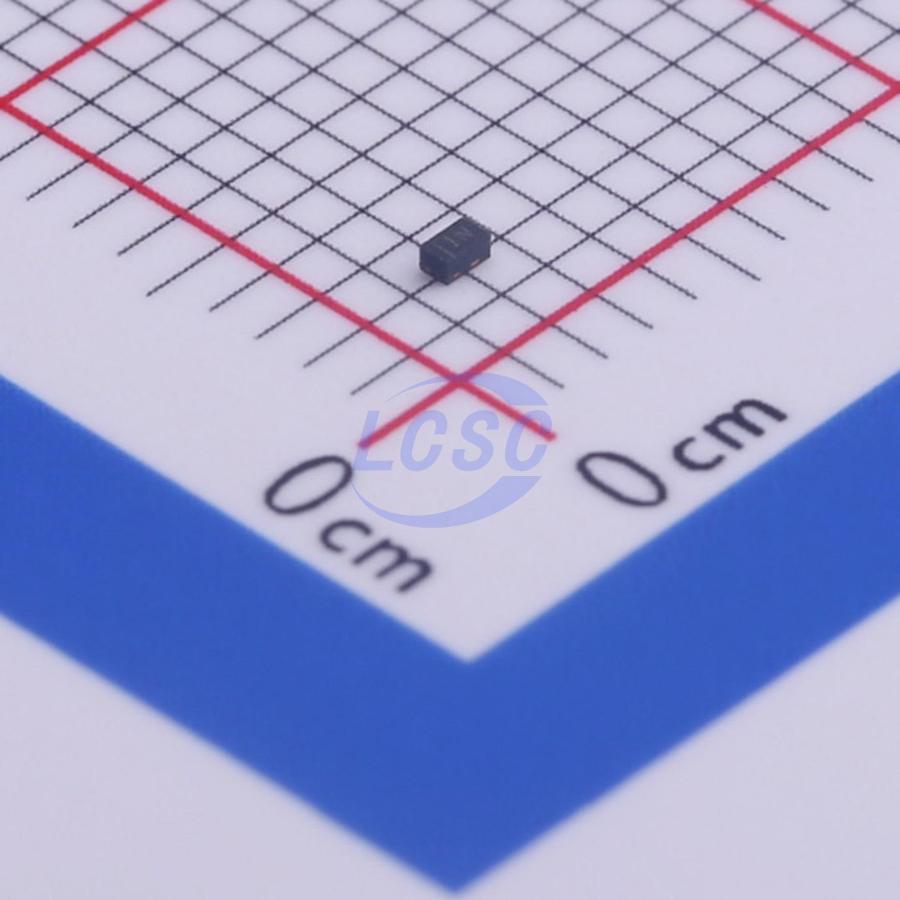

MMBT3904LP-7
Bipolar (BJT) Transistor NPN 40V 200mA 300MHz 1000mW Surface Mount DFN-3(1x0.6)
DFN-3(1x0.6)ROHS3 CompliantActive
TRANS NPN 40V 200mA DFN-3(1x0.6)
- Manufacturer
- DIODES
- Manufacturer part #
- MMBT3904LP-7
- Store part #
- C460099
- Package / case
- DFN-3(1x0.6)
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
858 in stock
#C460099
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.52 | ₹104.52 |
| 10+ | ₹87.60 | ₹876.00 |
| 30+ | ₹79.14 | ₹2,374.20 |
| 100+ | ₹70.69 | ₹7,069.00 |
| 500+ | ₹65.70 | ₹32,850.00 |
| 1,000+ | ₹63.09 | ₹63,090.00 |
1 × ₹104.52
₹104.52
excl. GST
₹123.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBT3904LP-7
₹104.52 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 50nA
- Transition frequency(fT)
- 300MHz
- Collector - Emitter Voltage VCEO
- 40V
- Emitter-Base Voltage VEBO
- 6V
- DC Current Gain
- 100
- Pd - Power Dissipation
- 1W
- Current - Collector(Ic)
- 200mA
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 300mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.009 g
Overview
Key features
- BVCEO > 40 V
- IC = 200 mA High Collector Current
- PD = 1000 mW Power Dissipation
- 0.60 mm² Package Footprint, 13 Times Smaller than SOT23
- 0.5mm Height Package Minimizing Off-Board Profile
- Complementary PNP Type: MMBT3906LP
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMBT3904LP-7B-CN#C42436843ChipNobo · DFN1006-3L | ChipNobo | DFN1006-3L | 60 | ₹4.23 · 60 in stock | View |
 | TK3904LED03#C3031915JSCJ · WBFBP-03E | JSCJ | WBFBP-03E | 12,560 | ₹3.07 · 12,560 in stock | View |
| NST3904MX2T5G#C3195991onsemi · X2DFN-3(0.6x1) | onsemi | X2DFN-3(0.6x1) | 5 | ₹40.27 · 5 in stock | View | |
 | MMBT3904DC#C22470319PJSEMI · DFN-3L(1x0.6) | PJSEMI | DFN-3L(1x0.6) | 6,450 | ₹1.96 · 6,450 in stock | View |
 | PMBT2222AMYL#C552700Nexperia · SOT-883-3 | Nexperia | SOT-883-3 | 10 | ₹13.30 · 10 in stock | View |
