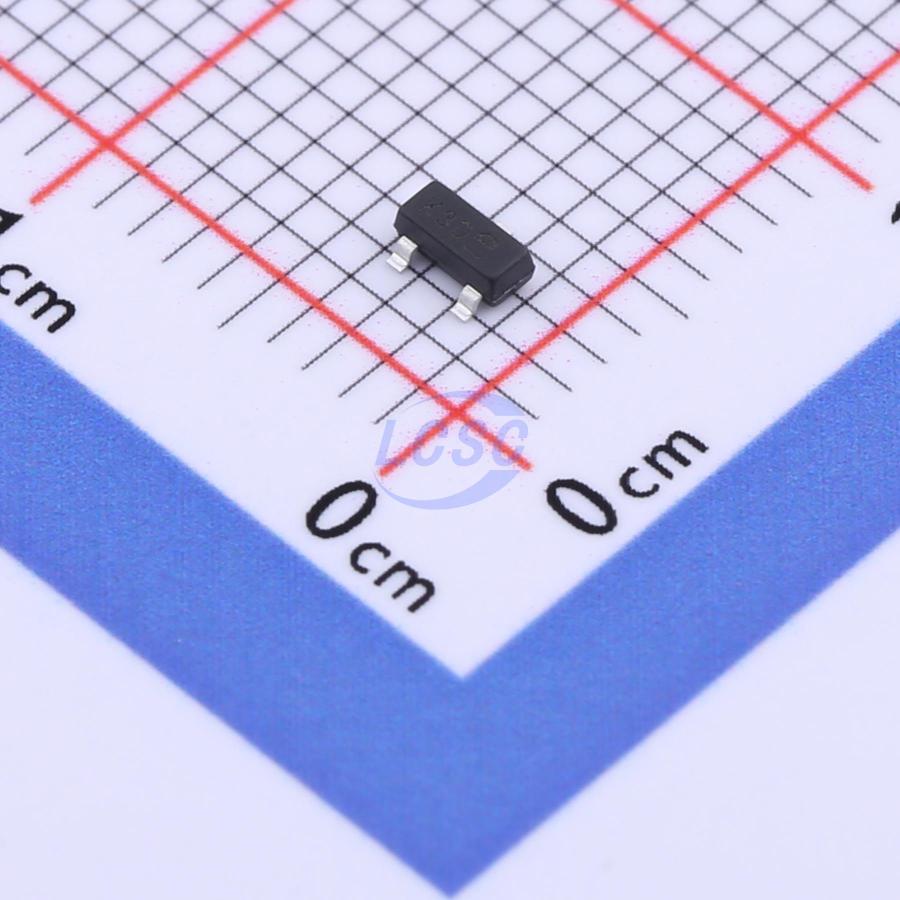

MMBTA14-7-F
30V 20000 300mA NPN SOT-23 Single Bipolar Transistors RoHS
SOT-23ROHS3 CompliantActive
NPN DARLINGTON TRANSISTOR IN SOT23
- Manufacturer
- DIODES
- Manufacturer part #
- MMBTA14-7-F
- Store part #
- C526681
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
315 in stock
#C526681
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.34 | ₹81.70 |
| 50+ | ₹13.07 | ₹653.50 |
| 150+ | ₹11.44 | ₹1,716.00 |
| 500+ | ₹10.21 | ₹5,105.00 |
| 3,000+ | ₹9.23 | ₹27,690.00 |
| 6,000+ | ₹8.75 | ₹52,500.00 |
5 × ₹16.34
₹81.70
excl. GST
₹96.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBTA14-7-F
₹81.70 for 5 + GST
Specifications
- Vbe Saturation(VBE(sat))
- 2V
- Operating Temperature
- -55℃~+150℃@(Tj)
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 125MHz
- Collector - Emitter Voltage VCEO
- 30V
- Emitter-Base Voltage VEBO
- 10V
- DC Current Gain
- 20000
- Pd - Power Dissipation
- 300mW
- Current - Collector(Ic)
- 300mA
- type
- NPN
- Vce Saturation(VCE(sat))
- 1.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- Medium power amplifier and switching applications
- High current gain
- Complementary PNP types: MMBTA63 / MMBTA64
- Fully lead-free, RoHS compliant
- Halogen and antimony free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMBTA14#C2910185JSCJ · SOT-23 | JSCJ | SOT-23 | 1,870 | ₹6.28 · 1,870 in stock | View |
 | MMBTA14#C52117773R+O · SOT-23 | R+O | SOT-23 | 1,470 | ₹8.15 · 1,470 in stock | View |
 | MMBTA13-7-F#C460230DIODES · SOT-23 | DIODES | SOT-23 | 120 | ₹8.35 · 120 in stock | View |
| MMBTA13#C49437730GOODWORK · SOT-23 | GOODWORK | SOT-23 | 1,900 | ₹5.31 · 1,900 in stock | View | |
 | MMBTA13#C52117772R+O · SOT-23 | R+O | SOT-23 | 1,510 | ₹8.11 · 1,510 in stock | View |
