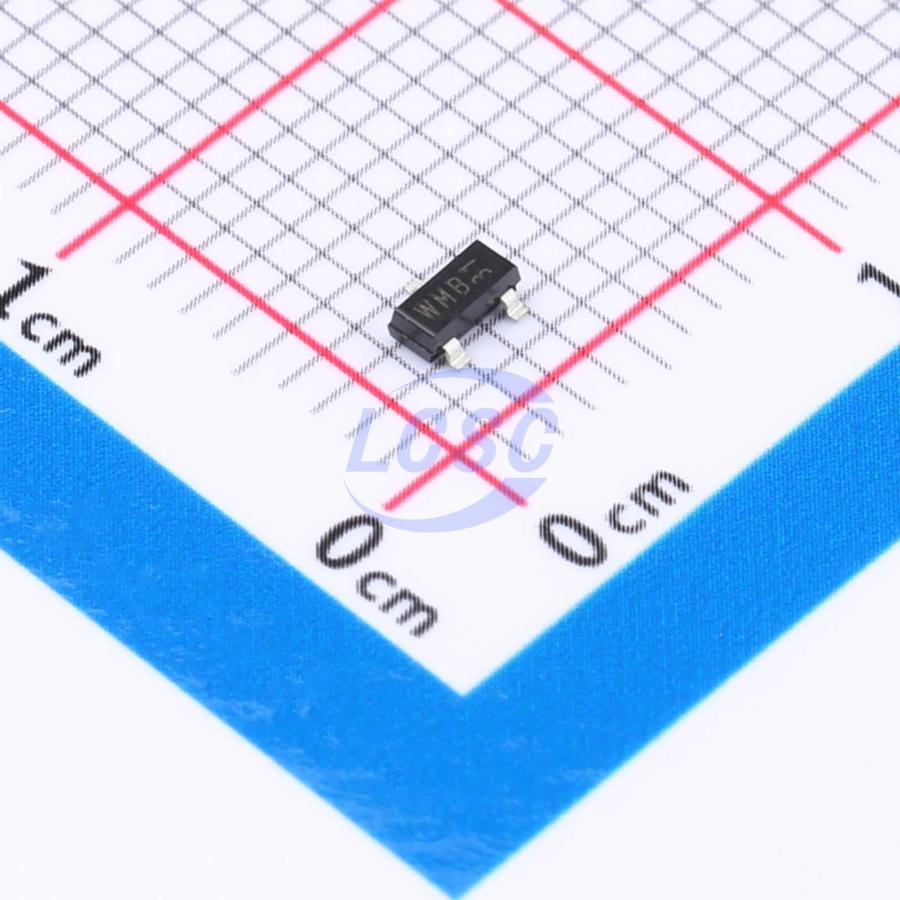

MMBZ15VDL,215
21.2VC Clamp 1.9A@10/1000us Ipp ESD DIODE TO-236AB
ESD DIODE 12.8VWM 21.2VC TO-236AB
- Manufacturer
- Nexperia
- Manufacturer part #
- MMBZ15VDL,215
- Store part #
- C551534
- Package / case
- TO-236AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,740 in stock
#C551534
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.27 | ₹82.70 |
| 100+ | ₹6.50 | ₹650.00 |
| 300+ | ₹5.61 | ₹1,683.00 |
| 3,000+ | ₹4.95 | ₹14,850.00 |
| 6,000+ | ₹4.42 | ₹26,520.00 |
| 9,000+ | ₹4.14 | ₹37,260.00 |
10 × ₹8.27
₹82.70
excl. GST
₹97.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ15VDL,215
₹82.70 for 10 + GST
Specifications
- Clamping Voltage
- 21.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.9A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 40W
- Number of Channels
- 2
- Voltage - Breakdown
- 14.3V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5nA
- Reverse Stand-Off Voltage (Vrwm)
- 12.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
Unidirectional double ElectroStatic Discharge (ESD) protection diodes in a common cathode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package. The devices are designed for ESD and transient overvoltage protection of up to two signal lines.
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- Automotive electronic control units
- Portable electronics
Key features
- Unidirectional ESD protection of two lines
- Bidirectional ESD protection of one line
- Low diode capacitance: Cd ≤ 140 pF
- Rated peak pulse power: PP P M ≤ 40 W
- Ultra low leakage current: I R M ≤ 5 nA
- ESD protection up to 30 kV (contact discharge)
- IEC 61000-4-2; level 4 (ESD)
- IEC 61643-321
- AEC-Q101 qualified
