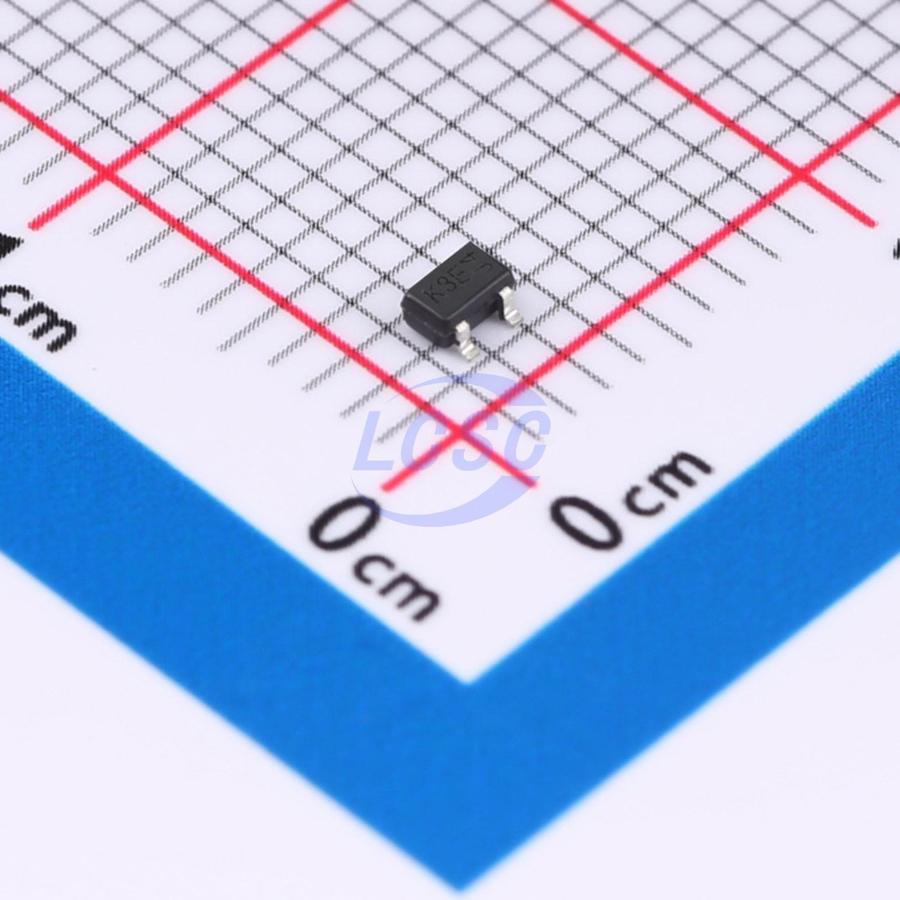

DIODES

MMSTA64-7-F

30V 20000 500mA PNP SOT-323 Single Bipolar Transistors RoHS

SOT-323ROHS3 CompliantActive

PNP Surface Mount Darlington Transistor

Manufacturer: DIODES
Manufacturer part #: MMSTA64-7-F
Store part #: C5249123
Package / case: SOT-323
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

290 in stock

#C5249123

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
10+	₹9.00	₹90.00
100+	₹7.20	₹720.00
300+	₹6.30	₹1,890.00
3,000+	₹5.62	₹16,860.00
6,000+	₹5.08	₹30,480.00
9,000+	₹4.82	₹43,380.00

Quantity (min 10, multiples of 10)

10 × ₹9.00

₹90.00

excl. GST

₹106.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MMSTA64-7-F

₹90.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Vbe Saturation(VBE(sat)): 2V
Operating Temperature: -55℃~+150℃@(Tj)
Current - Collector Cutoff: 100nA
Transition frequency(fT): 125MHz
Collector - Emitter Voltage VCEO: 30V
Emitter-Base Voltage VEBO: 10V
DC Current Gain: 20000
Current - Collector(Ic): 500mA
Pd - Power Dissipation: 200mW
type: PNP
Vce Saturation(VCE(sat)): 1.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.02 g
