MMSZ20T1G

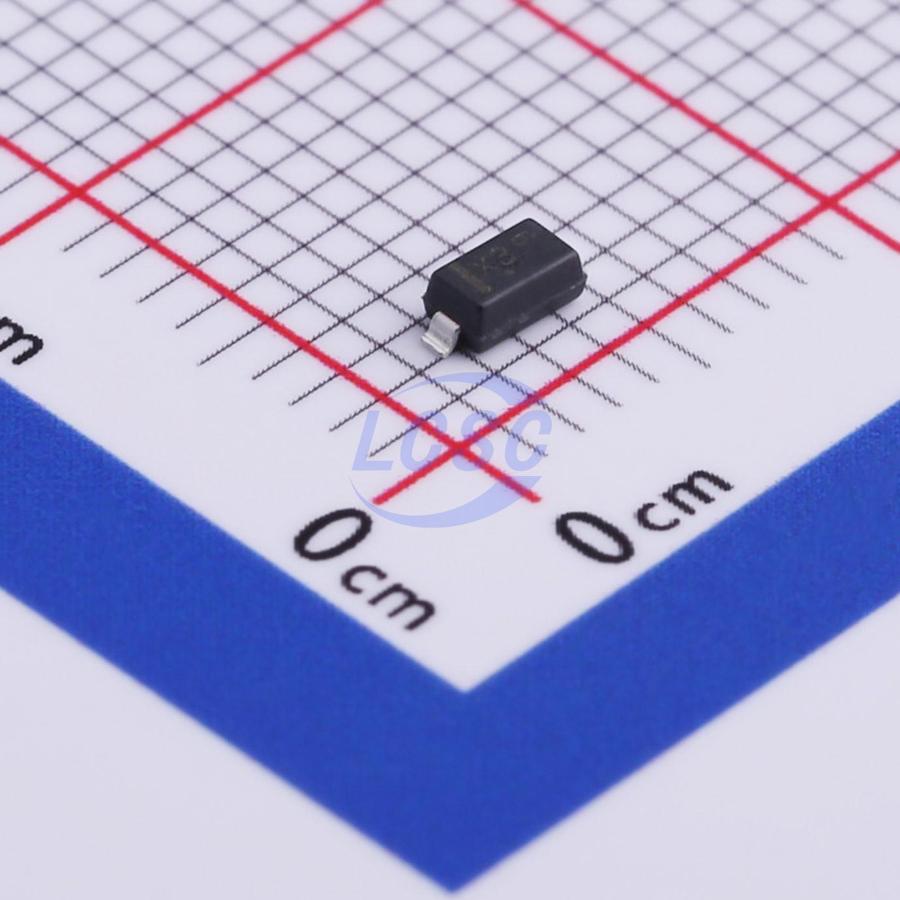

Zener Diode Independent 20V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 20V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ20T1G
- Store part #
- C463086
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
370 in stock
#C463086
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.21 | ₹146.05 |
| 50+ | ₹23.23 | ₹1,161.50 |
| 150+ | ₹20.68 | ₹3,102.00 |
| 500+ | ₹17.49 | ₹8,745.00 |
| 3,000+ | ₹16.06 | ₹48,180.00 |
| 6,000+ | ₹15.21 | ₹91,260.00 |
5 × ₹29.21
₹146.05
excl. GST
₹172.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ20T1G
₹146.05 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA@14V
- Impedance(Zzt)
- 55Ω
- Zener Voltage(Range)
- 19V~21V
- Zener Voltage(Nom)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD- 123 package. These devices provide a convenient alternative to the leadless 34- package style.
Key features
- 500 mW Rating on FR- 4 or FR- 5 Board
- Wide Zener Reverse Voltage Range - 2.4 V to 56 V
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- AEC- Q101 Qualified and PPAP Capable
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- Pb- Free Packages are Available
