onsemiDatasheet (PDF)

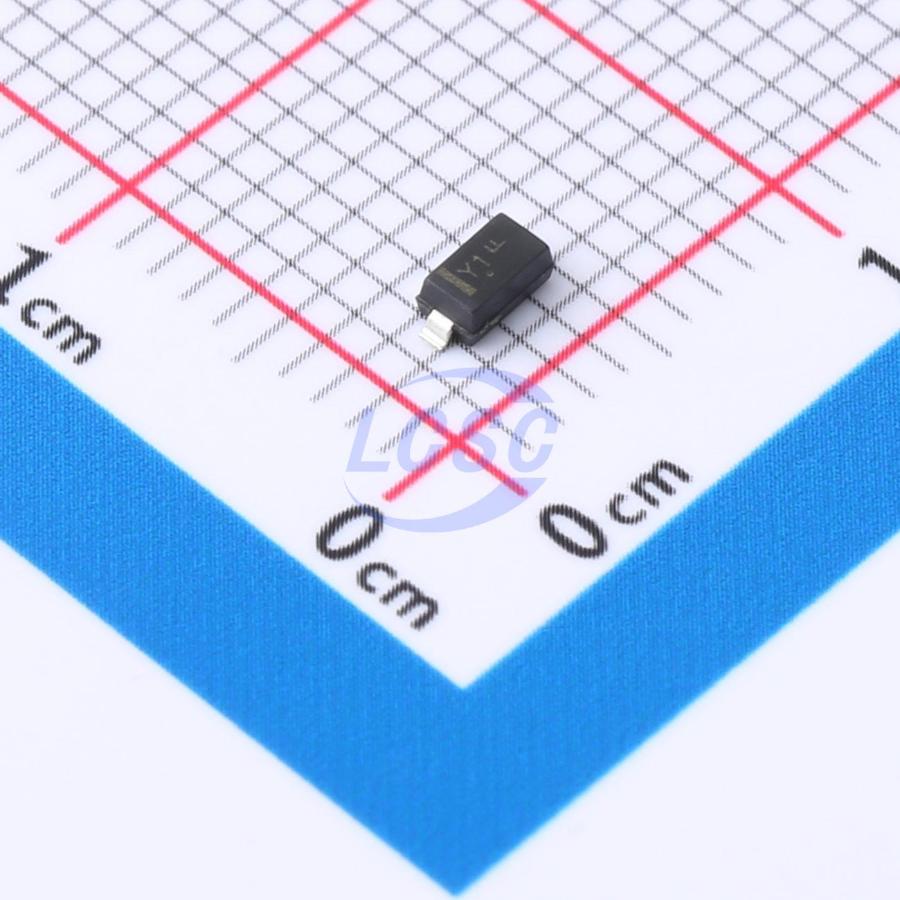

MMSZ27T1G
Zener Diode 27V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 27V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ27T1G
- Store part #
- C462865
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C462865
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.54 | ₹65.40 |
| 100+ | ₹5.23 | ₹523.00 |
| 300+ | ₹4.58 | ₹1,374.00 |
| 3,000+ | ₹4.09 | ₹12,270.00 |
| 6,000+ | ₹3.69 | ₹22,140.00 |
| 9,000+ | ₹3.49 | ₹31,410.00 |
10 × ₹6.54
₹65.40
excl. GST
₹77.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ27T1G
₹65.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 25.65V~28.35V
- Zener Voltage(Nom)
- 27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.064 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD- 123 package. These devices provide a convenient alternative to the leadless 34- package style.
Key features
- 500 mW Rating on FR- 4 or FR- 5 Board
- Wide Zener Reverse Voltage Range - 2.4 V to 56 V
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- AEC- Q101 Qualified and PPAP Capable
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- Pb- Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ27T3G#C896790onsemi · SOD-123 | onsemi | SOD-123 | 30 | ₹51.28 · 30 in stock | View |
 | SZMMSZ27T1G#C604803onsemi · SOD-123 | onsemi | SOD-123 | 10 | ₹64.06 · 10 in stock | View |
 | BZT52C27Q#C2857065JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 4,650 | ₹2.29 · 4,650 in stock | View |
 | BZT52C27#C7427971NH · SOD-123 | NH | SOD-123 | 1,950 | ₹2.02 · 1,950 in stock | View |
 | MMSZ27T1G-TP#C46472999TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 5,450 | ₹2.26 · 5,450 in stock | View |
