MMSZ4689T3G

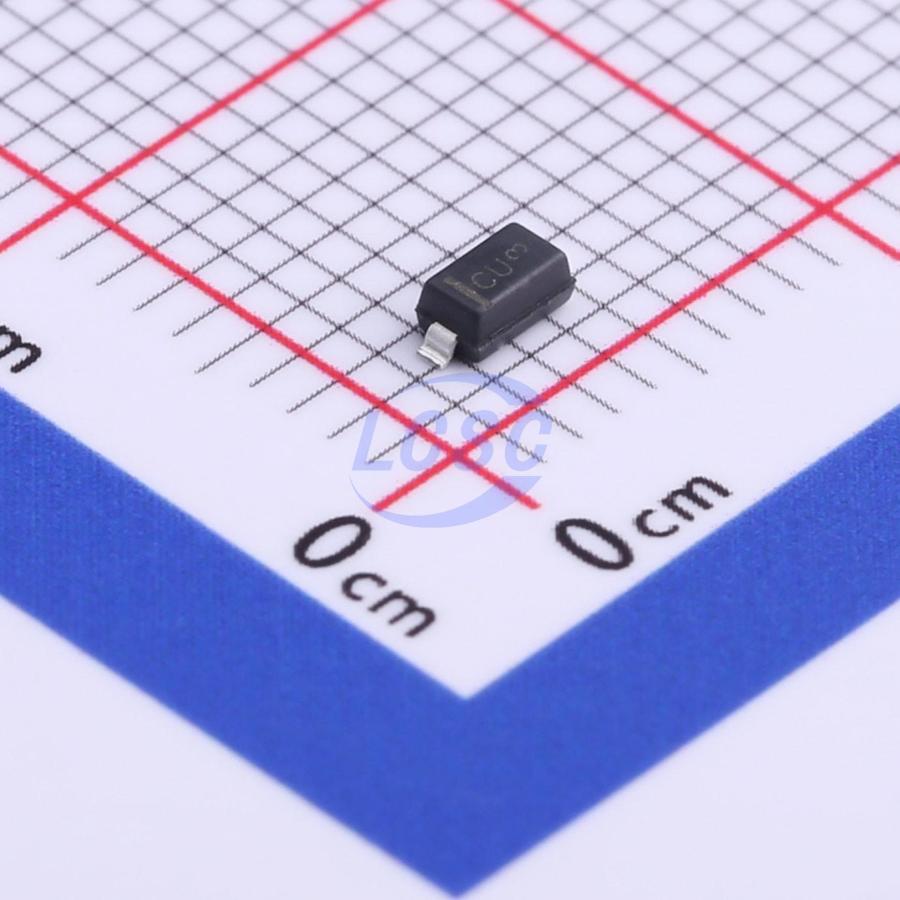

Zener Diode Independent 5.1V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 5.1V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ4689T3G
- Store part #
- C513127
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
375 in stock
#C513127
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.69 | ₹63.45 |
| 50+ | ₹9.95 | ₹497.50 |
| 150+ | ₹8.57 | ₹1,285.50 |
| 500+ | ₹7.54 | ₹3,770.00 |
| 2,500+ | ₹6.72 | ₹16,800.00 |
| 5,000+ | ₹6.30 | ₹31,500.00 |
5 × ₹12.69
₹63.45
excl. GST
₹74.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
MMSZ4689T3G
₹63.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 10uA@3V
- Zener Voltage(Range)
- 4.85V~5.36V
- Zener Voltage(Nom)
- 5.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD−123 package. These devices provide a convenient alternative to the leadless 34−package style.
Key features
- 500 mW Rating on FR−4 or FR−5 Board
- Wide Zener Reverse Voltage Range - 1.8 V to 43 V
- Low Reverse Current (I_ZT) - 50 μA
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
