DIODESDatasheet (PDF)

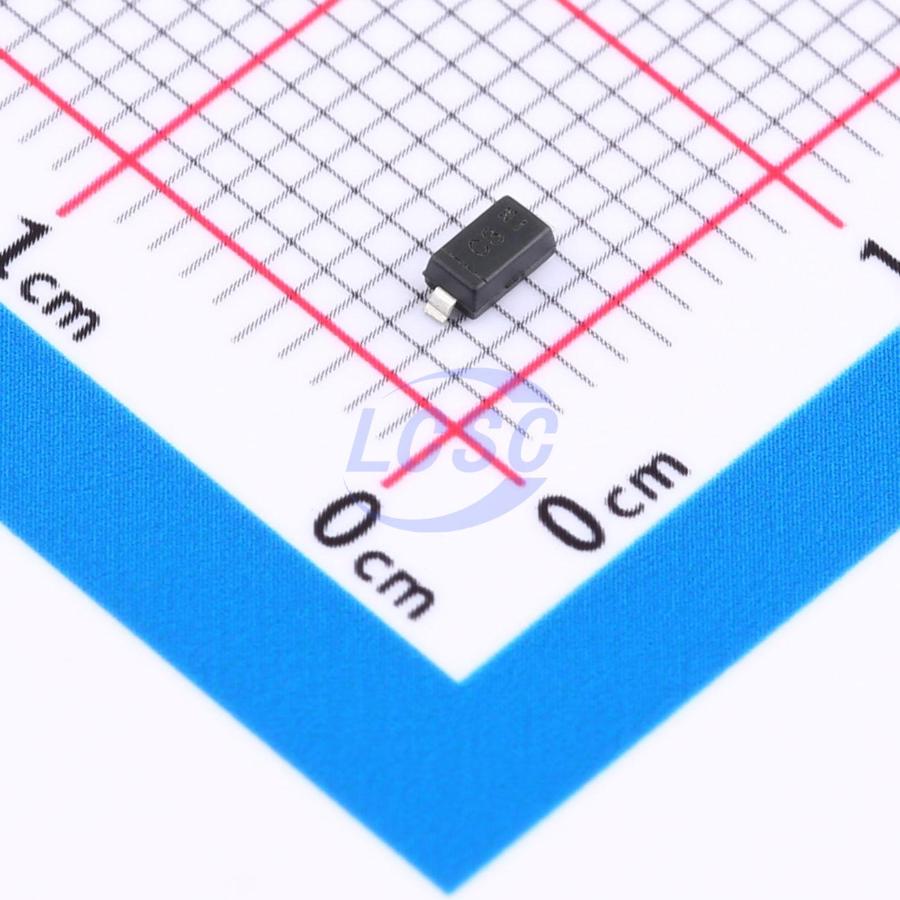

MMSZ5223B-7-F
Zener Diode Independent 2.7V 370mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 2.7V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5223B-7-F
- Store part #
- C2987012
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C2987012
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.28 | ₹52.80 |
| 100+ | ₹4.23 | ₹423.00 |
| 300+ | ₹3.70 | ₹1,110.00 |
| 3,000+ | ₹3.31 | ₹9,930.00 |
| 6,000+ | ₹2.99 | ₹17,940.00 |
| 9,000+ | ₹2.83 | ₹25,470.00 |
10 × ₹5.28
₹52.80
excl. GST
₹62.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5223B-7-F
₹52.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 75uA@1V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 2.57V~2.84V
- Zener Voltage(Nom)
- 2.7V
- Impedance(Zzk)
- 1.3kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Key features
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5223BQ-7-F#C6674048DIODES · SOD-123 | DIODES | SOD-123 | 40 | ₹6.15 · 40 in stock | View |
 | LMSZ5223BT1G#C131756LRC · SOD-123 | LRC | SOD-123 | 100 | ₹2.70 · 100 in stock | View |
 | MMSZ5223B_R1_00001#C2902537PANJIT · SOD-123 | PANJIT | SOD-123 | 840 | ₹4.33 · 840 in stock | View |
 | MMSZ5223BT1G-TP#C46472936TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 1,550 | ₹2.25 · 1,550 in stock | View |
 | MMSZ5223B#C707157Slkor · SOD-123 | Slkor | SOD-123 | 300 | ₹2.96 · 300 in stock | View |
