TECH PUBLICDatasheet (PDF)

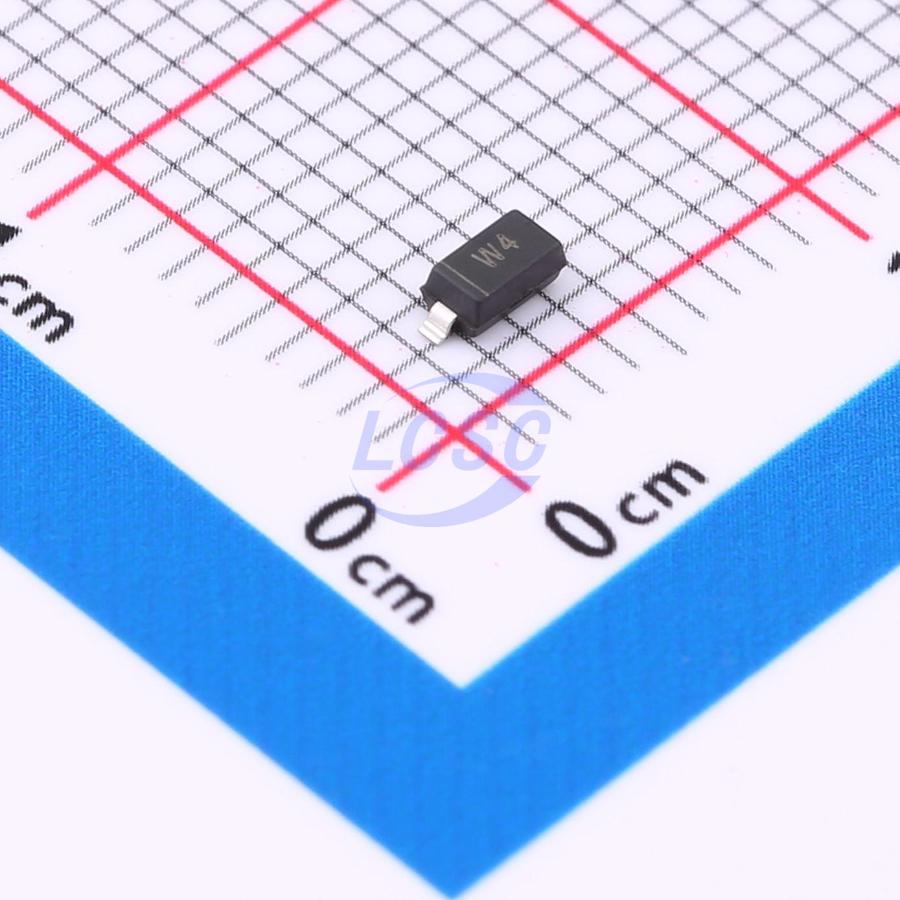

MMSZ5227BT1G-TP
Zener Diode 3.6V 500mW Surface Mount SOD-123
SOD-123RoHSActive
DIODE ZENER 3.6V 500mW SOD-123
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MMSZ5227BT1G-TP
- Store part #
- C46472939
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C46472939
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.20 | ₹60.00 |
| 500+ | ₹1.19 | ₹595.00 |
| 3,000+ | ₹1.16 | ₹3,480.00 |
| 6,000+ | ₹1.15 | ₹6,900.00 |
50 × ₹1.20
₹60.00
excl. GST
₹70.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5227BT1G-TP
₹60.00 for 50 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 15uA@1V
- Impedance(Zzt)
- 24Ω
- Zener Voltage(Range)
- 3.42V~3.78V
- Zener Voltage(Nom)
- 3.6V
- Impedance(Zzk)
- 1.7kΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.033 g
Overview
Applications
- General voltage regulation
- Mobile and handheld systems
- Home appliances
- Industrial automation
- Communications
Key features
- Low Zener impedance
- 500mW power dissipation
- High stability and reliability
- Halogen-free and RoHS compliant
- SOD123 surface mount package
