DIODESDatasheet (PDF)

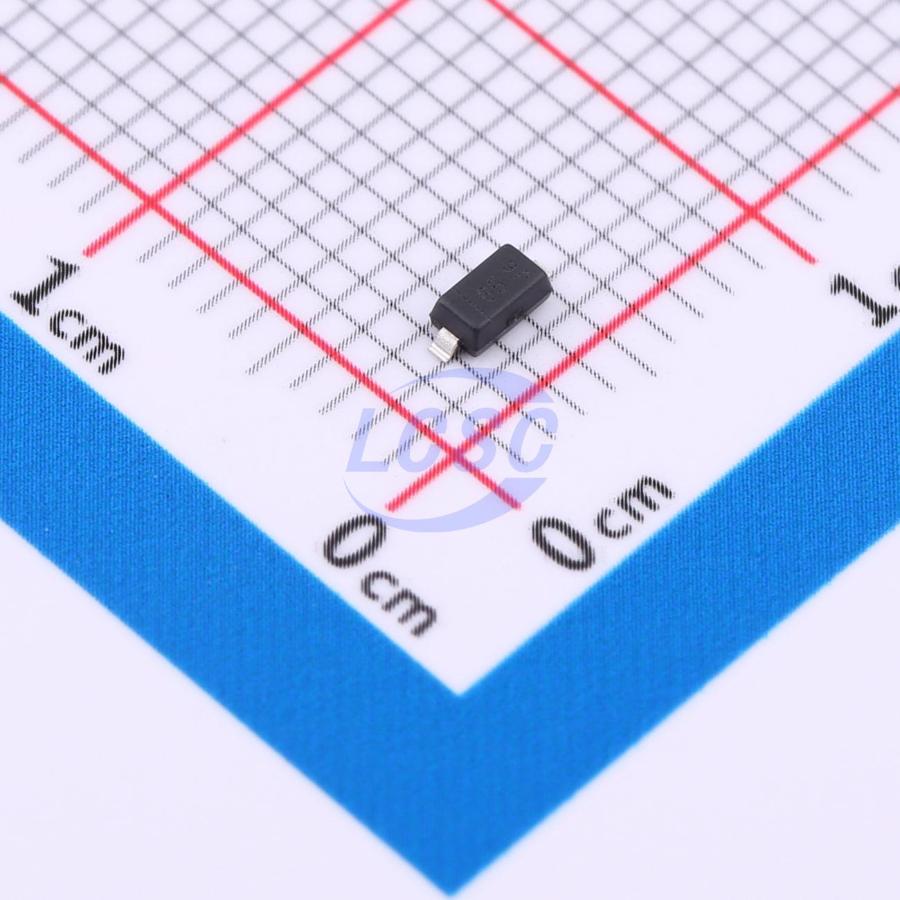

MMSZ5230BQ-7-F
Zener Diode 4.7V 370mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 4.7V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5230BQ-7-F
- Store part #
- C7231112
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C7231112
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.81 | ₹68.10 |
| 100+ | ₹6.72 | ₹672.00 |
| 300+ | ₹6.65 | ₹1,995.00 |
| 1,000+ | ₹6.59 | ₹6,590.00 |
10 × ₹6.81
₹68.10
excl. GST
₹80.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5230BQ-7-F
₹68.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 5uA@2V
- Impedance(Zzt)
- 19Ω
- Zener Voltage(Range)
- 4.47V~4.94V
- Zener Voltage(Nom)
- 4.7V
- Impedance(Zzk)
- 1.9kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
Key features
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5230B-7-F#C151435DIODES · SOD-123 | DIODES | SOD-123 | 11,060 | ₹9.66 · 11,060 in stock | View |
 | MMSZ5230B#C51315461CBI · SOD-123 | CBI | SOD-123 | 6,050 | ₹2.09 · 6,050 in stock | View |
| MM1ZS5230BX#C5364057JingYang · SOD-123 | JingYang | SOD-123 | 2,940 | ₹4.35 · 2,940 in stock | View | |
 | LMSZ5230BT1G#C131750LRC · SOD-123 | LRC | SOD-123 | 2,940 | ₹3.10 · 2,940 in stock | View |
 | MMSZ5230BT1G#C236191onsemi · SOD-123 | onsemi | SOD-123 | 14,270 | ₹6.92 · 14,270 in stock | View |
