DIODESDatasheet (PDF)

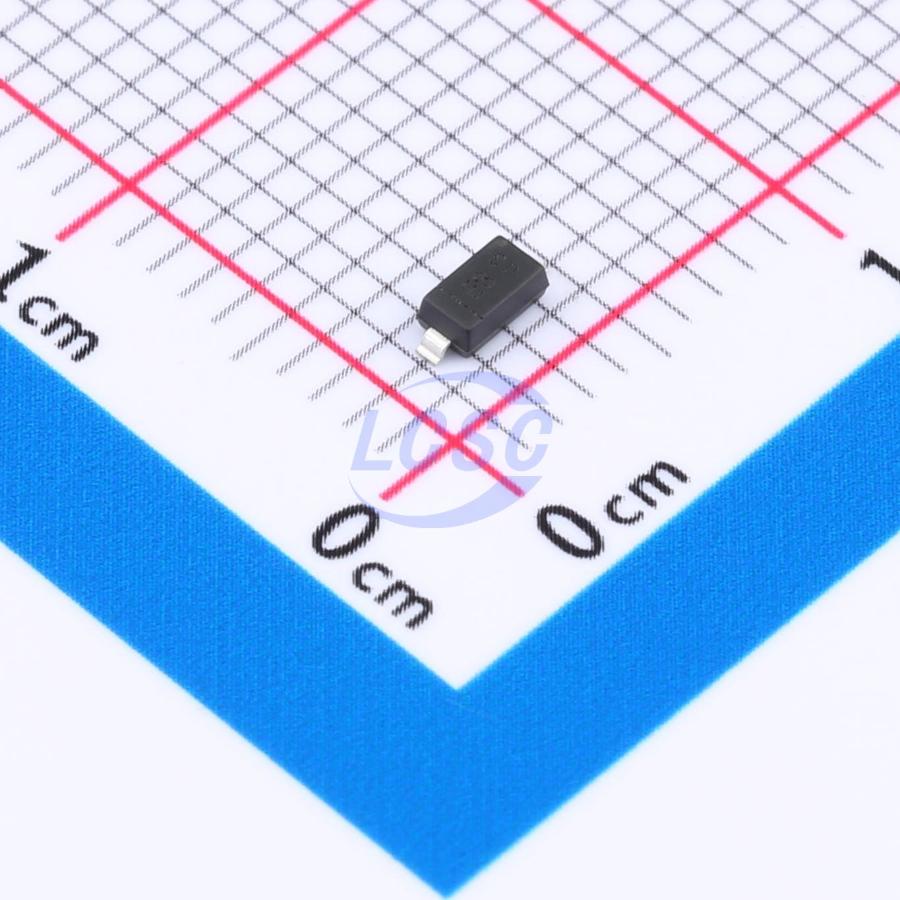

MMSZ5233B
Zener Diode Independent 6V 370mW Surface Mount SOD-123
SOD-123ROHS CompliantActive
DIODE ZENER 6V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5233B
- Store part #
- C5244949
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
245 in stock
#C5244949
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.22 | ₹166.10 |
| 50+ | ₹26.43 | ₹1,321.50 |
| 150+ | ₹23.52 | ₹3,528.00 |
| 500+ | ₹19.90 | ₹9,950.00 |
| 2,500+ | ₹18.28 | ₹45,700.00 |
| 5,000+ | ₹17.32 | ₹86,600.00 |
5 × ₹33.22
₹166.10
excl. GST
₹196.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per bag
MMSZ5233B
₹166.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 5uA@3.5V
- Impedance(Zzt)
- 7Ω
- Zener Voltage(Range)
- 5.7V~6.3V
- Zener Voltage(Nom)
- 6V
- Impedance(Zzk)
- 1.6kΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 500 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
Key features
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5233B-7-F#C151381DIODES · SOD-123 | DIODES | SOD-123 | 5,040 | ₹8.15 · 5,040 in stock | View |
 | LMSZ5233BT1G#C115277LRC · SOD-123 | LRC | SOD-123 | 7,600 | ₹4.35 · 7,600 in stock | View |
 | MMSZ5233BT1G#C145506onsemi · SOD-123 | onsemi | SOD-123 | 60 | ₹7.06 · 60 in stock | View |
 | MMSZ5233B_R1_00001#C2902540PANJIT · SOD-123 | PANJIT | SOD-123 | 1,380 | ₹4.92 · 1,380 in stock | View |
 | MMSZ5233B#C3031841JSCJ · SOD-123 | JSCJ | SOD-123 | 4,880 | ₹4.34 · 4,880 in stock | View |
