onsemiDatasheet (PDF)

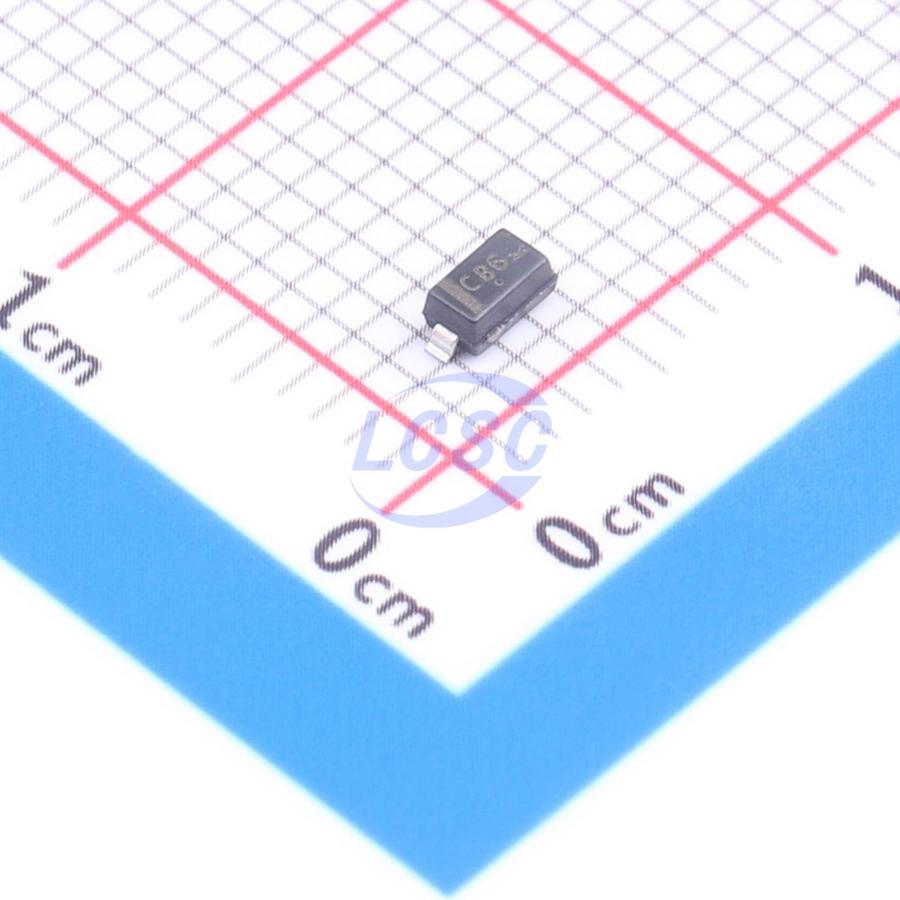

MMSZ5235ET1G
1 Independent 6.46V~7.14V 6.8V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ5235ET1G
- Store part #
- C891726
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
425 in stock
#C891726
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹32.10 | ₹32.10 |
| 10+ | ₹31.22 | ₹312.20 |
| 30+ | ₹30.80 | ₹924.00 |
| 100+ | ₹30.36 | ₹3,036.00 |
1 × ₹32.10
₹32.10
excl. GST
₹37.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5235ET1G
₹32.10 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 3uA@5V
- Impedance(Zzt)
- 5Ω
- Zener Voltage(Range)
- 6.46V~7.14V
- Zener Voltage(Nom)
- 6.8V
- Impedance(Zzk)
- 750Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.029 g
Overview
Key features
- 500 mW Rating on FR - 4 or FR - 5 Board
- Wide Zener Reverse Voltage Range - 2.4V to 110V
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- General Purpose, Medium Current
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Peak Power - 225W (8×20μs)
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
- Pb - Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMSZ5235BT1G#C131748LRC · SOD-123 | LRC | SOD-123 | 3,100 | ₹3.49 · 3,100 in stock | View |
 | MMSZ5235B#C3737724DIOTEC · SOD-123F | DIOTEC | SOD-123F | 90 | ₹7.66 · 90 in stock | View |
 | MMSZ5235BT1G#C66199onsemi · SOD-123 | onsemi | SOD-123 | 2,730 | ₹7.90 · 2,730 in stock | View |
 | MMSZ5235B_R1_00001#C268596PANJIT · SOD-123 | PANJIT | SOD-123 | 2,420 | ₹4.66 · 2,420 in stock | View |
 | MMSZ5235B#C46061850GOODWORK · SOD-123 | GOODWORK | SOD-123 | 450 | ₹1.93 · 450 in stock | View |
