VISHAYDatasheet (PDF)

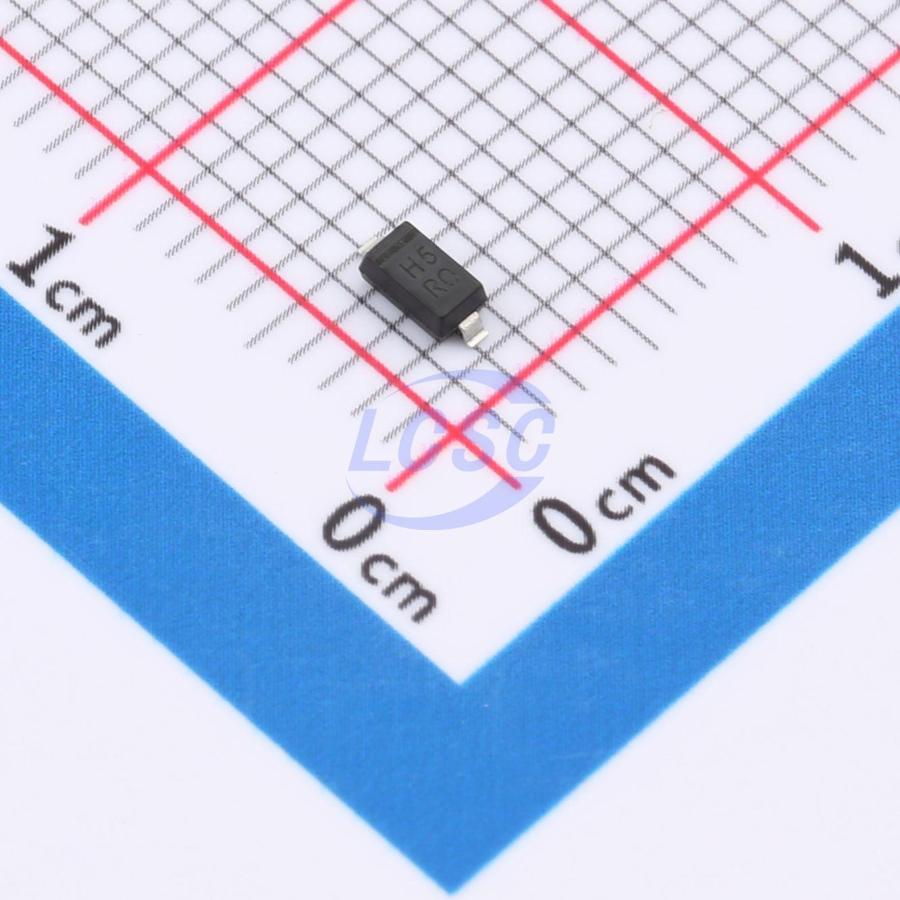

MMSZ5245B-HE3-08
1 Independent 15V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
DIODE ZENER 15V 500mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- MMSZ5245B-HE3-08
- Store part #
- C6991438
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
195 in stock
#C6991438
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.41 | ₹112.05 |
| 50+ | ₹21.92 | ₹1,096.00 |
| 150+ | ₹21.60 | ₹3,240.00 |
| 500+ | ₹21.27 | ₹10,635.00 |
5 × ₹22.41
₹112.05
excl. GST
₹132.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
MMSZ5245B-HE3-08
₹112.05 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@11V
- Impedance(Zzt)
- 16Ω
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Key features
- Silicon planar zener diode
- Standard zener voltage tolerance ±5% with suffix "B" (e.g., MMSZ5225B); suffix "C" tolerance ±2%
- AEC-Q101 compliant versions available
- ESD capability per AEC-Q101: Human Body Model >8 kV, Machine Model >800 V
- Base part number E3 – RoHS compliant, commercial grade
- Base part number HE3_A – RoHS compliant, AEC-Q101 qualified
