onsemiDatasheet (PDF)

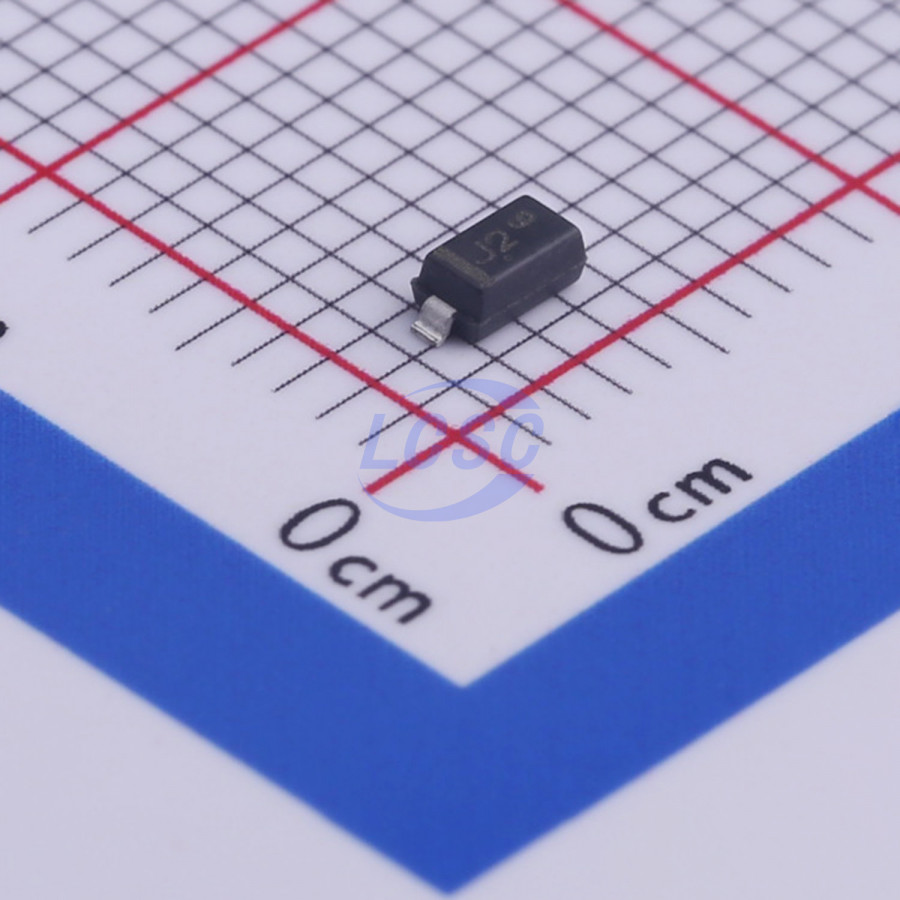

MMSZ5247BT1G
Zener Diode Independent 17V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 17V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ5247BT1G
- Store part #
- C236089
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C236089
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.48 | ₹84.80 |
| 100+ | ₹6.64 | ₹664.00 |
| 300+ | ₹5.72 | ₹1,716.00 |
| 3,000+ | ₹5.03 | ₹15,090.00 |
| 6,000+ | ₹4.48 | ₹26,880.00 |
| 9,000+ | ₹4.21 | ₹37,890.00 |
10 × ₹8.48
₹84.80
excl. GST
₹100.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5247BT1G
₹84.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@13V
- Impedance(Zzt)
- 19Ω
- Zener Voltage(Range)
- 16.15V~17.35V
- Zener Voltage(Nom)
- 17V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
