PANJITDatasheet (PDF)

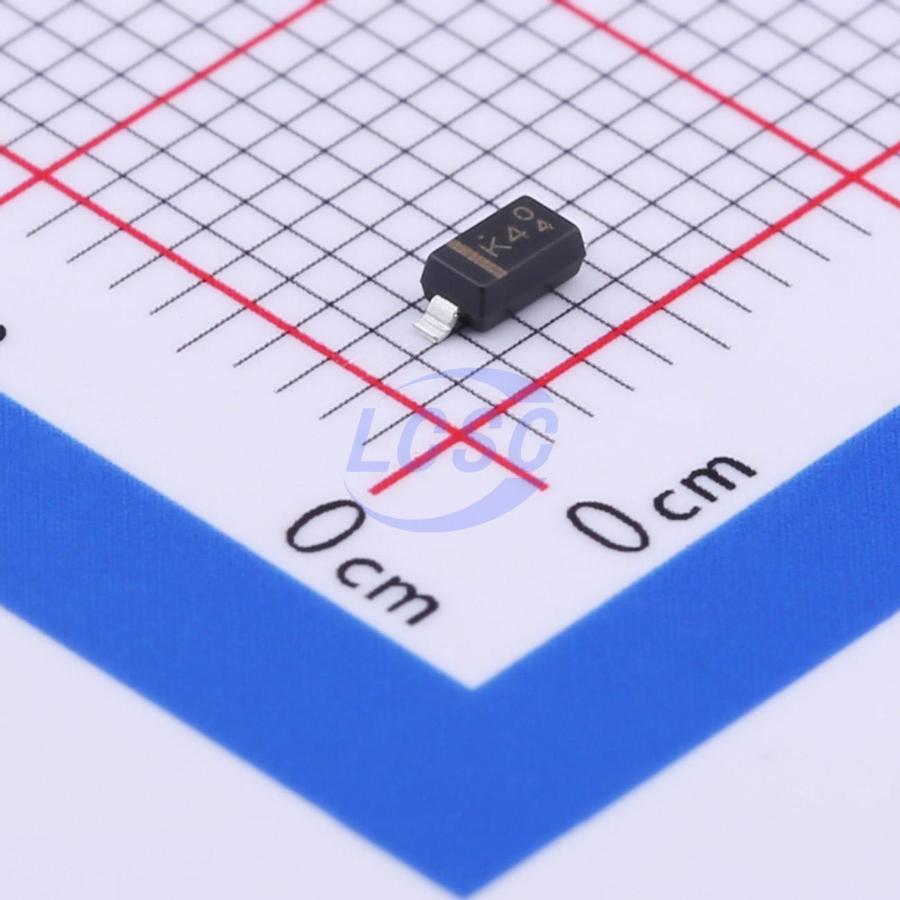

MMSZ5254B_R1_00001
Zener Diode Independent 27V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 27V 500mW SOD-123
- Manufacturer
- PANJIT
- Manufacturer part #
- MMSZ5254B_R1_00001
- Store part #
- C268624
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,500 in stock
#C268624
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.16 | ₹103.20 |
| 200+ | ₹4.10 | ₹820.00 |
| 600+ | ₹3.52 | ₹2,112.00 |
| 3,000+ | ₹2.98 | ₹8,940.00 |
| 9,000+ | ₹2.66 | ₹23,940.00 |
| 21,000+ | ₹2.50 | ₹52,500.00 |
20 × ₹5.16
₹103.20
excl. GST
₹121.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5254B_R1_00001
₹103.20 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@21V
- Impedance(Zzt)
- 41Ω
- Zener Voltage(Range)
- 25.65V~28.35V
- Zener Voltage(Nom)
- 27V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.031 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5254BT1G-TP#C46472955TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 1,150 | ₹2.22 · 1,150 in stock | View |
| MMSZ5254B_R1_00301#C49424320PANJIT · SOD-123 | PANJIT | SOD-123 | 5,980 | ₹3.47 · 5,980 in stock | View | |
 | MMSZ5254B#C499772SMC · SOD-123 | SMC | SOD-123 | 3,280 | ₹4.06 · 3,280 in stock | View |
 | MMSZ5254B#C5277990MSKSEMI · SOD-123 | MSKSEMI | SOD-123 | 860 | ₹3.41 · 860 in stock | View |
 | MM1Z5254B#C7464221ST(Semtech) · SOD-123 | ST(Semtech) | SOD-123 | 850 | ₹2.49 · 850 in stock | View |
