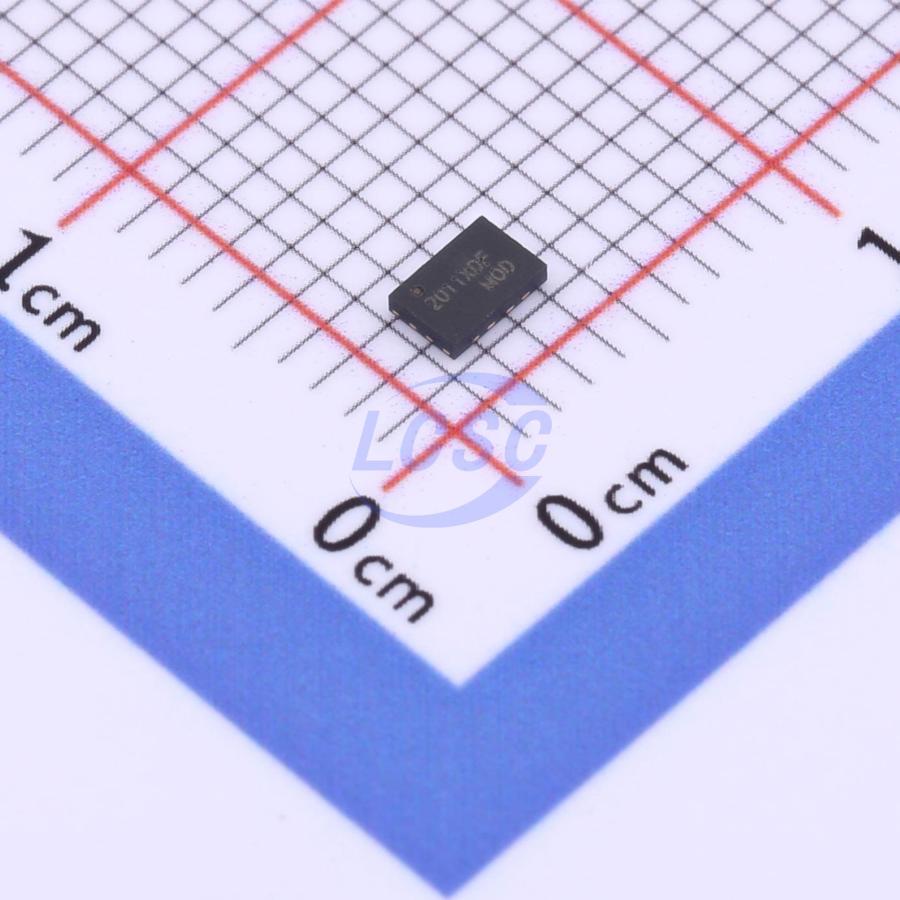

MOD208-DMCF-R

The MOD208 is a high-security authenticator that provides a core set of cryptographic accelerators derived from integrated symmetric (SHA-256) security functions. In addition to the security services provided by the hardware implemented crypto engines, the device integrates a FIPS/NIST true random number generator (RNG), 5Kb of secured NVM. The MOD208 combine key storage with advanced hardware cryptographic accelerators to implement various authentication applications.

Applications

• Secure Download and Boot
• Authentication and Protect Code
• Ecosystem Control Ensure Only OEM/Licensed Nodes and Accessories Work
• Anti-cloning Prevent Building with Identical BOM or Stolen Code
• Message Security Authentication, Message Integrity, and Confidentiality of Network Nodes (IoT)
• Electronic accessories protection

Key features

• Security co-processor with cryptographic algorithm and key storage
• High-end security controller
• Protected Storage for Keys
• Message Authentication Code (HMAC) Options
• High reliability and Security 256-bit Key Length; Storage for Up to 16 Keys
• Internal High-Quality NIST Standard Random Number Generator (RNG)
• Up to 5kB of user security NVM to store Keys and security Data 512 bit OTP (One Time Programmable) Bits for Fixed Information
• Interface Options Available 400k/100K Hz Standard I2C Interface
• 1.65V to 3.6V Supply Voltage Range
• Secure Download and Boot – Ecosystem Control – Message Security
• Anti-Cloning
• Fast and easy integration
• DFN8 and SOP8 Packages
