MSKSEMI

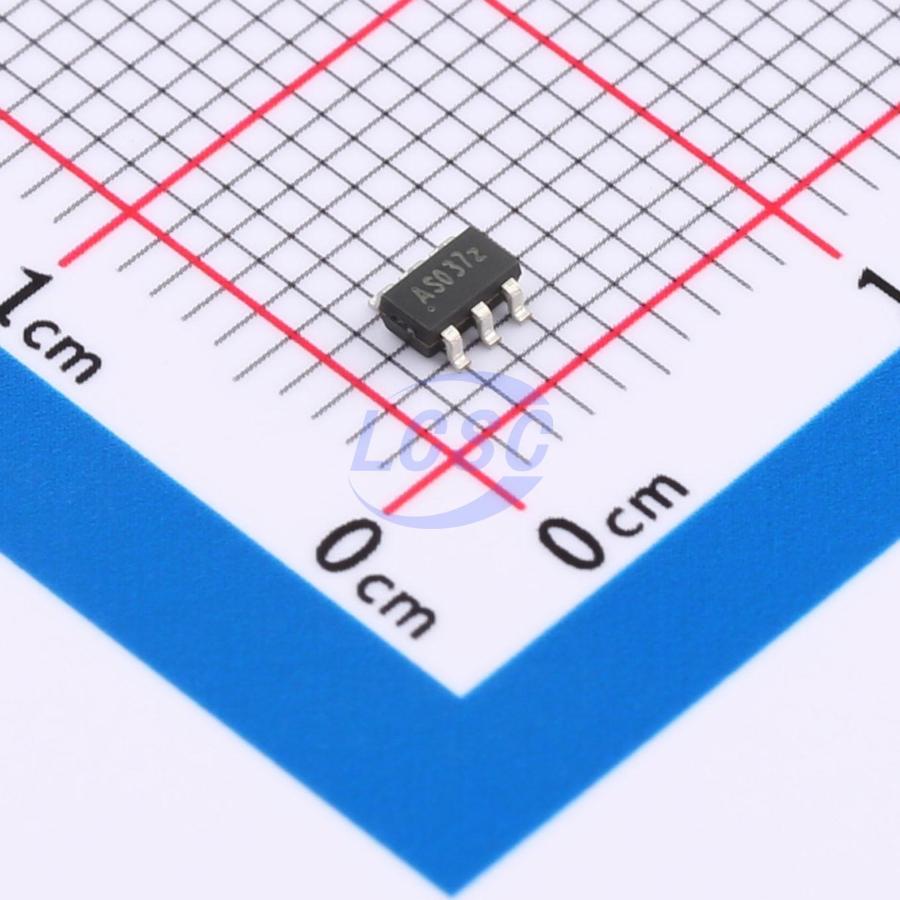

MP1470-MS

400kHz~580kHz Step-down type Adjustable 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

High Efficiency Buck DC/DC Converter

Manufacturer: MSKSEMI
Manufacturer part #: MP1470-MS
Store part #: C30197556
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,125 in stock

#C30197556

Stock & price checked 47 h ago

Quantity	Unit price	Pack price
5+	₹21.76	₹108.80
50+	₹17.16	₹858.00
150+	₹15.19	₹2,278.50
500+	₹12.73	₹6,365.00
3,000+	₹11.17	₹33,510.00
6,000+	₹10.52	₹63,120.00

Quantity (min 5, multiples of 5)

5 × ₹21.76

₹108.80

excl. GST

₹128.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MP1470-MS

₹108.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 400kHz~580kHz
Number of Outputs: 1
Function: Step-down type
Features: Light load efficient mode;Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~21V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 600uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The MP1470-MS is a fully integrated, high efficiency 2A synchronous rectified step-down converter. The MP1470-MS operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The MP1470-MS requires a minimum number of readily available standard external components and is available in an 6-pin SOT-23 ROHS compliant package.

Applications

Distributed Power Systems
Digital Set Top Boxes
Flat Panel Television and Monitors
Wireless and DSL Modems
Notebook Computer

Key features

High Efficiency: Up to 96%
500KHz Frequency Operation
2A Output Current
No Schottky Diode Required
4.5V to 21V Input Voltage Range
0.8V Reference Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
Integrated internal compensation
Stable with Low ESR Ceramic Output Capacitors
Over Current Protection with Hiccup-Mode
Thermal Shutdown
Inrush Current Limit and Soft Start
Available in SOT-23-6 Package
-40°C to +85°C Temperature Range
