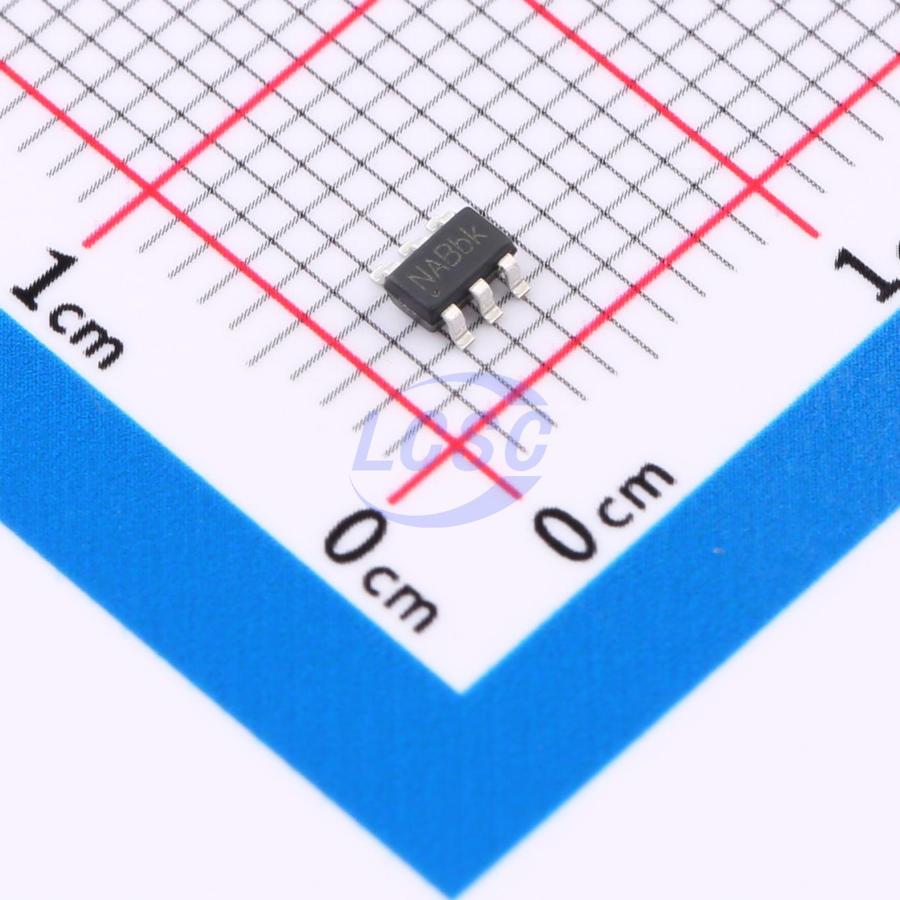

MP2359DJ-LF-Z-JSM
1.4MHz Step-down type Adjustable 1.5A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
30V 1A 1.4MHz Synchronous Step-Down Regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MP2359DJ-LF-Z-JSM
- Store part #
- C18198375
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,355 in stock
#C18198375
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.15 | ₹175.75 |
| 50+ | ₹27.17 | ₹1,358.50 |
| 150+ | ₹23.75 | ₹3,562.50 |
| 500+ | ₹19.47 | ₹9,735.00 |
| 3,000+ | ₹18.31 | ₹54,930.00 |
| 6,000+ | ₹17.17 | ₹1,03,020.00 |
5 × ₹35.15
₹175.75
excl. GST
₹207.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MP2359DJ-LF-Z-JSM
₹175.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.4MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 600uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
MP2359DJ-LF-Z-JSM is a low-EMI, synchronous step-down, switch-mode converter with integrated internal power MOSFETs. It delivers up to 1.5A continuous output current over a wide input supply range with excellent load and line regulation, enabling a very compact solution. The device achieves low-EMI characteristics through well-controlled switching edges. Fault protection features include programmable output overvoltage protection, constant on-time mode, and thermal shutdown. MP2359DJ-LF-Z-JSM requires a minimal number of standard external components. It is available in a SOT23-6 package.
Applications
- Wireless & DSL modems
- IoT applications
- Digital cameras, camcorders & portable instruments
Key features
- 4.0V to 30V wide input voltage range
- 1.5A continuous output current
- 1.2MHz switching frequency
- Short-circuit protection with hiccup mode
- Built-in overcurrent limiting
- Continuous conduction mode for low noise and low EMI
- Integrated internal soft-start
- 200/120mΩ low on-resistance internal MOSFETs
- Output voltage adjustable from 0.8V
- 95% maximum duty cycle
- Thermal shutdown
- Current mode control
- MSL3 package rating
