MSKSEMIDatasheet (PDF)

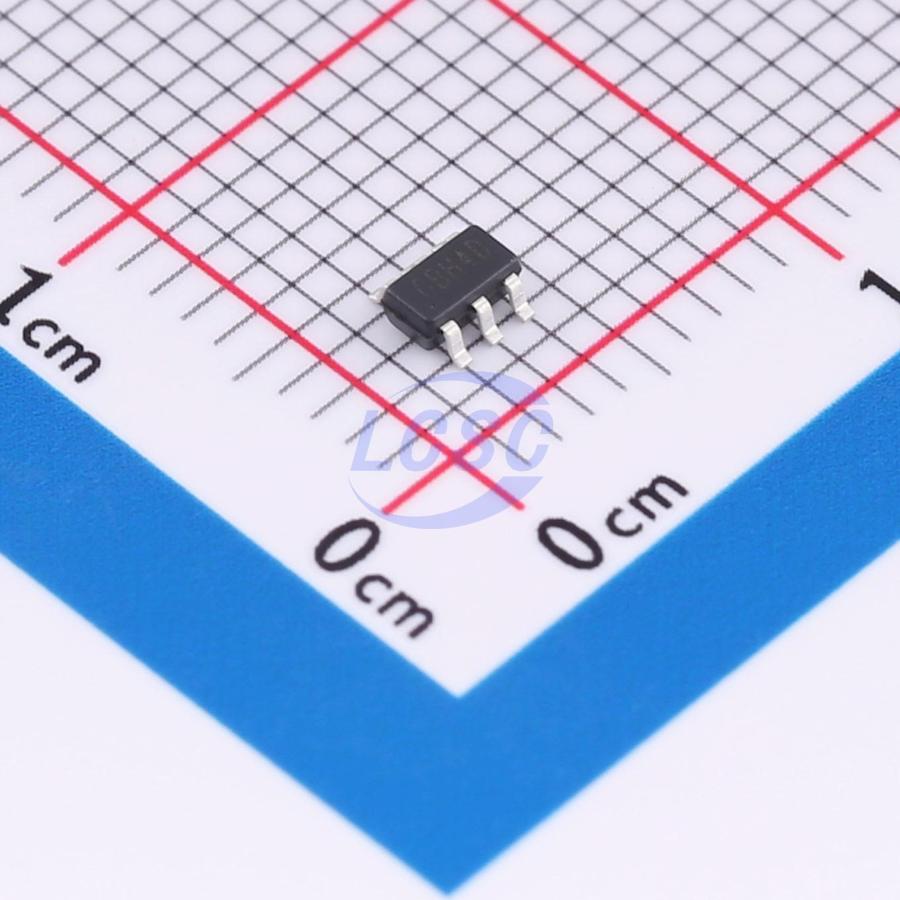

MP2359DJ-LF-Z-MS
1.4MHz Step-down type Adjustable 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High-Frequency Synchronous Rectified Step-Down Switch-Mode Converter
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MP2359DJ-LF-Z-MS
- Store part #
- C30197555
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,795 in stock
#C30197555
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.25 | ₹121.25 |
| 50+ | ₹19.33 | ₹966.50 |
| 150+ | ₹17.21 | ₹2,581.50 |
| 500+ | ₹14.57 | ₹7,285.00 |
| 3,000+ | ₹12.08 | ₹36,240.00 |
| 6,000+ | ₹11.36 | ₹68,160.00 |
5 × ₹24.25
₹121.25
excl. GST
₹143.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MP2359DJ-LF-Z-MS
₹121.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.4MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The MP2359DJ-LF-Z-MS is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 1.5A peak output current over a wide input supply range, with excellent load and line regulation. The MP2359DJ-LF-Z-MS requires a minimal number of readily available, external components and is available in a space saving SOT-23-6 package.
Applications
- CCTV Camera
- Flat-Panel Television and Monitor
- Battery Charger
- Distributed Power Systems
Key features
- Wide 4V to 30V Operating Input Range
- 1.2A Continuous Output Current
- 1.4MHz Switching Frequency
- Short Protection with Hiccup-Mode
- Built-in Over Current Limit
- Built-in Over Voltage Protection
- Force-PWM Mode
- Internal Soft-Start
- 200mΩ/150mΩ Low RDS(ON) Internal Power MOSFETs
- Output Adjustable from 0.8V
- No Schottky Diode Required
- Integrated internal compensation
- Thermal Shutdown
- Available in SOT23-6 Package
- -40°C to +85°C Temperature Range
