Tokmas

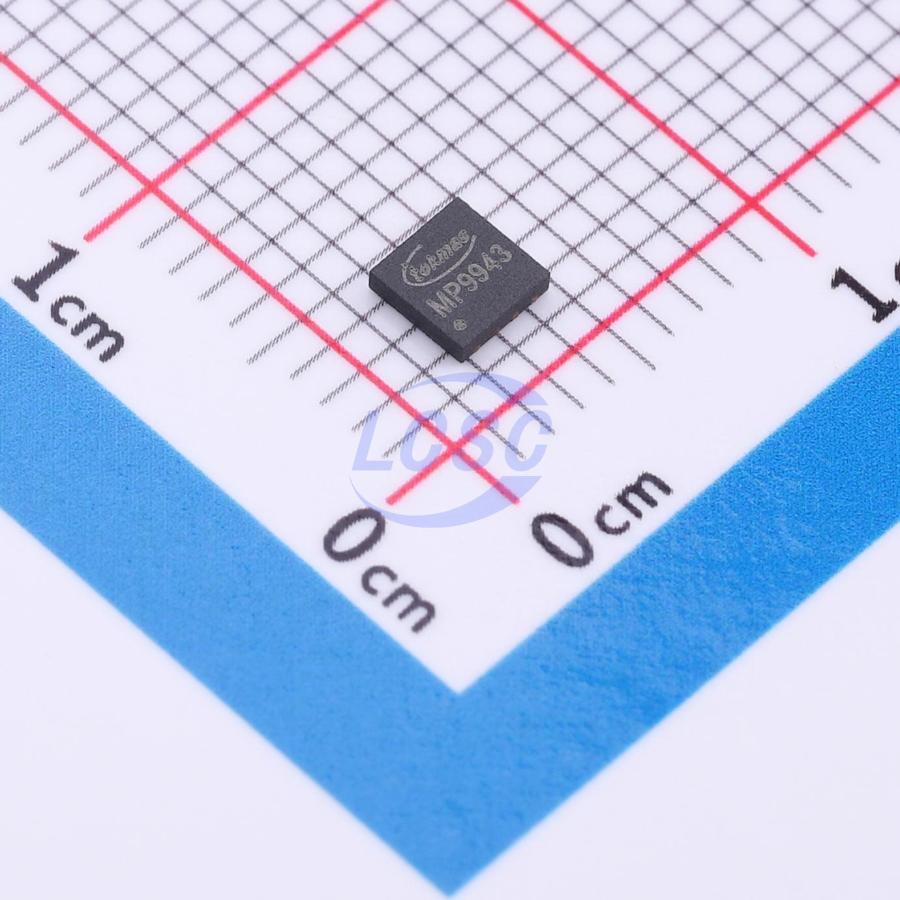

MP9943GQ(TOKMAS)

Step-down type 350kHz~470kHz Adjustable 0V~24V 3A QFN-8(3x3) Voltage Regulators - DC DC Switching Regulators

QFN-8(3x3)RoHSActive

Manufacturer: Tokmas
Manufacturer part #: MP9943GQ(TOKMAS)
Store part #: C51889390
Package / case: QFN-8(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,488 in stock

#C51889390

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹193.70	₹193.70
10+	₹160.08	₹1,600.80
30+	₹141.65	₹4,249.50
100+	₹120.83	₹12,083.00
500+	₹111.71	₹55,855.00
1,000+	₹107.37	₹1,07,370.00

Quantity (min 1)

1 × ₹193.70

₹193.70

excl. GST

₹228.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MP9943GQ(TOKMAS)

₹193.70 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Number of Outputs: 1
Function: Step-down type
Frequency - Switching: 350kHz~470kHz
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Operating status indication;Built-in LDO regulator;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3V~36V
Switch tube (built-in/external): Built-in
Output Voltage: 0V~24V
Output Current: 3A
Quiescent Current: 30uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.127 g

Overview

MP9943 is a high-efficiency synchronous monolithic step-down switching regulator with integrated internal high-side and low-side MOSFETs. It employs peak current mode control for fast loop response and delivers up to 3A output current. The MP9943 operates over a wide input voltage range of 3.0V to 36V with a quiescent current as low as 30μA. Standard features include thermal shutdown, undervoltage lockout, enable control, and a power-good indicator. Cycle-by-cycle current limiting and hiccup protection are provided during overload or output short-circuit conditions. The thermal shutdown feature ensures reliable and fault-tolerant operation. This device is a synchronous step-down switching regulator with integrated high-side and low-side power MOSFETs. The MP9943 delivers 3A output current at very high efficiency from light load to full load. Features include a wide input voltage range of 3.0V to 36V and a 410 kHz switching frequency. Internal soft-start limits inrush current during power-up. The MP9943 also integrates internal compensation to simplify loop design. Another key feature is its extremely low operating quiescent current, making it well-suited for battery-powered applications.

Applications

Cockpit systems
Advanced driver assistance systems
Robotic vacuum cleaners
Drones
Power tools
Home appliances
GPS trackers
Industrial and medical power supplies

Key features

Wide input voltage range: 3.0V to 36V
410kHz switching frequency
3A output current capability
Low quiescent current: 30μA typical at 12V input to 3.3V output
1V reference accuracy ±1.5% over -40°C to 125°C
Peak efficiency >95% typical at 12V input to 5V output
Minimum on-time: 40ns typical
Internal compensation
Precision enable
Cycle-by-cycle current limiting and hiccup protection during overload or short circuit
