KNSCHADatasheet (PDF)
MPX224K31C3KN15690

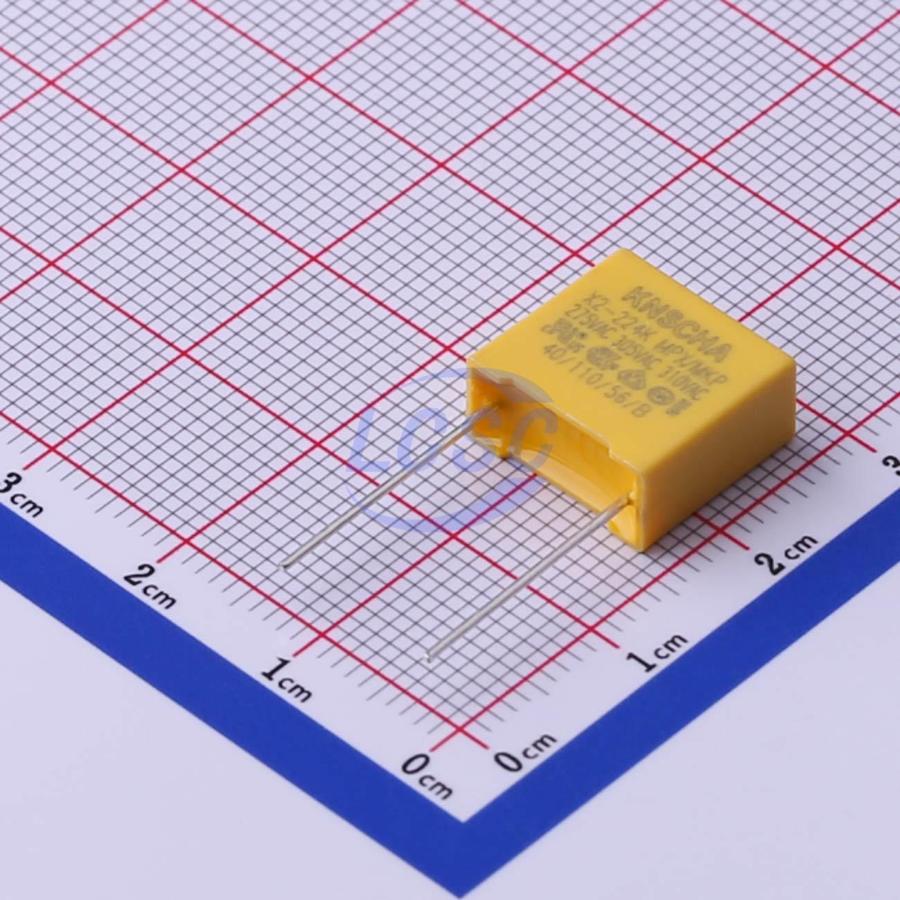

220nF ±10% 275V 305V 310V Safety Capacitor X2 Through Hole,P=10mm
Through Hole,P=10mmROHS CompliantActive
CAP SAFETY 220nF ±10% 275V 305V 310V TH
- Manufacturer
- KNSCHA
- Manufacturer part #
- MPX224K31C3KN15690
- Store part #
- C504197
- Package / case
- Through Hole,P=10mm
- Category
- Ceramic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,14,340 in stock
#C504197
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.40 | ₹74.00 |
| 100+ | ₹6.03 | ₹603.00 |
| 300+ | ₹5.36 | ₹1,608.00 |
| 1,000+ | ₹4.27 | ₹4,270.00 |
| 5,000+ | ₹3.88 | ₹19,400.00 |
| 10,000+ | ₹3.66 | ₹36,600.00 |
10 × ₹7.40
₹74.00
excl. GST
₹87.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
MPX224K31C3KN15690
₹74.00 for 10 + GST
Specifications
- Capacitance
- 220nF
- Tolerance
- ±10%
- Operating Temperature
- -40℃~+110℃
- Ratings
- X2
- safety certification
- UL;CUL;VDE;ENEC;KC;CQC
- Voltage(AC)
- 275V;305V;310V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1.406 g
Overview
Applications
- Widely used in anti-interference applications such as power line crossing
Key features
- Overvoltage surge withstanding capability
- Excellent temperature characteristics
- Good self-healing performance
- Superior moisture resistance
- Superior flame retardancy
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MPX224K31C1KN206G0#C2981463KNSCHA · Through Hole,P=10mm | KNSCHA | Through Hole,P=10mm | 70 | ₹11.84 · 70 in stock | View |
 | MPX224K31C3KN15600#C489075KNSCHA · Through Hole,P=10mm | KNSCHA | Through Hole,P=10mm | 61,920 | ₹7.54 · 61,920 in stock | View |
 | MPX224K310V57X20156#C5263870KNSCHA · Through Hole,P=10mm | KNSCHA | Through Hole,P=10mm | On request | Price on request | Quote |
