TDKDatasheet (PDF)

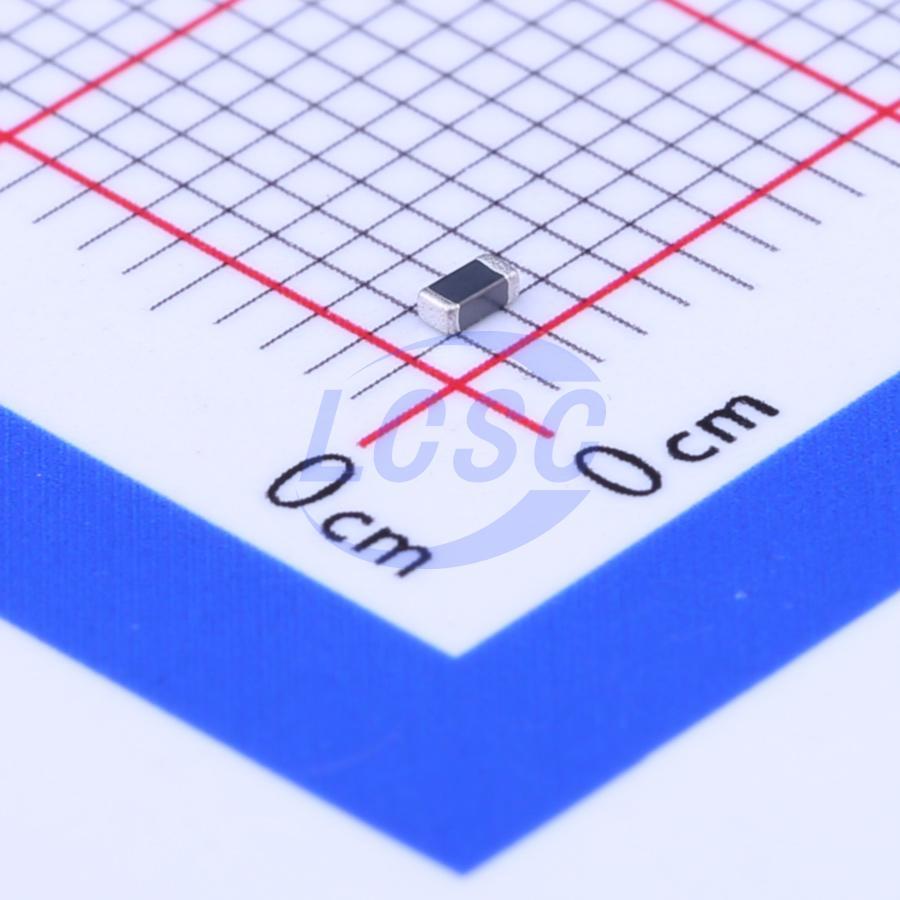

MPZ1608S101ATAH0
100Ω@100MHz 1 Line Ferrite Bead 0603 3A 30mΩ
Popular0603ROHS3 CompliantActive
FERRITE BEAD 100Ω 0603 1LN
- Manufacturer
- TDK
- Manufacturer part #
- MPZ1608S101ATAH0
- Store part #
- C107332
- Package / case
- 0603
- Category
- Ferrite Beads and Chips
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,82,800 in stock
#C107332
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹1.93 | ₹19.30 |
| 100+ | ₹1.49 | ₹149.00 |
| 300+ | ₹1.26 | ₹378.00 |
| 1,000+ | ₹1.11 | ₹1,110.00 |
| 4,000+ | ₹0.9923 | ₹3,969.20 |
| 8,000+ | ₹0.9261 | ₹7,408.80 |
10 × ₹1.93
₹19.30
excl. GST
₹22.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MPZ1608S101ATAH0
₹19.30 for 10 + GST
Specifications
- DC Resistance(DCR)
- 30mΩ
- Operating Temperature
- -55℃~+125℃
- Number of Lines
- 1
- Tolerance
- ±25%
- Current Rating
- 3A
- Impedance @ Frequency
- 100Ω@100MHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
Applications
- Noise removal for mobile devices such as smartphones and tablet terminals, and various modules.
- Noise removal for PCs and recorders, household appliances such as STBs, smart grids, and industrial equipment.
Key features
- Noise reduction solution for power line.
- Compared to the MMZ series, has low direct current resistance for compatibility with large currents, optimal for low power consumption.
- Various frequency characteristics with 5 materials of different features for countermeasures against everything from general signals to high - speed signals.
- Performs well even in signal lines where low direct current resistance is required.
- Operating temperature range: -55 to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BLM18KG101TN1D#C160981muRata · 0603 | muRata | 0603 | 46,780 | ₹4.79 · 46,780 in stock | View |
 | MPZ1608S101ATDH5#C307769TDK · 0603 | TDK | 0603 | 25,920 | ₹3.72 · 25,920 in stock | View |
 | BLM18KG101TH1D#C710370muRata · 0603 | muRata | 0603 | 1,580 | ₹5.72 · 1,580 in stock | View |
 | BLM18KG101TZ1D#C883583muRata · 0603 | muRata | 0603 | 3,200 | ₹4.25 · 3,200 in stock | View |
 | YI160808Z101-3R0T#C3011210YJYCOIN · 0603 | YJYCOIN | 0603 | 10,350 | ₹2.57 · 10,350 in stock | View |
