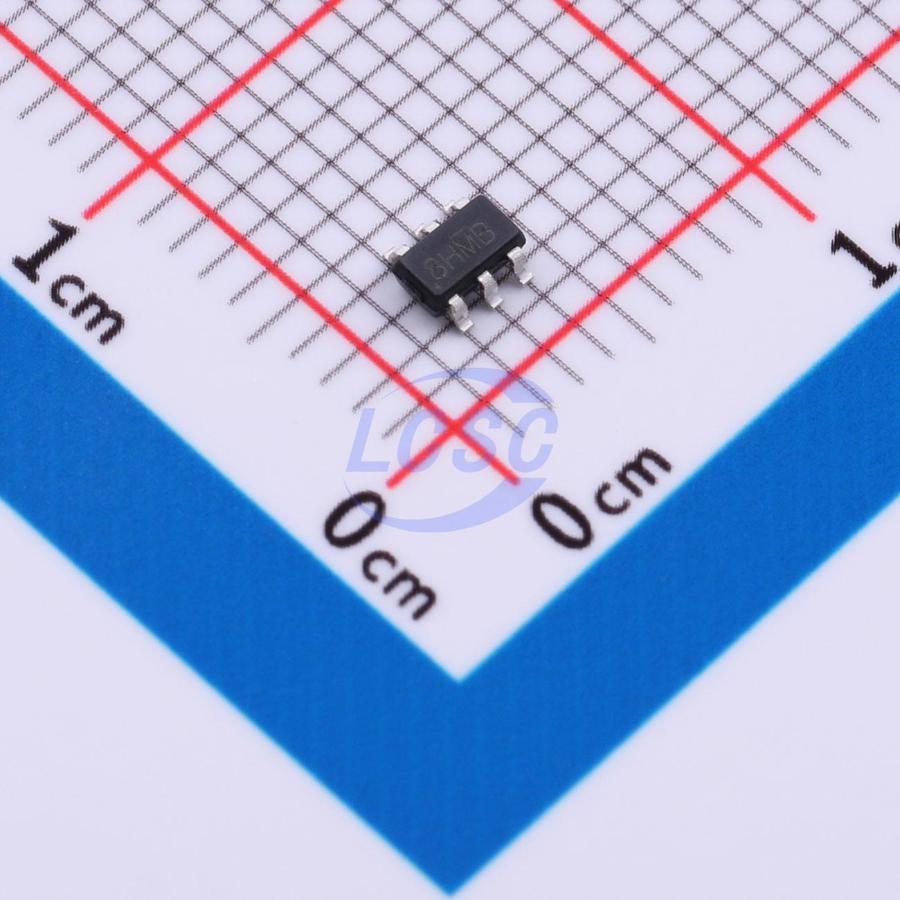

MSKSEMI

MS14010ADDCR

800kHz Step-down type Adjustable 800mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MS14010ADDCR
Store part #: C49375285
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,910 in stock

#C49375285

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹44.76	₹44.76
10+	₹39.33	₹393.30
30+	₹36.94	₹1,108.20
100+	₹33.90	₹3,390.00
500+	₹31.08	₹15,540.00
1,000+	₹30.20	₹30,200.00

Quantity (min 1)

1 × ₹44.76

₹44.76

excl. GST

₹52.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MS14010ADDCR

₹44.76 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 800kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~40V
Switch tube (built-in/external): Built-in
Output Current: 800mA
Quiescent Current: 40uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

MS14010ADDCR is a current-mode monolithic step-down switching regulator. It operates over an input voltage range of 4.5V to 40V, delivers 800mA continuous output current, and integrates two N-channel MOSFETs. The internal synchronous power switches eliminate the need for an external Schottky diode while maintaining high efficiency. Under light-load conditions, the regulator operates at reduced frequency to maintain high efficiency and minimize output ripple. Current-mode control provides tight load transient response and cycle-by-cycle current limiting. The MS14010ADDCR ensures robustness through short-circuit protection, thermal protection, current runaway protection, and input undervoltage lockout. The device is available in a 6-pin SOT23-6 package, requiring minimal external components for a compact solution.

Applications

Distributed power systems
Automotive systems
High-voltage power conversion
Industrial power systems
Battery-powered systems

Key features

4.5V to 40V input voltage range
800mA output current
High efficiency: up to 95%
No Schottky diode required
0.8V reference voltage
Slope compensation current mode control with excellent line and load transient response
Integrated internal compensation
Stable operation with low ESR ceramic output capacitors
Input undervoltage lockout
Short-circuit protection
Thermal shutdown
Inrush current limiting and soft-start
-40°C to +125°C operating temperature range
